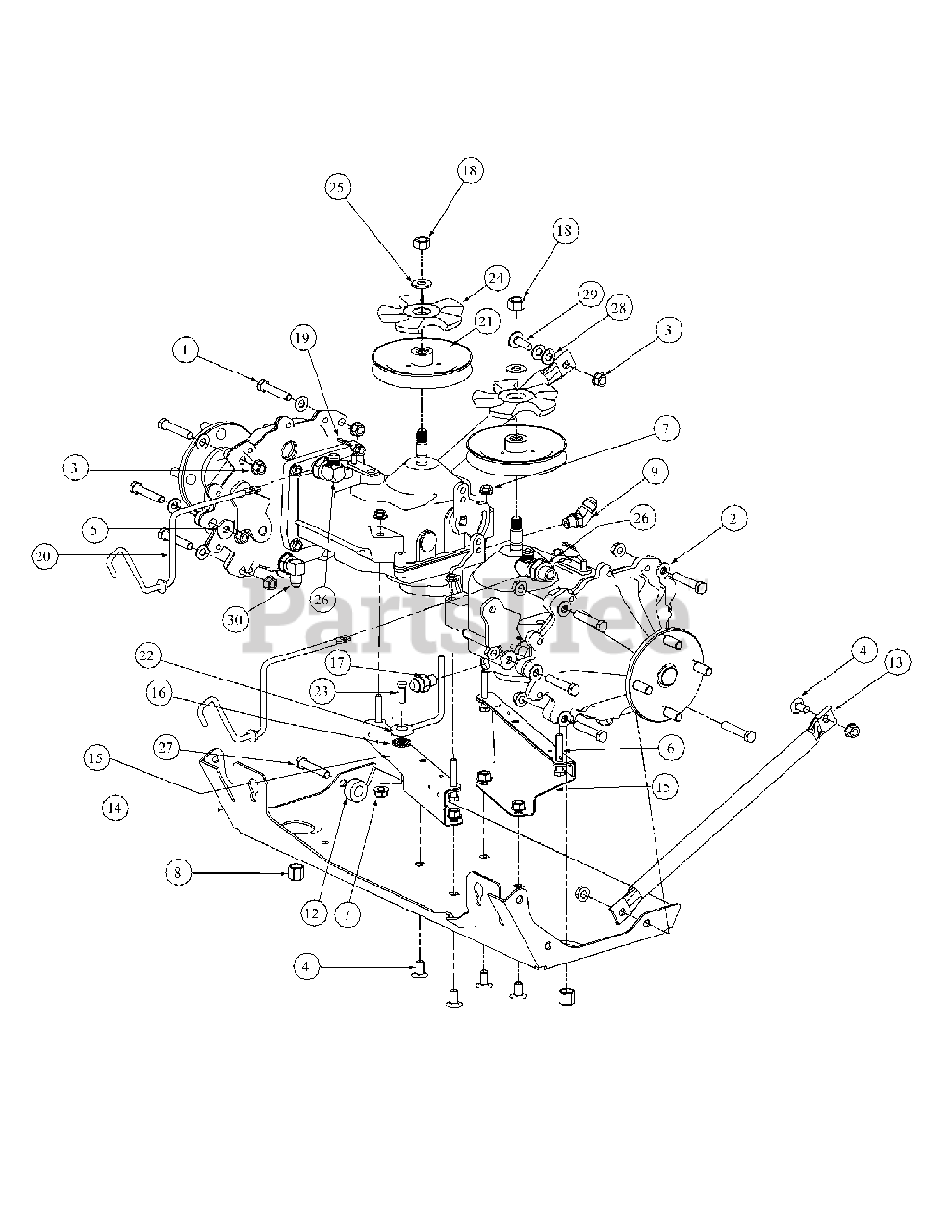

MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Drive Assembly Parts Diagram

Pro Zero-Turn Mower

Drive Assembly Parts Diagram

  • Title
1

MTD 00002528

HHCS, 3/8-16, 2.00

$6.99

$

In Stock, Qty 7

0

2

MTD 00012158

Flat Washer, 3/8, SAE

$4.49

$

In Stock, Qty 9

0

3

MTD 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0258

Flat Washer, .385 x 1.0 OD x .13

$4.49

$

Usually ships in 3-6 days

0

6

MTD 00013198

HHCS, 5/16-18, 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 01001623

Nut, Cap, 3/8

$

$

Not available

9

MTD 01001975

Elbow Fitting, 3/8-1/2, 45 degree

$

$

Not available

12

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

13

MTD 01004345

Strut, Frame

$

$

Not available

14

MTD 01001620

Plate Assembly, Skid

$

$

Not available

15

MTD 01006165

Bracket Assembly, Support Pump

$

$

Not available

16

MTD 01005851

External Tooth Washer
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

17

MTD 01002606

Fitting Connector, 1/2 x 3/8

$

$

Not available

18

MTD 01005191

Nut, 1/2-20, Hex Insert Lock Jam

$

$

Not available

19

MTD 914-0104

Hair Pin, .0721 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

MTD 01003268

Rod, Release, Pump

$

$

Not available

21

MTD 01003732

Pulley, Transmission Hydro, Slotted

$

$

Not available

22

MTD 01005114

Guide, Traction Drive Belt

$13.99

$

Usually ships in 3-6 days

0

23

MTD 01005852

Flat Head Screw, 5/16-18 x 1.00

Note: NLA

$

$

Not available

24

MTD 01005339

Hydro Pulley Fan
(Superseded to 17199-0637)

$90.99

$

Usually ships in 3-6 days

0

25

MTD 00011459

1/2" Flat Washer

$5.99

$

Usually ships in 3-6 days

0

26

MTD 01004542

Fitting Elbow, 3/8 x 3/8

$36.99

$

In Stock, only 1 left!

0

27

MTD 00011861

Hex Cap Screw, 3/8-16, 2.50
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

28

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

MTD 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

30

MTD 01002602

Fitting Elbow, 3/8 x 3/8

$

$

Not available
