MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Brake Assembly Parts Diagram

Pro Zero-Turn Mower

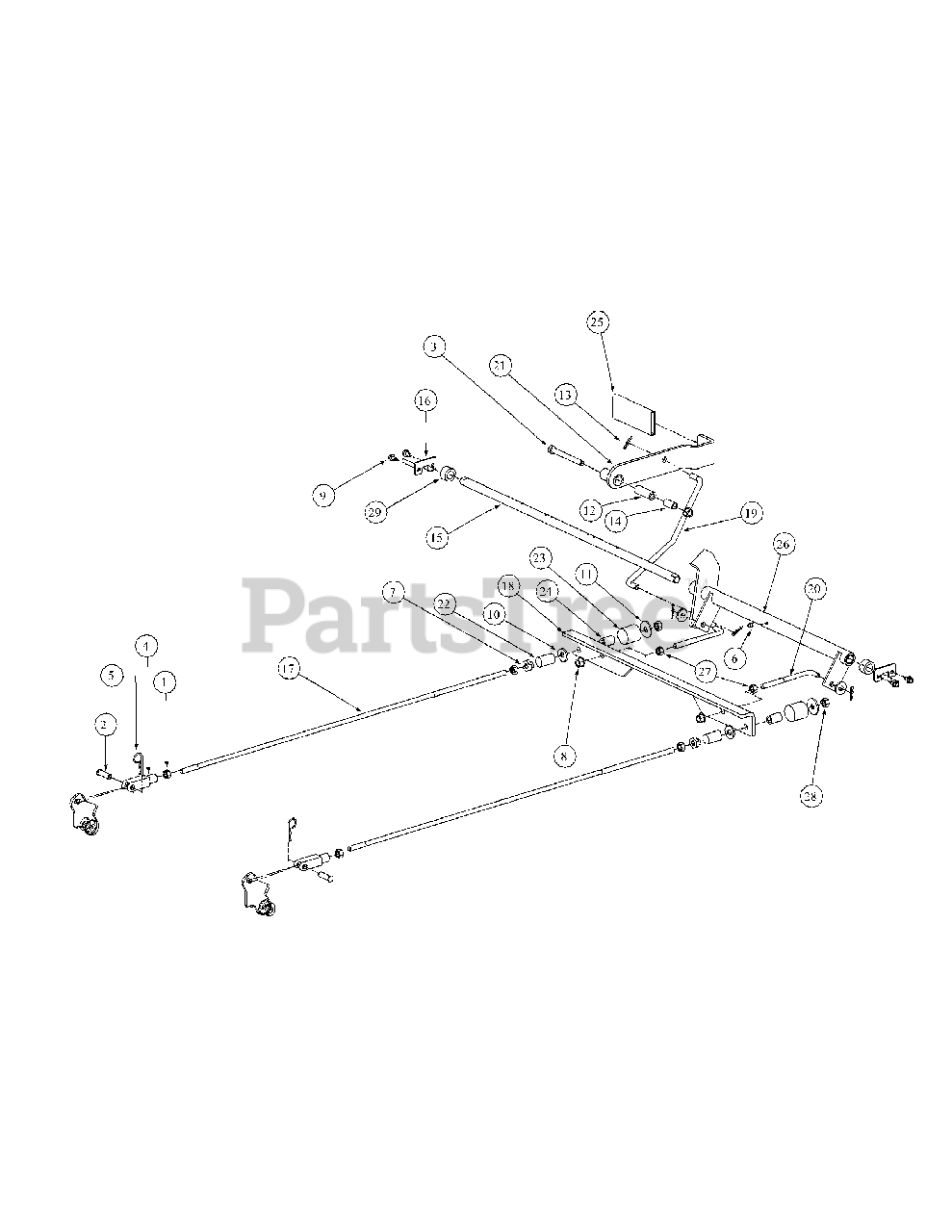

Brake Assembly Parts Diagram

  • Title
1

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00009678

Clevis Pin, 3/8 x 1, 1/8
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

3

MTD 00011888

HHCS, Standard, 3/8-16 x 3-1/2

$3.49

$

In Stock, only 1 left!

0

4

MTD 00021955

Yoke, 3/8-16, Female

$42.99

$

In Stock, only 1 left!

0

5

MTD 00021956

Hair Pin, 3/8"-1/2"
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

6

MTD 737-3004

Grease Fitting, 1/4-28, 90°.

$11.99

$

In Stock, Qty 6

0

7

MTD 01000100

Shoulder Nut

$

$

Not available

8

MTD 00022560

Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0599

Screw, TT, 1/4-20, .5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

11

MTD 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

12

MTD 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

13

MTD 914-0104

Hair Pin, INT .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

14

MTD 750-0434

Spacer, .375 x .50 x 1.02

$6.99

$

Usually ships in 3-6 days

0

15

MTD 01002980

Mounting Shaft, Bellcrank

$

$

Not available

16

MTD 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

17

MTD 01003410

Rod Connector, 3/8 OD 33

$

$

Not available

18

MTD 01003593

Brake Bracket

$

$

Not available

19

MTD 01003415

Rod Brake, Connect To Handle

$

$

Not available

20

MTD 01003417

Rod Connector, 3/8 OD x 5.75

$

$

Not available

21

MTD 01003596

Weldment, Handle Brake

Note: NLA

$

$

Not available

22

MTD 01003574

Brake Spring, Neutral

$10.99

$

Usually ships in 3-6 days

0

23

MTD 01003575

Brake Spring, Force

$

$

Not available

24

MTD 01003576

Brake Hose, Center

$

$

Not available

25

MTD 01003716

Grip, Park Brake

$36.99

$

Usually ships in 3-6 days

0

26

MTD 01003728

Weldment Hub, Brake Bearing
(Superseded to 01003730)

$

$

Not available

26

MTD 01004265

Bearings

$20.99

$

Usually ships in 3-6 days

0

27

MTD 01002511

Jam Nut, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

28

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

MTD 01006350

Shaft collar, .625 ID, 1" OD, .438 Lg

$24.99

$

Usually ships in 3-6 days

0
