MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower B&S Rewind Starter Assembly (Part 1) Parts Diagram

Pro Zero-Turn Mower

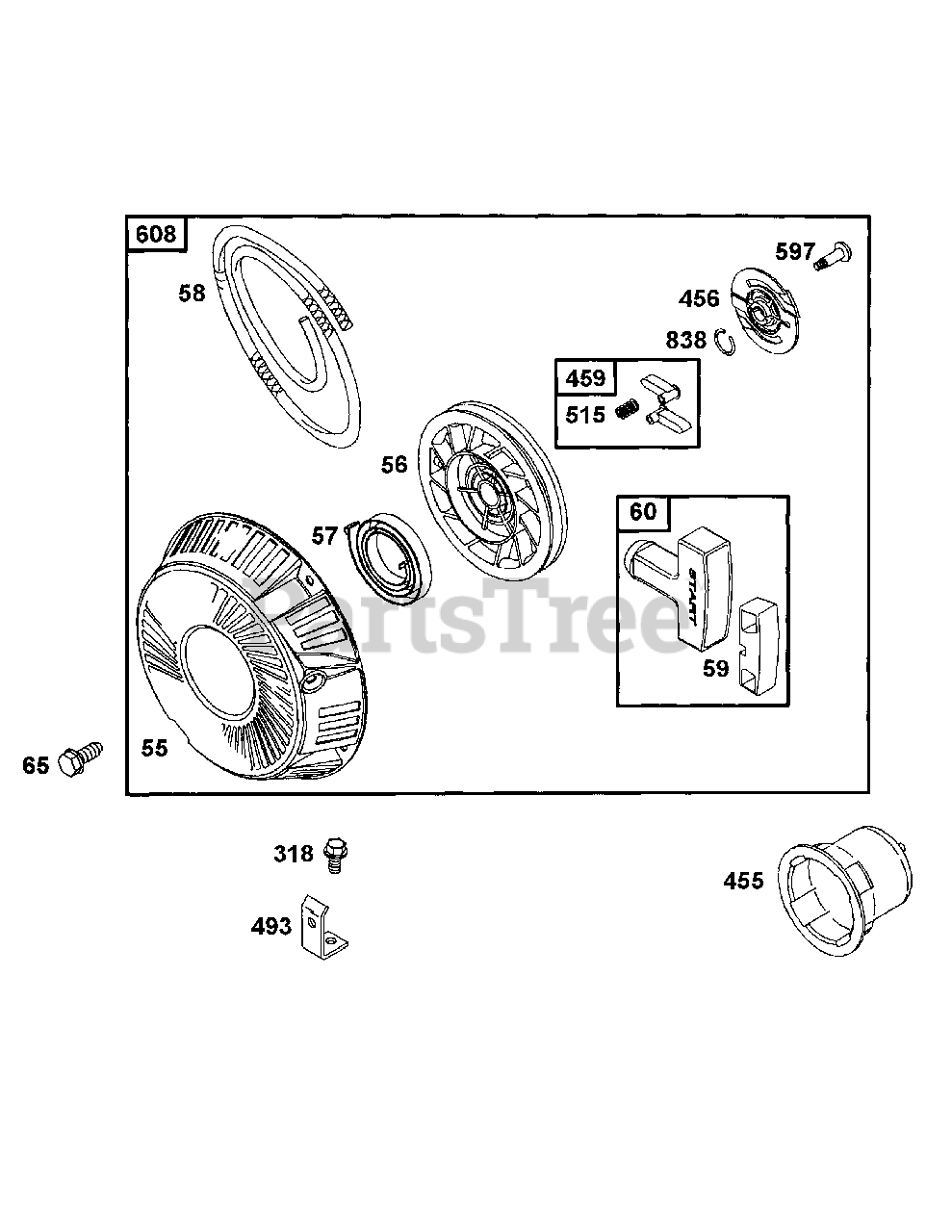

B&S Rewind Starter Assembly (Part 1) Parts Diagram

  • Title

55

MTD BS-691568

J Housing-Rewind Starter

Note: NLA

$103.99

$

Usually ships in 2-12 days

0

56

MTD BS-805949

Pulley-Starter

Note: NLA

$

$

Not available

57

MTD BS-692086

Spring-Rewind Starter

$15.99

$

In Stock, only 1 left!

0

58

MTD BS-66574

Rope-Starter (Cut To Required Length)

$7.49

$

In Stock, Qty 9

0

59

MTD BS-805957

Insert-Grip

Note: NLA

$8.49

$

In Stock, only 4 left!

0

60

MTD BS-808167

Grip-Starter Rope

Note: NLA

$14.99

$

Usually ships in 2-12 days

0

65

MTD BS-692539

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

318

MTD BS-692539

Screw (Mounting Bracket)

$3.49

$

In Stock, Qty 20+

0

455

MTD BS-690864

Cup-Flywheel

Note: NLA

$32.99

$

Usually ships in 3-6 days

0

456

MTD BS-691529

Plate-Pawl Friction

$17.99

$

Usually ships in 2-12 days

0

459

MTD BS-808166

Pawl-Ratchet

$20.99

$

Usually ships in 2-12 days

0

493

MTD BS-691503

Bracket-Mounting

$17.99

$

In Stock, only 1 left!

0

515

MTD BS-691528

Spring-Pawl

Note: NLA

$6.99

$

In Stock, only 1 left!

0

597

MTD BS-690876

Screw (Pawl Friction Plate)

Note: NLA

$6.49

$

Usually ships in 3-6 days

0

608

MTD BS-692102

Starter-Rewind

$142.99

$

In Stock, only 2 left!

0

838

MTD BS-690875

Rewind Starter Ring

Note: NLA

$4.99

$

Usually ships in 3-6 days

0
