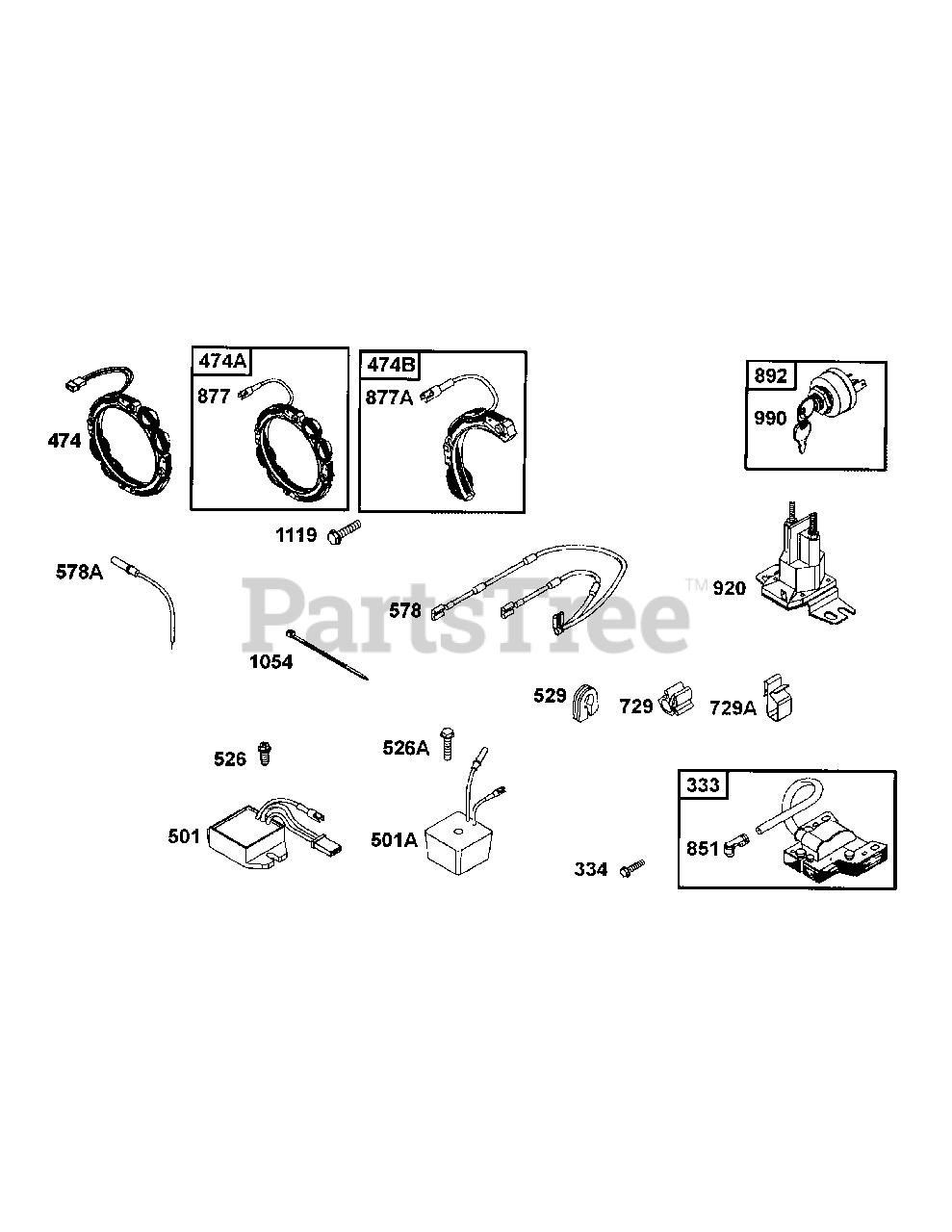

MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower B&S Alternators, Electrical Parts Diagram

Pro Zero-Turn Mower

B&S Alternators, Electrical Parts Diagram

  • Title

333

MTD BS-492341

Armature-Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

MTD BS-692066

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

474B

MTD BS-696578

Alternator
(Superseded to BS-592828)

$124.99

$

Usually ships in 2-12 days

0

474

MTD BS-696458

Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

474A

MTD BS-696457

Alternator
(Superseded to BS-592829)

$102.99

$

Usually ships in 2-12 days

0

501

MTD BS-797375

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

501A

MTD BS-794360

Regulator

$64.99

$

In Stock, only 4 left!

0

526

MTD BS-692067

Screw (Regulator)

$3.99

$

In Stock, Qty 11

0

526A

MTD BS-690717

Screw (Regulator)

Note: NLA

$3.49

$

Usually ships in 3-6 days

0

529

MTD BS-690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

578

MTD BS-844547

Wire Assembly

$17.99

$

In Stock, Qty 20+

0

578A

MTD BS-692306

Socket/Wire Assy

$17.99

$

Usually ships in 2-12 days

0

729A

MTD BS-805827

Clip-Wire

Note: NLA

$4.99

$

Usually ships in 2-12 days

0

729

MTD BS-690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

851

MTD BS-493880S

Terminal-Spark Plug

$3.49

$

In Stock, Qty 20+

0

877A

MTD BS-393814

Wire/connector-Alternator

$18.99

$

In Stock, only 2 left!

0

877

MTD BS-393537

Wire/connector-Alternator

$

$

Not available

892

MTD 925-1396A

Switch-Key

$43.99

$

In Stock, Qty 5

0

920

MTD BS-808727

Solenoid-Starter (Starter Motor)

Note: NLA

$217.99

$

Usually ships in 3-6 days

0

920

MTD BS-691656

Solenoid-Starter

$31.99

$

In Stock, Qty 20+

0

990

MTD BS-392832

Key Set

Note: NLA

$7.99

$

In Stock, Qty 8

0

1054

MTD BS-280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

MTD BS-691552

Screw (Alternator)

Note: NLA

$3.99

$

Usually ships in 2-12 days

0
