MM60 A (MM2) - Honda 60" Mid-Mount Mower, Made in Japan (SN: MM2-1000001 - MM2-9999999) ROTARY BLADE Parts Diagram

60" Mid-Mount Mower, Made in Japan

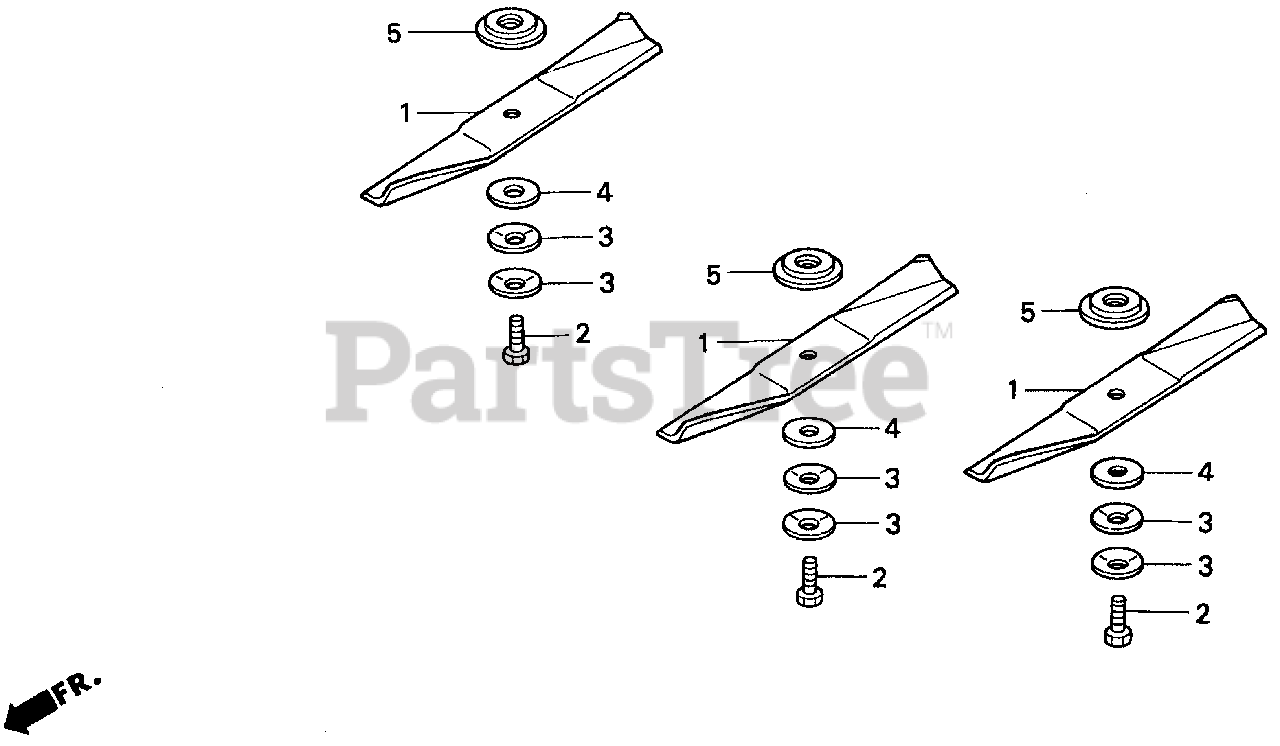

ROTARY BLADE Parts Diagram

  • Title
1

Honda 72531-764-L31

BLADE, ROTARY

$

$

Not available

2

Honda 90102-769-M01

BOLT (5/8 NCX2 HHCS)

$

$

Not available

3

Honda 90505-769-M01

WASHER, CUP (5/8X1-3/4X14)

$

$

Not available

4

Honda 90506-769-M01

WASHER, FLAT (5/8)

$3.99

$

In Stock, Qty 5

0

5

Honda 90507-764-L31

WASHER, SHOULDER

$26.99

$

Usually ships in 3-6 days

0
