MM60 A (MM2) - Honda 60" Mid-Mount Mower, Made in Japan (SN: MM2-1000001 - MM2-9999999) CUTTER HOUSING Parts Diagram

60" Mid-Mount Mower, Made in Japan

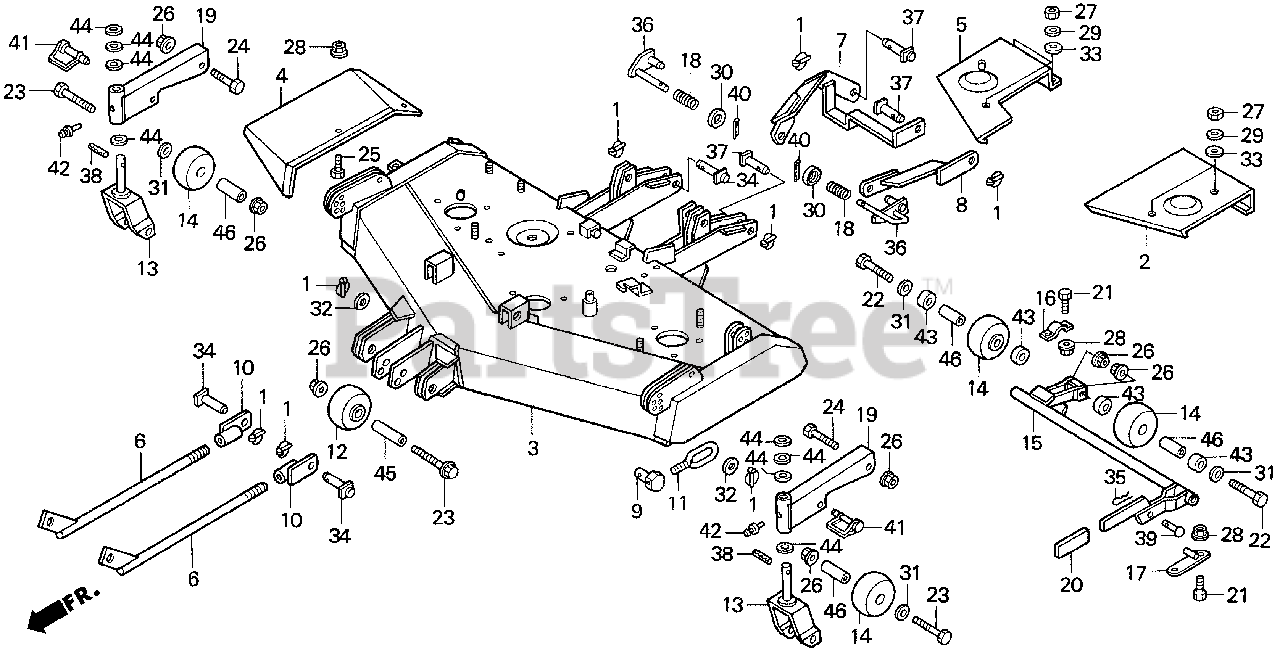

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 50990-769-M01

LINCHPIN ASSY.

$10.99

$

Usually ships in 3-6 days

0

2

Honda 75156-764-L31

COVER, L. BELT

$100.99

$

Usually ships in 3-6 days

0

3

Honda 76110-764-L31

HOUSING, CUTTER (60") (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 76151-764-L31

ADAPTER, DISCHARGE

$386.99

$

Usually ships in 3-6 days

0

5

Honda 76155-764-L31

COVER, R. BELT

$60.99

$

Usually ships in 3-6 days

0

6

Honda 76171-764-L31

LINK, FR. DECK

$191.99

$

Usually ships in 3-6 days

0

7

Honda 76173-764-L31

LINK, R. RR. DECK

$

$

Currently unavailable

8

Honda 76174-764-L31

LINK, L. RR. DECK

$175.99

$

Usually ships in 3-6 days

0

9

Honda 76185-769-M01

PIN, FR. LINK ADJUSTING

$60.99

$

Usually ships in 3-6 days

0

10

Honda 76187-764-L31

PLATE, FR. LINK ADJUSTING

$207.99

$

Usually ships in 3-6 days

0

11

Honda 76228-764-L31

HOOK, CUTTER DECK

$

$

Not available

12

Honda 76235-769-M01

ROLLER, ANTI-SCALP (CENTER)

$

$

Not available

13

Honda 76275-764-L31

ARM, FR. GAUGE ROLLER

$139.99

$

Usually ships in 3-6 days

0

14

Honda 76280-764-L31

ROLLER ASSY., GAUGE

$

$

Not available

15

Honda 76285-764-L31

ARM, GAUGE ROLLER

$722.99

$

Usually ships in 3-6 days

0

16

Honda 76297-764-L31

BRACKET, GAUGE ROLLER ARM A

$78.99

$

Usually ships in 3-6 days

0

17

Honda 76298-764-L31

BRACKET, GAUGE ROLLER ARM B

$48.99

$

Usually ships in 3-6 days

0

18

Honda 76348-764-L31

SPRING, FR. LINK

$5.99

$

Usually ships in 3-6 days

0

19

Honda 76370-764-L31

STAY, GAUGE ROLLER

$

$

Not available

20

Honda 76426-764-L31

GRIP, HEIGHT ADJUST LEVER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90106-764-L31

BOLT (3/8NCX1 HHCS)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 90107-769-M01

BOLT (1/2 NCX4-1/2 HHCS GR5)

$14.99

$

In Stock, only 1 left!

0

23

Honda 90108-764-L31

BOLT (1/2NCX5 HHCS)

$7.99

$

Usually ships in 3-6 days

0

24

Honda 90109-764-L31

BOLT (1/2NCX2-1/4 HHCS)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90111-764-L31

BOLT (3/8NCX1)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 90305-769-M01

NUT (1/2 NC FLANGE LOCK)

$

$

Not available

27

Honda 90310-764-L31

NUT (3/8NC HEX.)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 90311-764-L31

NUT (3/8NC FLANGE HEX. LOCK)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 90501-764-L31

WASHER (3/8 STD LOCK)

$4.49

$

Usually ships in 3-6 days

0

30

Honda 90503-764-L31

WASHER, SPRING GUIDE

$12.99

$

Usually ships in 3-6 days

0

31

Honda 90510-769-M01

WASHER, STD FLAT (1/2)

$2.49

$

In Stock, only 1 left!

0

32

Honda 90512-769-M01

WASHER, STD SAE (5/8)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90514-764-L31

WASHER (3/8 STD FLAT)

$0.99

$

Usually ships in 3-6 days

0

34

Honda 90753-764-L31

PIN, LIFT LINK (16)

$58.99

$

Usually ships in 3-6 days

0

35

Honda 90756-769-M01

PIN, LOCK (19MM)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 90760-764-L31

PIN, RR. LINK

$

$

Currently unavailable

37

Honda 90763-764-L31

PIN, RR. LINK (16)

$34.99

$

Usually ships in 3-6 days

0

38

Honda 90765-764-L31

PIN, SPRING (1/4X1-1/2)

$0.99

$

Usually ships in 3-6 days

0

39

Honda 90766-764-L31

PIN, GAUGE ROLLER ARM

$5.49

$

Usually ships in 3-6 days

0

40

Honda 90768-764-L31

PIN, SPLIT

$2.99

$

Usually ships in 3-6 days

0

41

Honda 90769-764-L31

PIN, GAUGE ROLLER

$10.99

$

Usually ships in 3-6 days

0

42

Honda 90952-764-L31

NIPPLE, GREASE

$2.49

$

Usually ships in 3-6 days

0

43

Honda 91051-764-L31

BEARING, GAUGE ROLLER

$40.99

$

Usually ships in 3-6 days

0

44

Honda 91513-764-L31

WASHER (1-1/16X1-9/16X10GA)

$4.99

$

Usually ships in 3-6 days

0

45

Honda 91551-769-M01

COLLAR, ANTI-SCALP ROLLER

$

$

Not available

46

Honda 91555-764-L31

COLLAR (1/2X3/4X3-3/8)

$23.99

$

Usually ships in 3-6 days

0
