MM52 A - Honda 52" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan MM52 CUTTER DECK LIFT ARM Parts Diagram

52" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan

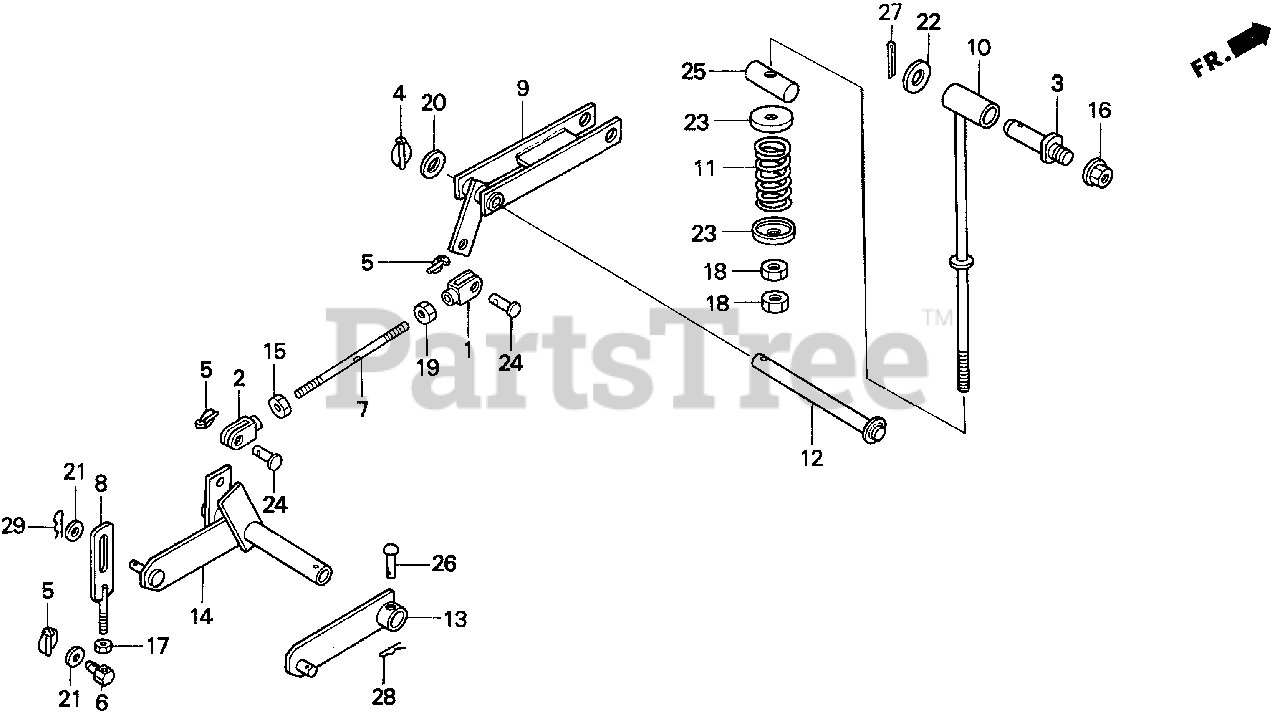

MM52 CUTTER DECK LIFT ARM Parts Diagram

  • Title

1

Honda 50628-769-M01

ROD, R. ADJUSTING LIFT

$108.99

$

Usually ships in 3-6 days

0

2

Honda 50638-769-M01

ROD, L. ADJUSTING LIFT

$86.99

$

Usually ships in 3-6 days

0

3

Honda 50914-769-M01

PIN, LIFT ARM

$

$

Not available

4

Honda 50990-764-L31

LINCHPIN ASSY. (1/4)

$4.49

$

Usually ships in 3-6 days

0

5

Honda 50990-769-M01

LINCHPIN ASSY.

$10.99

$

Usually ships in 3-6 days

0

6

Honda 76185-769-M01

PIN, FR. LINK ADJUSTING

$60.99

$

Usually ships in 3-6 days

0

7

Honda 76315-769-M01

ROD, CUTTER DECK LIFT

$50.99

$

Usually ships in 3-6 days

0

8

Honda 76317-769-M01

PLATE, CUTTER DECK LIFT

$

$

Currently unavailable

9

Honda 76320-769-M01

LINK, CUTTER DECK LIFT

$115.99

$

Usually ships in 3-6 days

0

10

Honda 76325-769-M01

ROD, LIFT LINK

$103.99

$

Usually ships in 3-6 days

0

11

Honda 76439-769-M01

SPRING, LIFT DAMPER

$

$

Currently unavailable

12

Honda 76454-769-M01

SHAFT, LIFT LINK

$136.99

$

Usually ships in 3-6 days

0

13

Honda 76670-769-M01

ARM, R. LIFT

$188.99

$

Usually ships in 3-6 days

0

14

Honda 76680-769-M01

ARM, L. LIFT

$291.99

$

Usually ships in 3-6 days

0

15

Honda 90301-769-M01

NUT, HEX. (0.625 NF PLATED)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90309-764-L31

NUT (5/8 NC HEX. LOCK)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90307-769-M01

NUT (1/2 NC JAM)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90308-769-M01

NUT (5/8 NC HEX.)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90309-769-M01

NUT, HEX. (0.625 NF RH PLATED)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90511-769-M01

WASHER, SAE FLAT (7/8)

$

$

Not available

21

Honda 90512-769-M01

WASHER, STD SAE (5/8)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90513-769-M01

WASHER (3/4X1-3/16X10GA)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90516-769-M01

WASHER (16MM)

$7.49

$

Usually ships in 3-6 days

0

24

Honda 90752-769-M01

PIN, FR. LINK

$

$

Not available

25

Honda 90754-769-M01

PIN, DAMPER SPRING (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 90755-769-M01

PIN, LIFT ARM

$5.49

$

Usually ships in 3-6 days

0

27

Honda 90760-769-M01

PIN, SPLIT (3/32X1-1/2)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 90761-769-M01

PIN, SAFETY (3/32)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 94252-16100

PIN, LOCK (16MM)

$1.49

$

Usually ships in 3-6 days

0
