MM46 K1 A - Honda 46" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan CUTTER HOUSING Parts Diagram

46" Mid-Mount Mower for Honda Multi-Purpose Tractor, Made in Japan

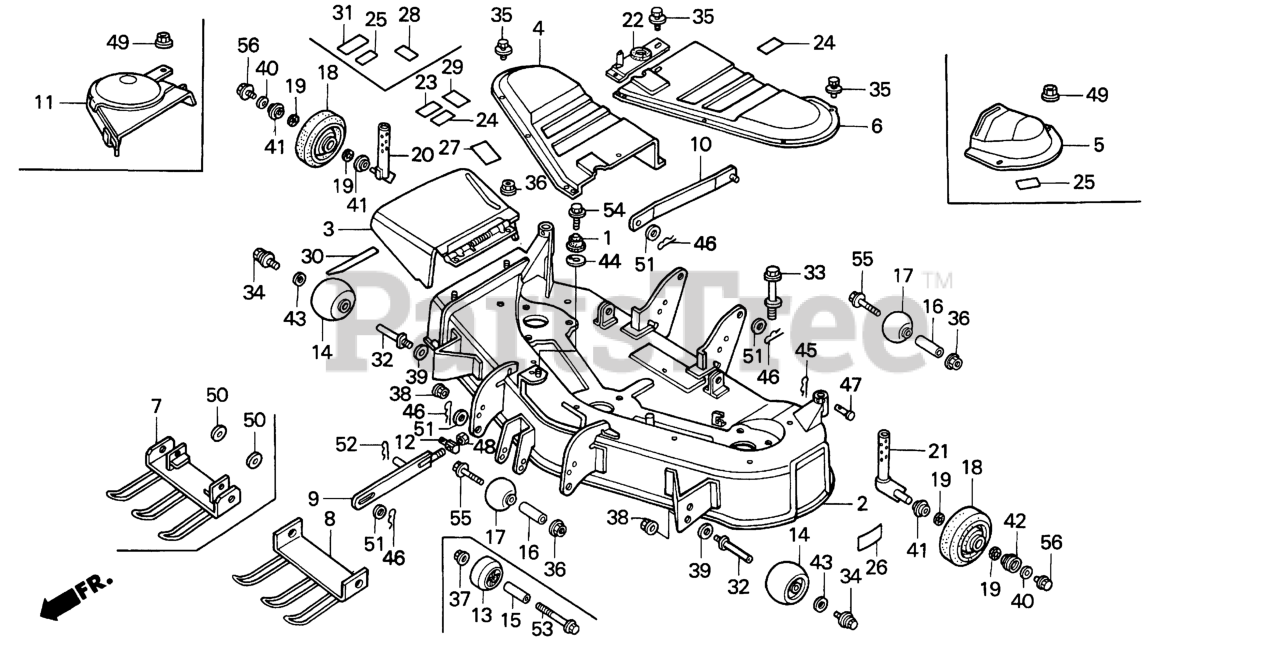

CUTTER HOUSING Parts Diagram

  • Title
1

Honda 60407-ZA7-000

RUBBER (LOWER) Use from Frame SN 1008046.

$17.99

$

In Stock, only 2 left!

0

2

Honda 76110-752-J00

HOUSING, CUTTER

$

$

Not available

3

Honda 76150-758-N01

ADAPTER, DISCHARGE

$

$

Not available

5

Honda 76156-752-J00

COVER, L. BELT

$

$

Not available

7

Honda 76162-752-J00

PLATE, FR. LINK (LOWER)

$

$

Not available

9

Honda 76171-752-J00

LINK, FR. DECK

$

$

Not available

10

Honda 76172-752-830

LINK, RR. DECK

$

$

Not available

11

Honda 76183-752-J00

STOPPER, BELT

$

$

Not available

12

Honda 76185-752-830

PIN, FR. LINK ADJUSTING

$

$

Not available

13

Honda 76231-750-000

ROLLER, ANTI-SCALP

$

$

Not available

14

Honda 76231-752-831

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$

$

Not available

15

Honda 76232-750-000

COLLAR, ANTI-SCALP ROLLER

$6.99

$

Usually ships in 3-6 days

0

18

Honda 76280-752-831

ROLLER ASSY., GAUGE

$

$

Not available

19

Honda 76281-752-830

DUST SEAL, GAUGE ROLLER

$

$

Not available

20

Honda 76285-752-J00

ARM, R. GAUGE ROLLER

$125.99

$

Usually ships in 3-6 days

0

21

Honda 76286-752-J00

ARM, L. GAUGE ROLLER

$

$

Not available

25

Honda 87122-763-A00

LABEL A, WARNING (ENGLISH)

$16.99

$

Usually ships in 3-6 days

0

26

Honda 87129-752-J00

MARK, INCH SIZE (46)

$

$

Not available

28

Honda 87138-752-J00

MARK, HEIGHT ADJUSTING (ENGLISH)

$

$

Not available

31

Honda 87207-758-010

MARK, DANGER

$11.99

$

Usually ships in 3-6 days

0

32

Honda 90107-752-830

SHAFT, ANTI-SCALP ROLLER

$

$

Not available

33

Honda 90109-751-000

BOLT, BELT STOPPER

$5.99

$

Usually ships in 3-6 days

0

34

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

36

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

37

Honda 90304-GE8-003

NUT, U (10MM) (FUSE RASHI)

$4.99

$

In Stock, only 3 left!

0

38

Honda 90306-750-A00

NUT, SELF-LOCK (12MM)

$3.49

$

Usually ships in 3-6 days

0

39

Honda 90403-750-A00

WASHER, THRUST (12MM)

$6.49

$

Usually ships in 3-6 days

0

40

Honda 90405-752-830

SEE PART DETAILS - SUP; WASHER (10.5X27)

$10.99

$

Usually ships in 3-6 days

0

40

Honda 90405-758-L00

SEE PART DETAILS - PRI; WASHER (10.5X27X4)

$10.99

$

Usually ships in 3-6 days

0

41

Honda 90407-752-830

COLLAR, GAUGE ROLLER

$

$

Not available

42

Honda 90408-752-830

COLLAR, GAUGE ROLLER

$

$

Not available

43

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 1 left!

0

44

Honda 90501-752-830

WASHER (40MM)

$

$

Not available

45

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

46

Honda 90702-752-831

PIN, LOCK (14MM)

$3.99

$

Usually ships in 3-6 days

0

47

Honda 90755-708-000

PIN B, WHEEL

$9.49

$

Usually ships in 3-6 days

0

48

Honda 94001-12000-0S

SEE PART DETAILS - PRI; NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

49

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

50

Honda 94101-12800

WASHER, PLAIN (12MM)

$1.99

$

In Stock, Qty 6

0

51

Honda 94101-14800

WASHER, PLAIN (14MM)

$1.99

$

In Stock, Qty 8

0

52

Honda 94252-12000

PIN, LOCK (12MM)

$1.99

$

Usually ships in 3-6 days

0

53

Honda 95800-10110-00

BOLT, FLANGE (10X110)

$

$

Currently unavailable

54

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

$2.49

$

In Stock, Qty 9

0

56

Honda 95900-10016-08

BOLT, FLANGE (10X16) (NA USE ALT:95700-10016-08)

$

$

Currently unavailable
