MM46 A (RAB) - Honda 46" Mid-Mount Mower for Multi-Purpose Tractor (SN: RAB-0000001 - RAB-9999999) TENSIONER ARM Parts Diagram

46" Mid-Mount Mower for Multi-Purpose Tractor

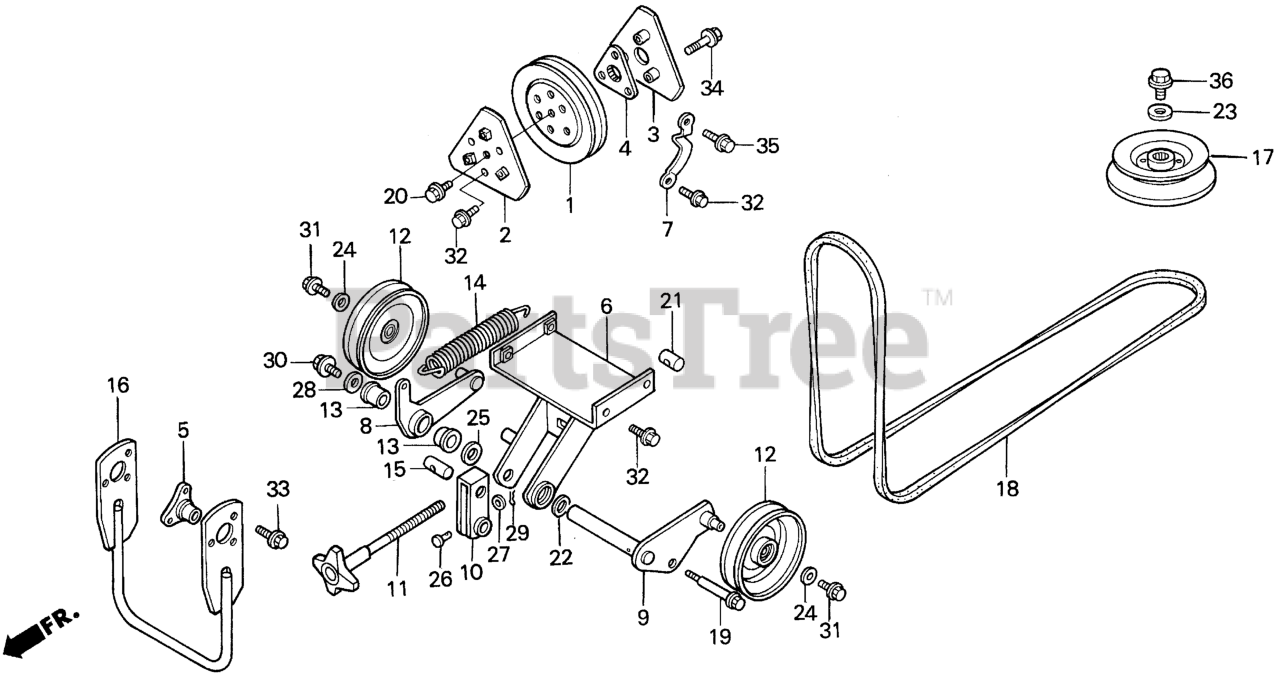

TENSIONER ARM Parts Diagram

  • Title

1

Honda 22415-752-830

SEE PART DETAILS - PRI; PULLEY, DRIVEN

$

$

Not available

2

Honda 22416-752-830

PATCH, PULLEY (A)

$

$

Not available

3

Honda 22419-752-830

PATCH B, PULLEY

$

$

Not available

4

Honda 22426-752-830

BOSS, DRIVEN PULLEY

$

$

Not available

5

Honda 50611-752-900

PIVOT, FR. HITCH

$39.99

$

Usually ships in 3-6 days

0

6

Honda 75510-752-830

BRACKET, TENSIONER

$

$

Currently unavailable

7

Honda 75511-752-830

STOPPER, V-BELT DRIVEN

$

$

Not available

8

Honda 75520-752-830

ARM, TENSIONER (1)

$

$

Not available

9

Honda 75530-752-830

ARM, TENSIONER (2)

$

$

Currently unavailable

10

Honda 75540-750-000

LEVER, TENSIONER

$36.99

$

Usually ships in 3-6 days

0

11

Honda 75550-750-010

SEE PART DETAILS - PRI; KNOB, TENSIONER

$

$

Not available

12

Honda 75560-750-000

PULLEY, TENSIONER

$67.99

$

Usually ships in 3-6 days

0

13

Honda 75572-750-000

BUSH (17X23X19)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 75573-752-830

SPRING, TENSIONER

$

$

Currently unavailable

15

Honda 75574-750-010

SEE PART DETAILS - PRI; PIN, TENSIONER

$

$

Not available

16

Honda 75580-752-830

GUARD, TENSIONER

$

$

Not available

17

Honda 76140-752-831

SEE PART DETAILS - PRI; PULLEY, DRIVEN

$

$

Not available

18

Honda 76182-752-831

V-BELT, DRIVE (LB-89)

$

$

Not available

19

Honda 90104-751-000

BOLT, P.T.O. CLUTCH LEVER

$11.99

$

In Stock, only 1 left!

0

20

Honda 90105-752-630

BOLT, FLANGE (8X20)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90301-750-000

NUT, TENSIONER

$

$

Not available

22

Honda 90401-750-000

COLLAR, TENSIONER BRACKET

$6.49

$

Usually ships in 3-6 days

0

23

Honda 90405-752-830

SEE PART DETAILS - SUP; WASHER (10.5X27)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 90405-758-L00

SEE PART DETAILS - PRI; WASHER (10.5X27X4)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90453-292-010

WASHER, SHIFT DRUM STOPPER

$7.49

$

Usually ships in 3-6 days

0

25

Honda 90532-750-000

WASHER, PLAIN (17.2MM)

$5.49

$

Usually ships in 3-6 days

0

26

Honda 90701-752-831

PIN (6X25)

$5.99

$

Usually ships in 3-6 days

0

27

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

28

Honda 94103-08700

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94251-06400

PIN, LOCK (6MM)

$

$

Not available

30

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

32

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0

33

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

34

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0

35

Honda 95701-10020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X20) (Honda Code 2619153).

$2.99

$

In Stock, only 2 left!

0

36

Honda 95900-10016-08

BOLT, FLANGE (10X16) (NA USE ALT:95700-10016-08)

$

$

Currently unavailable
