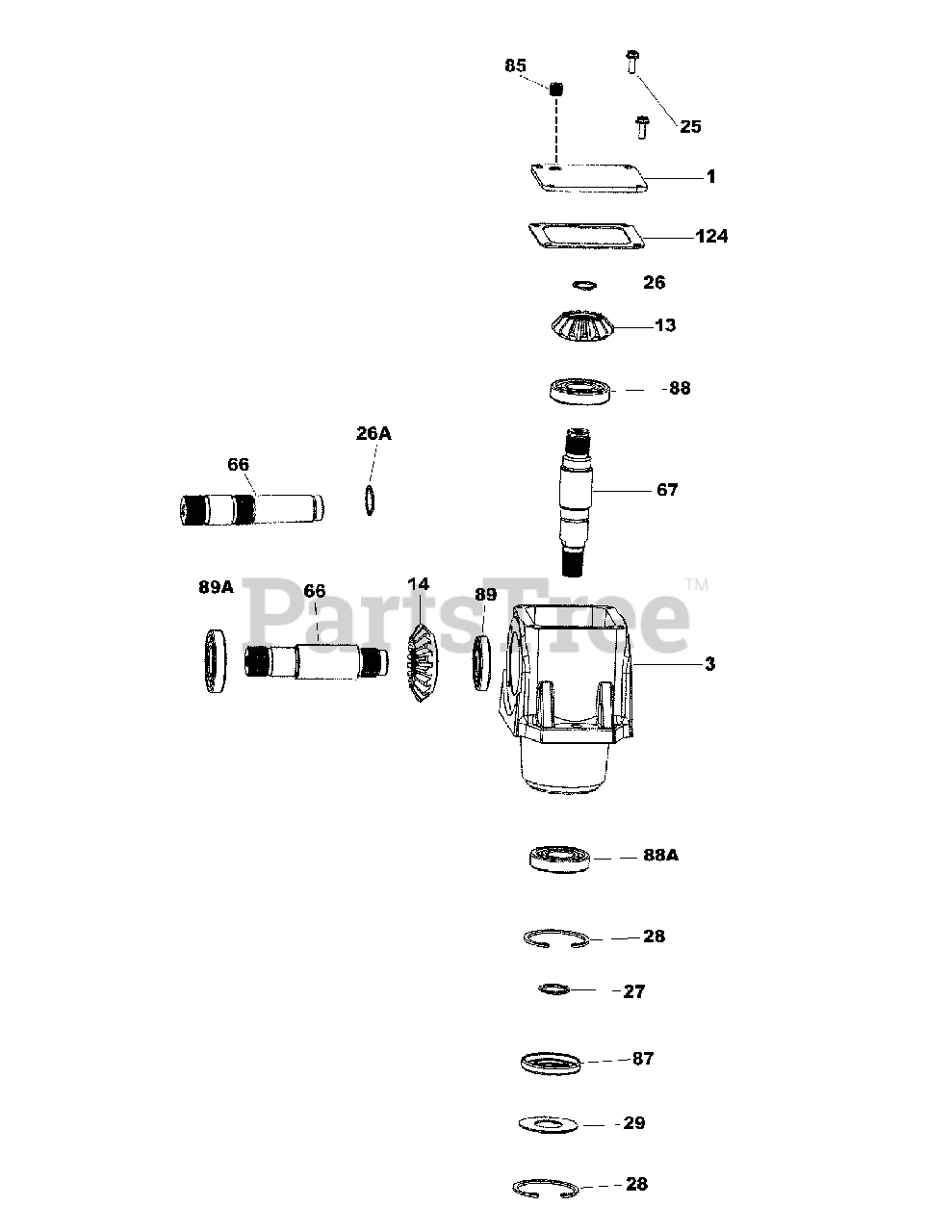

MM 60 RSe (59A40007727) - Cub Cadet Yanmar Tractor Mower Deck Gearbox Drive Parts Diagram

Tractor Mower Deck

Gearbox Drive Parts Diagram

  • Title

1

Cub Cadet TC-772067

Cover

$29.99

$

Usually ships in 3-12 days

0

3

Cub Cadet N/A

Case (cast-iron)

$

$

Currently unavailable

13

Cub Cadet TC-778101A

Bevel Gear 17T STL

$44.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-778210A

Bevel Gear 17T STL

$76.99

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-792025

Screw, 10-24 x 1/2"

$4.49

$

In Stock, Qty 8

0

27

Cub Cadet TC-788018

Retaining Ring .812 X .042 INT

$4.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-788079

Retaining Ring .984 X .042 EXT

$4.49

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-776478

Input Shaft

$61.99

$

Usually ships in 3-12 days

0

67

Cub Cadet TC-776479

Output Shaft

$

$

Not available

85

Cub Cadet TC-792039

Pipe Plug 1/8-27

$4.49

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-788082

Oil Seal 1.125 ID

$22.99

$

In Stock, only 2 left!

0

87A

Cub Cadet TC-788031

Oil Seal .875 ID

$10.99

$

In Stock, only 1 left!

0

88

Cub Cadet TC-780174

Ball Bearing .9838 ID

$32.99

$

In Stock, only 2 left!

0

88A

Cub Cadet TC-780177

Ball Bearing .9838 ID

$64.99

$

In Stock, only 3 left!

0

89

Cub Cadet TC-780024

Ball Bearing .7495 ID

$48.99

$

Usually ships in 3-12 days

0

89A

Cub Cadet TC-780034

Ball Bearing .8745 ID

$48.99

$

In Stock, only 1 left!

0

102

Cub Cadet TC-786029

Cap & Seal (Incl. 87A & 103)

$39.99

$

In Stock, only 1 left!

0

103

Cub Cadet TC-792026

Screw, 1/4-20 x 7/8"

Note: with Loctite patch

$4.49

$

Usually ships in 3-12 days

0

124

Cub Cadet TC-788028

Gasket (Cover)

$5.99

$

In Stock, Qty 20+

0

124A

Cub Cadet TC-788030B

Gasket (Cap)

$5.99

$

In Stock, only 2 left!

0
