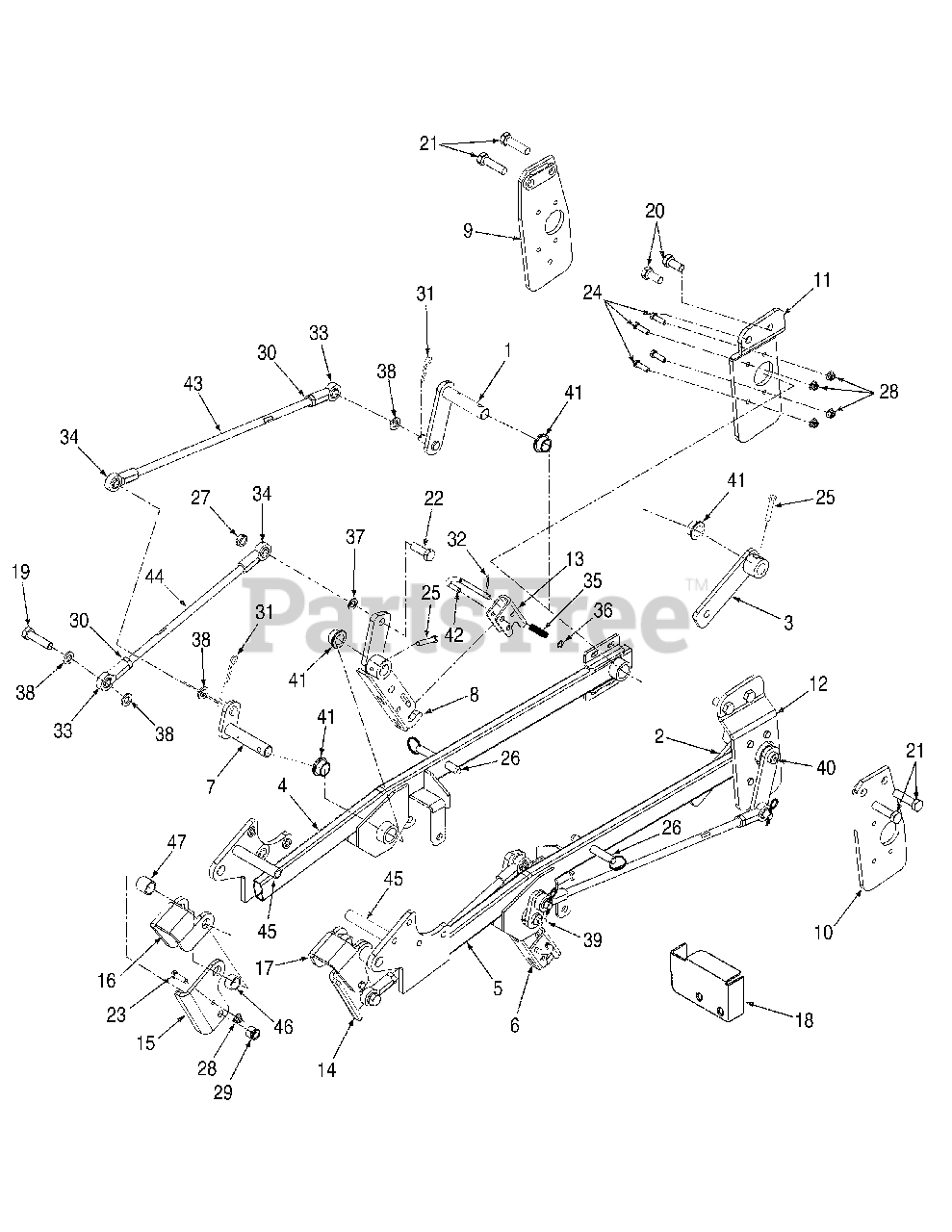

MM 60 RS (59A40009727) - Cub Cadet Yanmar Tractor Mower Deck Subframe Parts Diagram

Tractor Mower Deck

Subframe Parts Diagram

  • Title

1

Cub Cadet YS-603-04420

Shaft, Deck Subframe

$

$

Not available

2

Cub Cadet YS-603-04421

Arm, Front Lift RH

$

$

Not available

3

Cub Cadet YS-603-04422

Arm, Front Lift LH

$

$

Not available

4

Cub Cadet YS-603-04423A

Rail, Subframe LH
(Superseded to 603-04423A)

$

$

Not available

5

Cub Cadet YS-603-04424A

Rail, Subframe RH

$

$

Not available

6

Cub Cadet YS-603-04425

Arm, Rear Lift RH

$

$

Not available

7

Cub Cadet YS-603-04426

Shaft, Rear Lift

$

$

Not available

8

Cub Cadet YS-603-04427

Arm, Rear Lift LH

$

$

Not available

9

Cub Cadet YS-603-04440

Bracket, Loader Adapter LH

$

$

Not available

10

Cub Cadet YS-603-04441

Bracket, Loader Adapter RH

$

$

Not available

11

Cub Cadet YS-703-06026

Bracket, Subframe Mounting LH

$

$

Not available

12

Cub Cadet YS-703-06027

Bracket, Subframe Mounting RH

$

$

Not available

13

Cub Cadet YS-703-06095

Bracket, Lock Pin

$

$

Not available

14

Cub Cadet YS-703-06162

Bracket, Breakaway Lift RH

$

$

Not available

15

Cub Cadet YS-703-06163

Bracket, Breakaway Lift LH

$

$

Not available

16

Cub Cadet YS-703-06164

Bracket, Lift LH

$

$

Not available

17

Cub Cadet YS-703-06165

Bracket, Lift RH

$

$

Not available

18

Cub Cadet YS-703-06201

Cover, Mid PTO

$

$

Not available

19

Cub Cadet YS-710-04129

Screw, Hex Cap, 5/8-11x 2.5
(Superseded to 710-04129)

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YS-710-04697

Screw, Hex Cap, M16-2.0 x 35
(Superseded to 710-04697)

$

$

Not available

21

Cub Cadet YS-710-04700

Screw, Hex Cap, M16-2.0 x 60
(Superseded to 710-04700)

$

$

Not available

22

Cub Cadet YS-710-04706

Screw, Hex Cap, 5/8-11 x 1.75 Gr8
(Superseded to 710-04706)

$

$

Not available

23

Cub Cadet YS-710-04712

Screw, Hex Cap, 3/8-16 x 1.25 Gr2
(Superseded to 710-04712)

$

$

Not available

24

Cub Cadet YS-710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 9

0

25

Cub Cadet YS-710-3144

Screw, Hex Cap, 3/8-16 x 2.0 Gr5
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet YS-711-04845

Pin, .625 Dia.

$

$

Not available

27

Cub Cadet YS-712-0261

Nut, Jam Lock, 5/8-16 GrA
(Superseded to 912-0261)

$

$

Not available

28

Cub Cadet YS-712-04065

Nut, Hex Flange Insert Lock 3/8-16 GrF
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 18

0

29

Cub Cadet YS-712-3016

Nut, Hex Insert Lock, 5/8-11 Gr5
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

30

Cub Cadet YS-712-3056

Nut, Hex Jam, 5/8-18 Gr5
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet YS-714-04003

Pin, Internal Cotter, .125 x 2.5 Lg
(Superseded to 714-04003)

$8.49

$

Usually ships in 3-6 days

0

32

Cub Cadet YS-714-0474

Pin, Cotter, .125 x .75
(Superseded to 914-0474)

$

$

Not available

33

Cub Cadet YS-723-04050

Ball Joint, .625 ID x 5/8-18

$

$

Not available

34

Cub Cadet YS-723-04061

Ball Joint, .625 ID x 5/8-18 LH Thrd.

$

$

Not available

35

Cub Cadet YS-732-0306A

Spring, Compression, .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

36

Cub Cadet YS-736-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 936-0140)

$

$

Not available

37

Cub Cadet YS-736-0290

Washer, Flat, .625 x 1.0 x .067 HT
(Superseded to 736-0290)

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet YS-736-0366

Washer, Flat, .64 x 1.12 x .125
(Superseded to 736-0366)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet YS-737-04091

Fitting, Lube
(Superseded to 737-04091)

$7.99

$

Usually ships in 3-6 days

0

40

Cub Cadet YS-737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet YS-741-0558

Bearing, Flange, 1.0 x 1.125 x 1.62
(Superseded to 741-04488)

$9.49

$

In Stock, only 4 left!

0

42

Cub Cadet YS-747-04702

Rod, Deck Release

$

$

Not available

43

Cub Cadet YS-747-04831

Rod, 23.735 Lg LH/RH Thrd.

$

$

Not available

44

Cub Cadet YS-747-04832

Rod, 15.25 Lg LH/RH Thrd.

$

$

Not available

45

Cub Cadet YS-750-04858

Spacer, .625 x 4.95

$

$

Not available

46

Cub Cadet YS-750-04877

Spacer, 1.25 x .625

$

$

Not available

47

Cub Cadet YS-750-04878A

Spacer, 1.25 x 1.25

$

$

Not available
