MM 60 RS (59A40009727) - Cub Cadet Yanmar Tractor Mower Deck Mower Deck Parts Diagram

Tractor Mower Deck

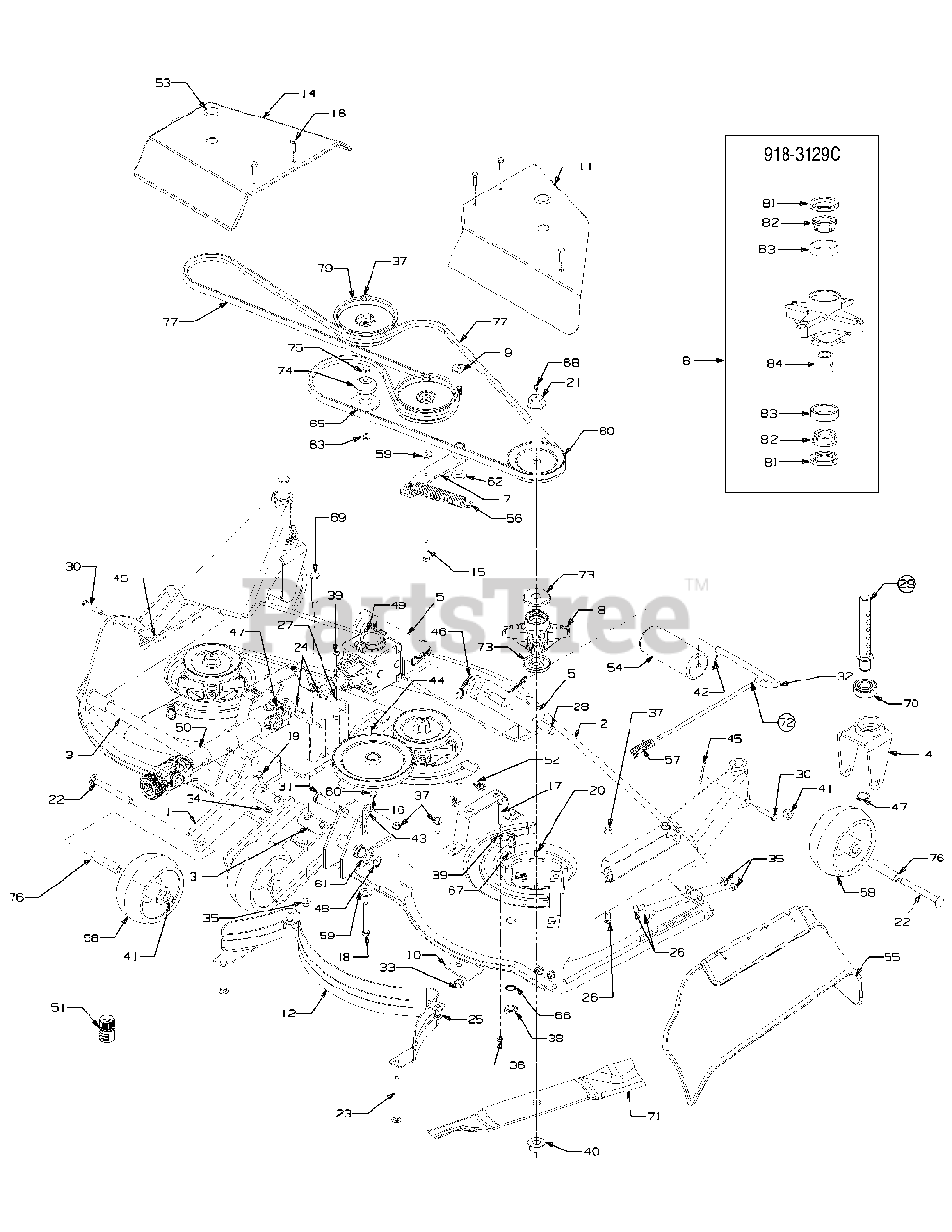

Mower Deck Parts Diagram

  • Title

1

Cub Cadet YS-603-04413

BRACKET, DECK WHEEL

$

$

Not available

2

Cub Cadet YS-603-04416

DECK HOUSING

$

$

Not available

3

Cub Cadet YS-603-04418

HANDLE, WHEEL HEIGHT ADJUSTMENT
(Superseded to 603-04418)

$

$

Not available

4

Cub Cadet YS-603-04419

BRACKET, CASTER WHEEL YOKE

$

$

Not available

5

Cub Cadet YS-603-04430

LINK, FRONT LIFT

$

$

Not available

6

Cub Cadet YS-603-0662

GUARD, DECK
(Superseded to 603-0662)

$92.99

$

Usually ships in 3-6 days

0

7

Cub Cadet YS-603-0848A

BRACKET, IDLER

$

$

Not available

8

Cub Cadet YS-918-3129C

SPINDLE ASSEMBLY
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

9

Cub Cadet YS-638-04012A

BOLT ASSEMBLY, SHOULDER
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

10

Cub Cadet YS-703-05658

PLATE, IDLER SUPPORT

$

$

Not available

11

Cub Cadet YS-703-06199

COVER, BELT RH

$

$

Not available

12

Cub Cadet YS-703-3248

BAFFLE, DECK
(Superseded to 703-3248)

$146.99

$

Usually ships in 3-6 days

0

13

Cub Cadet YS-703-3250

BRACKET, CHUTE DEFLECTOR
(Superseded to 703-3250)

$

$

Not available

14

Cub Cadet YS-703-3273

COVER, BELT LH
(Superseded to 703-3273)

$

$

Not available

15

Cub Cadet YS-710-0347

SCREW, HEX CAP, 3/8-19 X 1.75 GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet YS-710-0376

SCREW, HEX CAP, 5/16-18 X 1/0 GR5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet YS-710-0395

SCREW, HEX CAP, 5/16-18 X 2.25 GR5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

18

Cub Cadet YS-710-0521

SCREW, HEX CAP, 3/8-16 X 3.0 GR8
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 10

0

19

Cub Cadet YS-710-0805

SCREW, HEX CAP, 5/16-18 X 1.5 GR5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet YS-710-1260A

SCREW, HEX WASH. HD TAPP 5/16-18 X .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet YS-710-1336A

BOLT, SPINDLE, 3/4-16 X 4.25
(Superseded to 710-1336A)

$24.99

$

In Stock, Qty 8

0

22

Cub Cadet YS-710-1638

SCREW, CARRIAGE 1/2-13 X 4.5 GR5
(Superseded to 710-1638)

$10.99

$

In Stock, Qty 10

0

23

Cub Cadet YS-710-1649

SCREW, CARRIAGE 3/8-16 X 4.50 GR5
(Superseded to 710-1649)

$17.99

$

In Stock, only 2 left!

0

24

Cub Cadet YS-710-1880

SCREW, HX PATCH, 5/16-18 X .75 GR5
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

25

Cub Cadet YS-710-3168

BOLT, CARRIAGE, 3/8-16 X 1.0
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet YS-710-3178

BOLT, CARRIAGE, 3/8-16 X .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet YS-710-3251

SCREW, SOCKET HD, 5/16-18 X 1.75 GR5
(Superseded to 710-3251)

$5.99

$

In Stock, only 2 left!

0

28

Cub Cadet YS-711-04715

PIN, CLEVIS, .625 X 1.5

$

$

Not available

29

Cub Cadet YS-711-04729

SHAFT, GAUGE WHEEL

$

$

Not available

30

Cub Cadet YS-711-0679A

PIN, CLEVIS, 3/8 X 2.015
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

31

Cub Cadet YS-711-1643

PIN, CLEVIS, 3/4 X 2.5
(Superseded to 711-1643)

$23.99

$

Usually ships in 3-6 days

0

32

Cub Cadet YS-711-3314

PIN, ROLLER, 1/2 X 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

33

Cub Cadet YS-712-0290

NUT, HEX LOCK, 7/16-14
(Superseded to 712-0290)

$4.99

$

In Stock, Qty 11

0

34

Cub Cadet YS-712-04063

NUT, HEX INSERT FLANGE LOCK, 5/16-18 GR5
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet YS-712-04065

NUT, HEX INSERT FLANGE LOCK, 3/8-16 GRF
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet YS-712-0429

NUT, HEX INSERT LOCK, 5/16-18 GR5
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet YS-712-0431

NUT, HEX FLANGE LOCK, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet YS-712-0641

NUT, HEX, M16-1.5
(Superseded to 912-0641)

$6.49

$

In Stock, Qty 7

0

39

Cub Cadet YS-712-3046

NUT, HEX JAM LOCK, 5/16-18
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet YS-712-3078

NUT, HEX FLANGE LOCK, 3/4-16 GR8
(Superseded to 712-3078)

$9.99

$

In Stock, Qty 20+

0

41

Cub Cadet YS-712-3083

NUT, HEX INSERT LOCK, 1/2-12 GRB
(Superseded to 712-3083)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet YS-714-0115

PIN, COTTER, 1/8 X 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet YS-714-0117

PIN, INTERNAL COTTER
(Superseded to 714-0117)

$4.49

$

In Stock, Qty 6

0

44

Cub Cadet YS-714-0128

KEY, SQUARE, 1/4 X 1.0
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

45

Cub Cadet YS-714-0147

PIN, INTERNAL COTTER
(Superseded to 714-0147)

$4.99

$

In Stock, Qty 6

0

46

Cub Cadet YS-714-04003

PIN, INTERNAL COTTER
(Superseded to 714-04003)

$8.49

$

Usually ships in 3-6 days

0

47

Cub Cadet YS-716-0102

RING, SNAP
(Superseded to 916-0102)

$5.49

$

In Stock, Qty 20+

0

48

Cub Cadet YS-716-0111

RING, EXTERNAL RETAINING
(Superseded to 716-0111)

$6.99

$

In Stock, Qty 8

0

49

Cub Cadet YS-717-04415

GEARBOX

$

$

Not available

50

Cub Cadet YS-717-04422

SHAFT, DECK DRIVE

$

$

Not available

50

Cub Cadet YS-759-04219

Repair Kit, Yoke Lock
(Superseded to 759-04219)

$97.99

$

Usually ships in 3-6 days

0

51

Cub Cadet YS-721-04041

ADAPTER, NOZZLE
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

52

Cub Cadet YS-726-0211

NUT, SPEED, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

53

Cub Cadet YS-726-3045

BUTTON, PLUG
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 7

0

54

Cub Cadet YS-731-3005

ROLLER, FRONT
(Superseded to 731-3005)

$28.99

$

In Stock, Qty 20+

0

55

Cub Cadet YS-731-3257

DEFLECTOR, CHUTE
(Superseded to 731-3257)

$83.99

$

Usually ships in 3-6 days

0

56

Cub Cadet YS-732-0850

SPRING, EXTENSION, 1.0 X 6.14
(Superseded to 932-0850)

$24.99

$

In Stock, only 4 left!

0

57

Cub Cadet YS-732-0939

SPRING, TORSION
(Superseded to 732-0939)

$12.99

$

Usually ships in 3-6 days

0

58

Cub Cadet YS-734-04314

WHEEL, CASTE

$

$

Not available

59

Cub Cadet YS-736-0258

WASHER, FLAT, .385 X 1.0 X .135
(Superseded to 736-0258)

$4.49

$

In Stock, only 1 left!

0

60

Cub Cadet YS-736-0275

WASHER, FLAT, .344 X .688 X .065
(Superseded to 936-0275)

$

$

Not available

61

Cub Cadet YS-736-0291

WASHER, FLAT, .88 X 1.38 X .125 HT
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

62

Cub Cadet YS-736-0322

WASHER, FLAT, .45 X 1.25 X .164 HT
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

63

Cub Cadet YS-736-0354

WASHER, FLAT, .39 X .75 X .105
(Superseded to 736-0354)

$3.99

$

Usually ships in 3-6 days

0

64

Cub Cadet YS-736-0362

WASHER, FLAT, 033 X 1.25 X .06 HT
(Superseded to 736-0362)

$4.49

$

In Stock, Qty 8

0

65

Cub Cadet YS-736-04167

WASHER, FLAT, 1.063 X 2.5 X .16
(Superseded to 736-04167)

$14.99

$

Usually ships in 3-6 days

0

66

Cub Cadet YS-736-0760

WASHER, LOCK
(Superseded to 936-0760)

$4.49

$

In Stock, Qty 13

0

67

Cub Cadet YS-737-04003C

NOZZLE, DECK WASH
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

68

Cub Cadet YS-737-3000

FITTING, LUBE
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

69

Cub Cadet YS-738-3056

BOLT, SHOULDER, .496 X 2.5:3/8-16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

70

Cub Cadet YS-741-0941

BEARING, BALL

$

$

Not available

71

Cub Cadet YS-759-04013

BLADE, HIGH LIFT
(Superseded to 759-04013)

$51.99

$

In Stock, Qty 6

0

72

Cub Cadet YS-747-3384

ROD, CHUTE DEFLECTOR
(Superseded to 747-3384)

$27.99

$

In Stock, only 1 left!

0

73

Cub Cadet YS-748-3065A

SPACER, SPINDLE
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

74

Cub Cadet YS-748-3087

SPACER, IDLER
(Superseded to 748-3087)

$39.99

$

Usually ships in 3-6 days

0

75

Cub Cadet YS-750-0535

SPACER, .38 X .625 X .21
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

76

Cub Cadet YS-750-3222

AXLE, CASTER WHEEL
(Superseded to 750-3222)

$27.99

$

In Stock, Qty 6

0

77

Cub Cadet YS-754-3103

V BELT, B SECTION X 133
(Superseded to 954-3103)

$102.99

$

In Stock, only 2 left!

0

78

Cub Cadet YS-756-04292

PULLEY, DRIVE

$

$

Not available

79

Cub Cadet YS-756-3062

PULLEY, IDLER 5.0
(Superseded to 756-3062)

$40.99

$

In Stock, Qty 13

0

80

Cub Cadet YS-756-3096

PULLEY, SPINDLE
(Superseded to 756-3096)

$40.99

$

In Stock, Qty 10

0

81

Cub Cadet YS-721-3018A

SEAL, OIL
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

82

Cub Cadet YS-741-04129

BEARING, CONE
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

83

Cub Cadet YS-741-04130

CUP, BEARING
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

84

Cub Cadet YS-750-04409

SPACER, BEARING
(Superseded to 750-04409)

$20.99

$

Usually ships in 3-6 days

0
