ML 761650 (1696063) - Murray 30" Snow Thrower, 16.5hp, Canada (2011) Discharge Chute Group Parts Diagram

30" Snow Thrower, 16.5hp, Canada

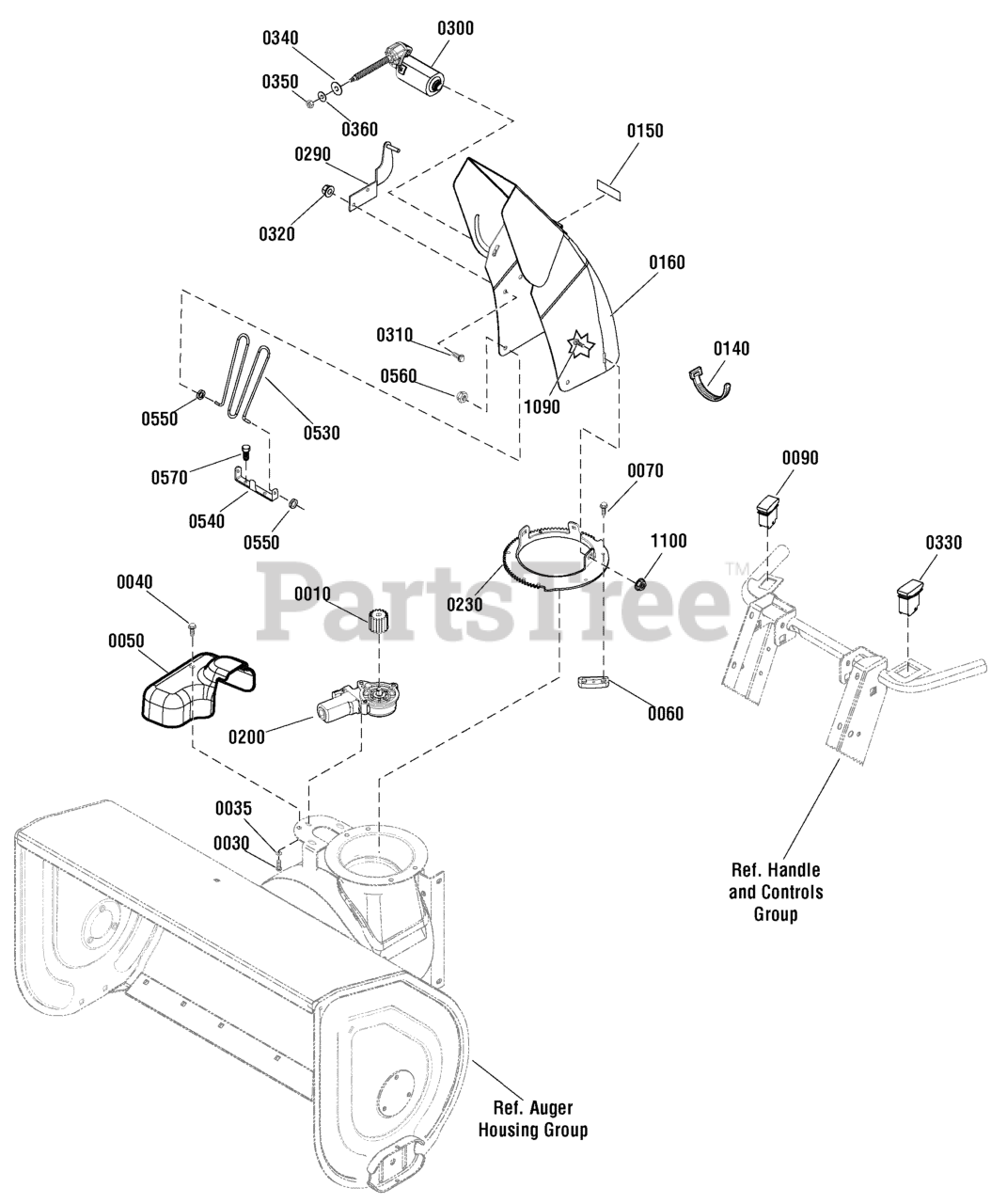

Discharge Chute Group Parts Diagram

  • Title
0010

$17.99

$

In Stock, only 3 left!

0

0030

Murray 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Murray 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 14

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0090

Murray 1752240YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$82.99

$

In Stock, Qty 12

0

0140

Murray 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0150

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0

0160

Murray 1738231BIYP

CHUTE, Tall

$125.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 7

0

0230

Murray 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0290

Murray 1738267BMYP

BRACKET, Weld Stud

$30.99

$

Usually ships in 2-12 days

0

0300

Murray 1737941YP

MOTOR, Chute Deflector

$143.99

$

In Stock, Qty 5

0

0310

Murray 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Murray 1960694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1737379YP

SWITCH, Chute Deflector
(Superseded to 1687905)

$82.99

$

In Stock, Qty 14

0

0340

Murray 1738244YP

WASHER, Rubber

$4.49

$

In Stock, Qty 10

0

0350

Murray 1738245YP

NUT, LH
(Superseded to 703143)

$3.49

$

In Stock, Qty 5

0

0360

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0530

Murray 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1737683YP

BRACKET, Chute Guard
(Superseded to 1752883YP)

$15.99

$

Usually ships in 2-12 days

0

0550

$4.49

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, 3/16

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

1090

Murray 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

1100

Murray 1960685SM

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0
