ML 761650 (1696063) - Murray 30" Snow Thrower, 16.5hp, Canada (2011) Auger Drive Group Parts Diagram

30" Snow Thrower, 16.5hp, Canada

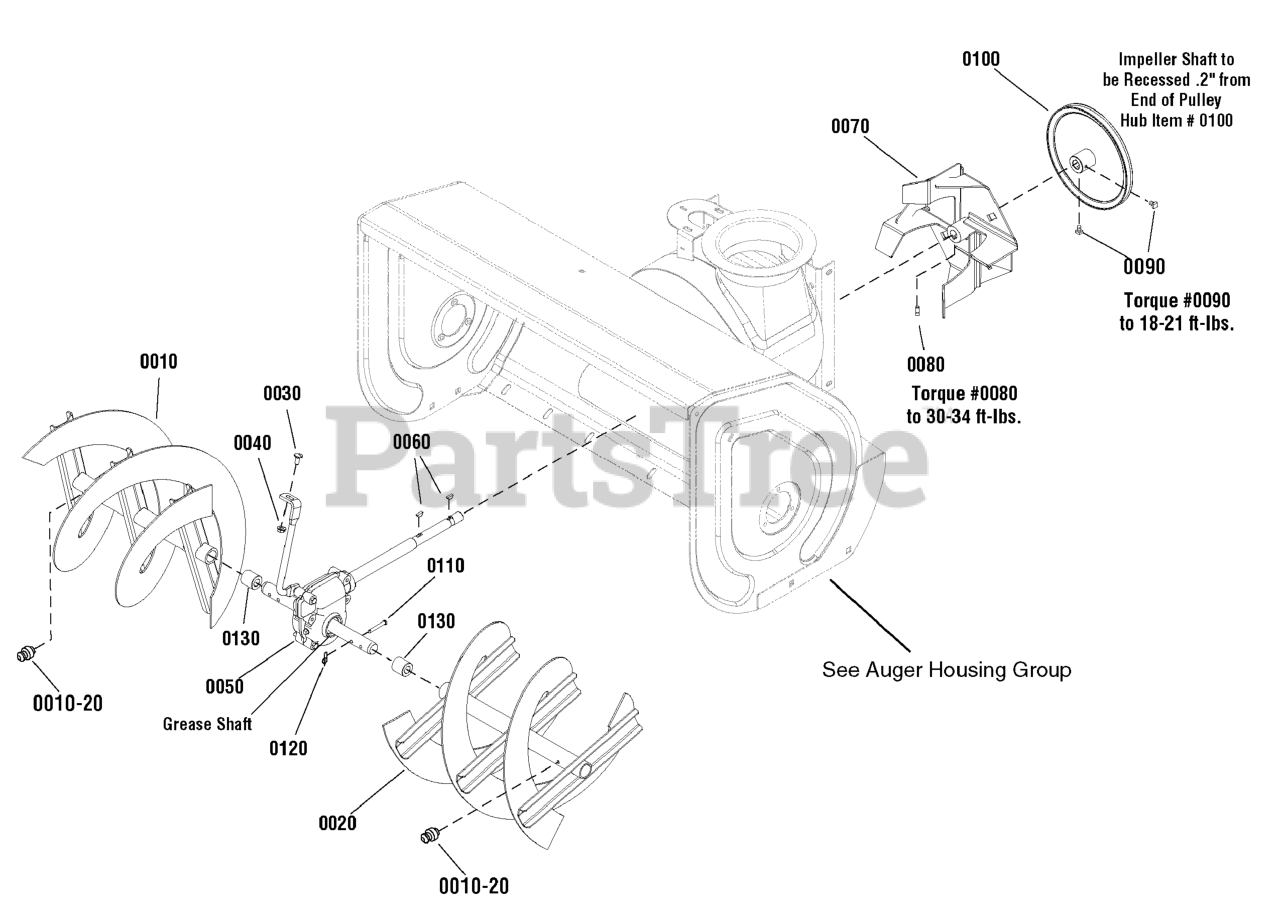

Auger Drive Group Parts Diagram

  • Title

0010

Murray 1737078BJYP

AUGER ASSEMBLY, RH

Note: (Includes Ref. No. 0010-20)

$142.99

$

In Stock, only 1 left!

0

0020

Murray 1737079BJYP

AUGER ASSEMBLY, LH

Note: (Includes Ref. No. 0010-20)

$173.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0030

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1732303SM

GEAR BOX ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

0060

Murray 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

0070

Murray 1612187BMYP

IMPELLER

$201.99

$

In Stock, only 1 left!

0

0080

Murray 1960474SM

SCREW, Set Square Head, 3/8-16 x 1/2, G8

$5.99

$

In Stock, Qty 5

0

0090

Murray 1928721SM

SCREW, Set Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, only 2 left!

0

0100

Murray 1732185SM

PULLEY, 8.4 OD x 3/4 ID
(Superseded to 1752220YP)

$87.99

$

In Stock, only 4 left!

0

0110

Murray 1739295YP

PIN, Shear, 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1739292YP

PIN, Cotter, Self Locking
(Superseded to 703060)

$4.49

$

In Stock, Qty 12

0

0130

Murray 1733406SM

SPACER, 1" Lg

$5.49

$

In Stock, only 2 left!

0

0200

Murray 1739821YP

KIT, Shear Pin

Note: (Includes Ref. Nos. 0110 & 0120)

$13.99

$

Usually ships in 2-12 days

0
