ML 761650 (1695912) - Murray 30" Snow Thrower, 16.5hp, Canada (2010) Handles and Controls Group Parts Diagram

30" Snow Thrower, 16.5hp, Canada

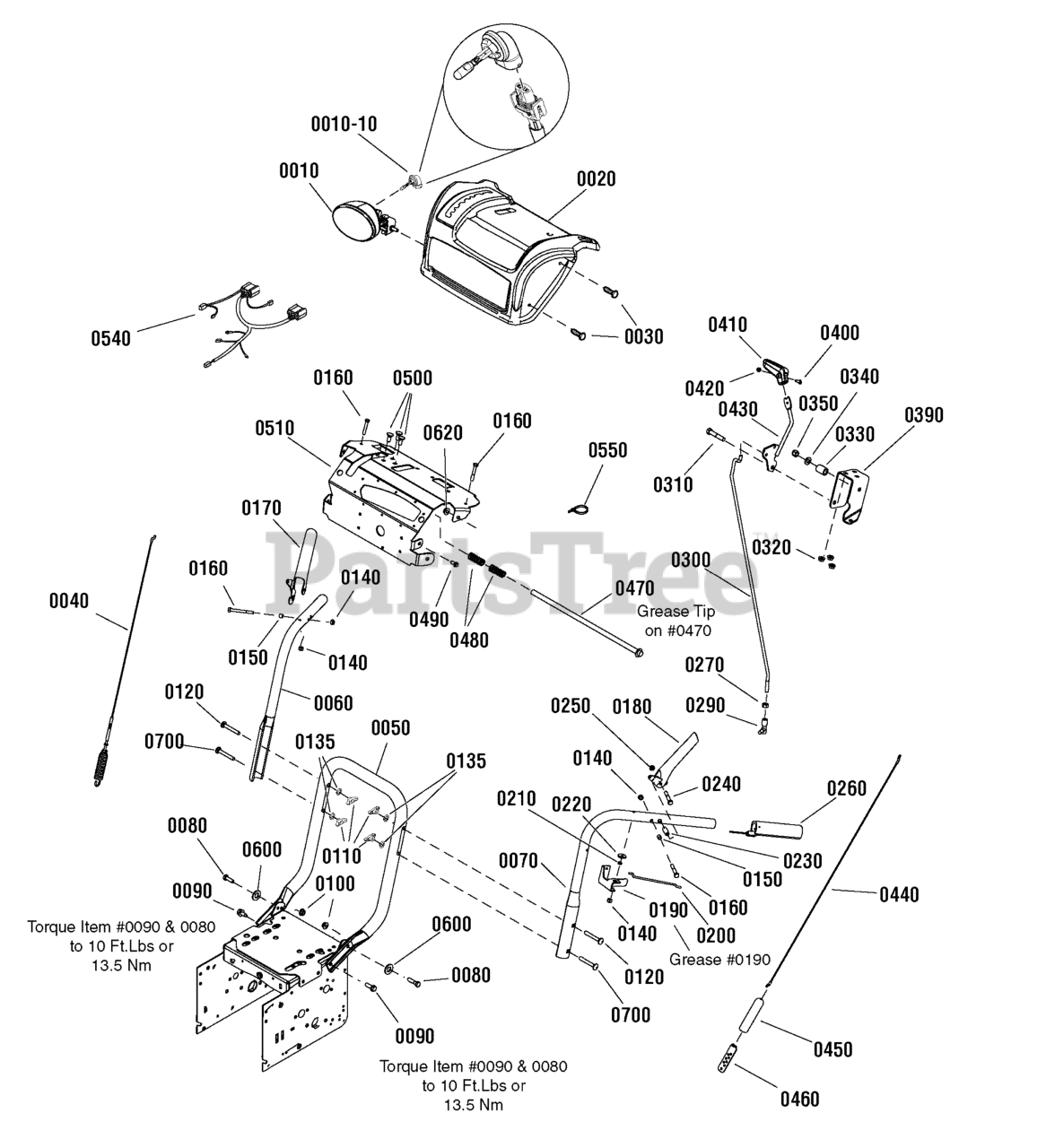

Handles and Controls Group Parts Diagram

  • Title

0010

Murray 1737966YP

HEADLIGHT ASSEMBLY

$97.99

$

Usually ships in 2-12 days

0

0010-10

* BULB, Headlight, Halogen, 881-12V 27W

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Murray 1738247BIYP

COVER, Panel

$142.99

$

Usually ships in 2-12 days

0

0030

Murray 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Murray 1732471SM

CABLE AND SPRING ASSEMBLY, Auger Drive, Right

$

$

Not available

0050

Murray 1737759AYP

HANDLE, Lower

$176.99

$

Usually ships in 2-12 days

0

0060

Murray 1734587ASM

HANDLE, Upper, Right

$51.99

$

Usually ships in 2-12 days

0

0070

Murray 1734586ASM

HANDLE, Upper, Left

$55.99

$

In Stock, only 1 left!

0

0080

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0090

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0120

Murray 1750299YP

BOLT, Carriage, 5/16-18 x 2-1/4 G5
(Superseded to 703168)

$3.99

$

In Stock, only 1 left!

0

0135

Murray 7090391SM

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1678392SM

SPACER, 1/4ID x 3/8OD
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 1739783AYP

LEVER, Clutch, Right

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1739782AYP

LEVER, Clutch, Left

$

$

Not available

0190

Murray 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, 5-5/8 Inch

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 1733095SM

SPACER, 1/4ID x 3/8OD

$4.49

$

Usually ships in 2-12 days

0

0220

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0230

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1750554YP

BOLT, Shoulder, 1/4 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

0250

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1726317SM

HAND GRIP

$8.49

$

In Stock, only 1 left!

0

0270

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0290

Murray 1739290YP

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Murray 1734354SM

ROD, 25"
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 17

0

0350

Murray 1919439SM

NUT, Hex Lock, Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0390

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Murray 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Murray 1733192SM

GRIP, Lever

$8.49

$

Usually ships in 2-12 days

0

0420

Murray 1933896SM

NUT, Hex Lock Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1736836YP

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Murray 1502113MA

CABLE, Hydro Drive

$22.99

$

In Stock, Qty 20+

0

0450

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

0460

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0470

Murray 1733509SM

ROD & SPRING ASSEMBLY

$81.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0490

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0510

Murray 1732064BMYP

COVER, Dash

$136.99

$

Usually ships in 2-12 days

0

0540

Murray 1738239YP

WIRING HARNESS

$110.99

$

Usually ships in 2-12 days

0

0550

Murray 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0600

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0620

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0700

Murray 7091189YP

BOLT, Carriage, Short Neck, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 11

0
