ML 761650 (1695912) - Murray 30" Snow Thrower, 16.5hp, Canada (2010) Chute & Rotation Group Parts Diagram

30" Snow Thrower, 16.5hp, Canada

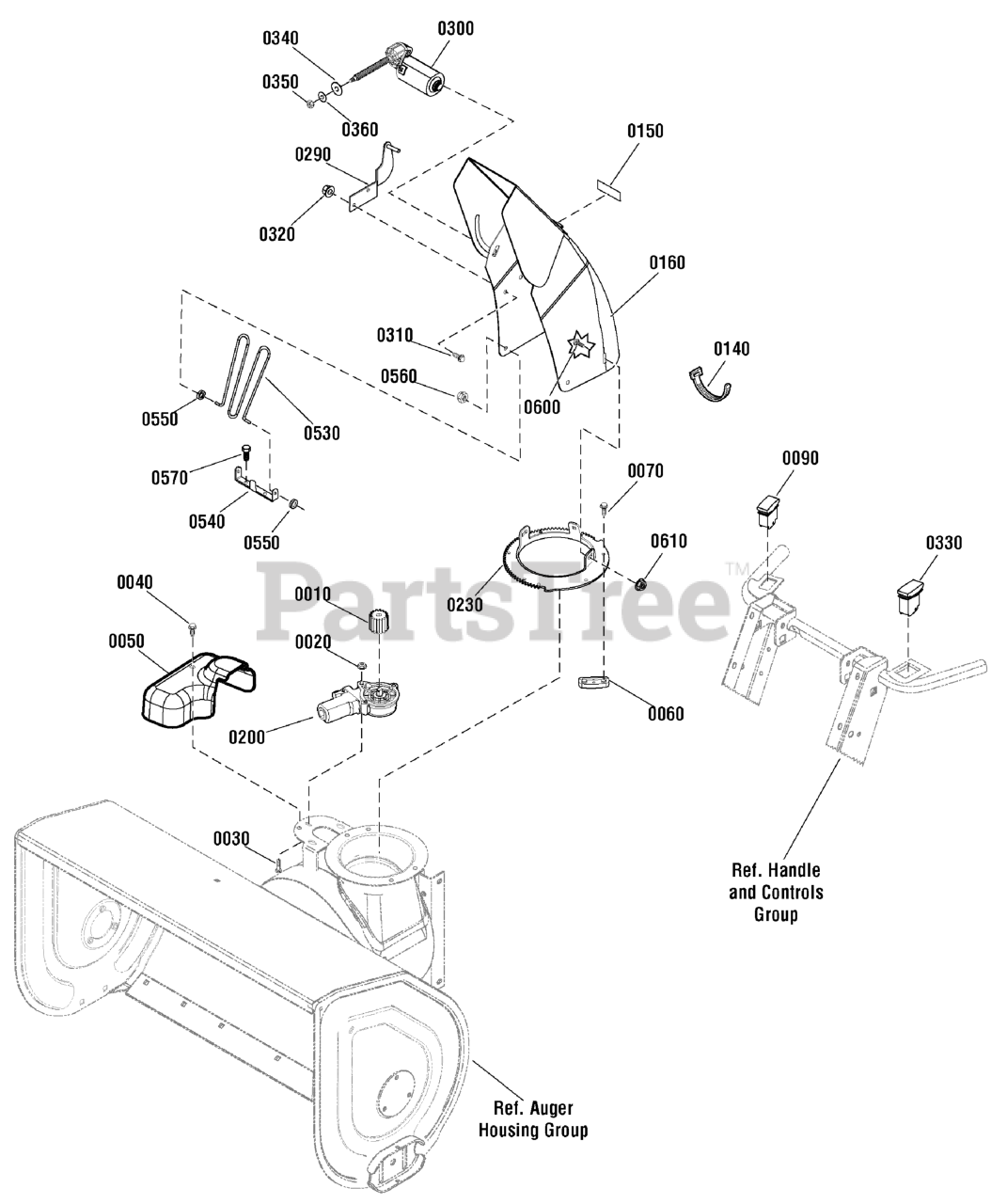

Chute & Rotation Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$17.99

$

In Stock, only 3 left!

0

0020

Murray 1960745SM

NUT, Hex Flange, Whiz Lock, 10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 2860604SM

CAPSCREW, Hex Washer Head, #10C x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1925592SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Murray 1737455YP

COVER, Electric Chute Rotation
(Superseded to 1752877YP)

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 1960001SM

CAPSCREW, Hex Washer Head Taptite, #10C x 5/8, G5
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0090

Murray 1738243YP

SWITCH, Chute Rotation

$54.99

$

Usually ships in 2-12 days

0

0140

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0150

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0

0160

Murray 1738231BIYP

CHUTE

$125.99

$

Usually ships in 2-12 days

0

0200

Murray 1728965SM

MOTOR, Spout Rotator

$176.99

$

In Stock, Qty 8

0

0230

Murray 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0290

Murray 1738267BMYP

BRACKET, Motor Mount

$30.99

$

Usually ships in 2-12 days

0

0300

Murray 1737941YP

MOTOR, Chute Deflector

$143.99

$

In Stock, Qty 5

0

0310

Murray 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Murray 1960694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1738242YP

SWITCH, Deflector

$54.99

$

Usually ships in 2-12 days

0

0340

Murray 1738244YP

WASHER, Rubber

$4.49

$

In Stock, Qty 10

0

0350

Murray 1738245YP

NUT, Left Handed
(Superseded to 703143)

$3.49

$

In Stock, Qty 5

0

0360

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0530

Murray 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1737683YP

BRACKET, Chute Guard
(Superseded to 1752883YP)

$15.99

$

Usually ships in 2-12 days

0

0550

Murray 1738174YP

GROMMET, Chute Guard

$4.49

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, 3/16 Stud

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0600

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0610

Murray 2860694SM

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0
