MK602 - Exmark 60" Mulching Kit 60" Deck Installation Parts Diagram

60" Mulching Kit

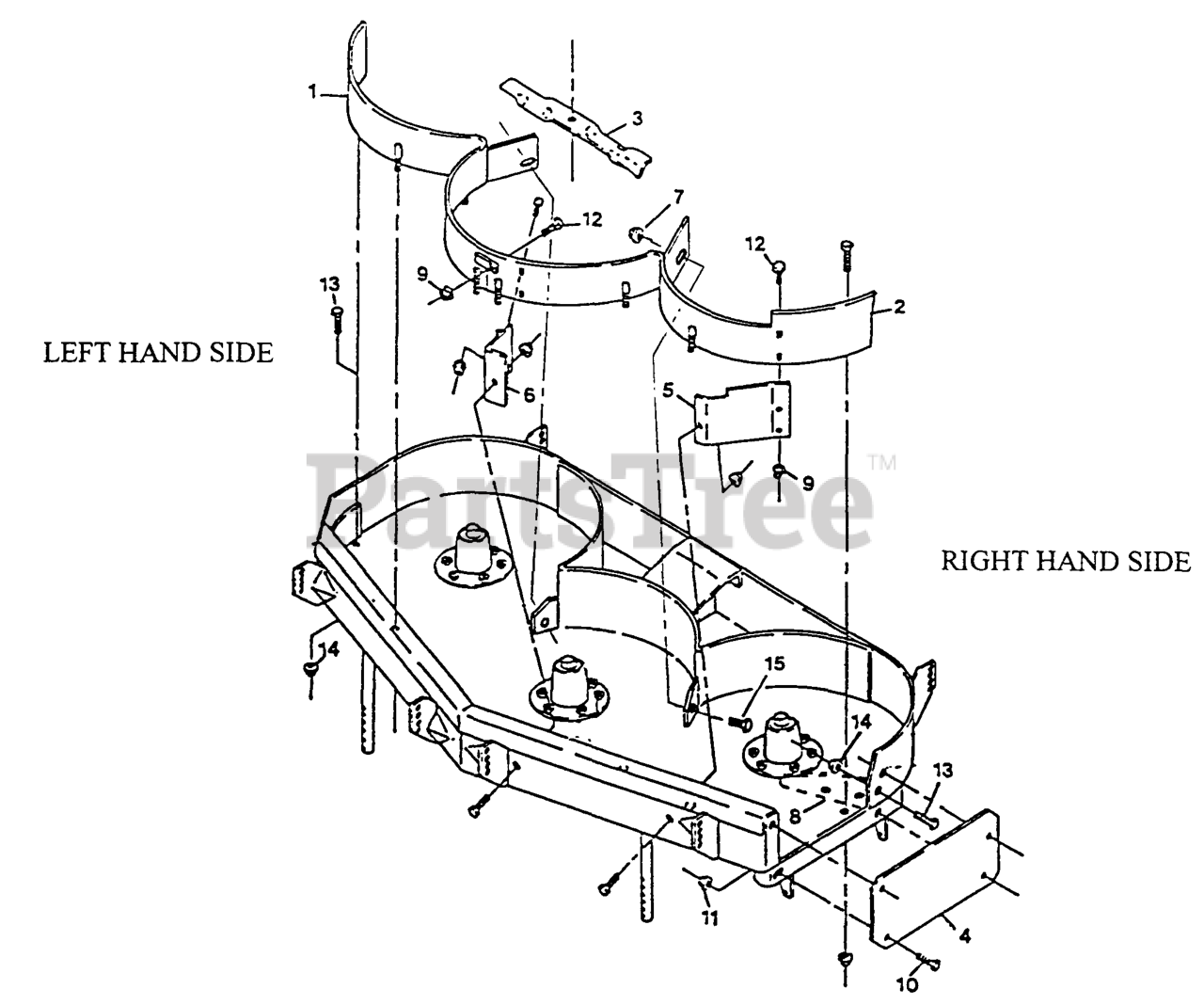

60" Deck Installation Parts Diagram

  • Title
1

Exmark 1-612068-03

WLD,BAFFLE LH 60

$

$

Not available

2

Exmark 1-612070-03

WLD,BAFFLE RH 60

$

$

Not available

3

Exmark 1-603874

103-3231
(Superseded to 103-3231)

$35.99

$

In Stock, only 4 left!

0

4

Exmark 1-303494-01

PLATE-COVER

$71.99

$

In Stock, only 3 left!

0

5

Exmark 1-603896-03

DISCONTINUED

$

$

Not available

6

Exmark 1-603898-03

DISCONTINUED (EXMARK)

$

$

Not available

7

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

Note: (This item comes installed on mower deck and is not in kit.)

$51.99

$

In Stock, only 4 left!

0

9

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

11

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

13

Exmark 1-800270

322-2
(Superseded to 322-2)

Note: (This item comes installed on mower deck and is not in kit.)

$2.99

$

In Stock, Qty 15

0

14

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: (This item comes installed on mower deck and is not in kit.)

$1.49

$

In Stock, Qty 20+

0

15

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 15

0
