MICRO XXV - Poulan Chainsaw IGNITION, ELECTRICAL & FLYWHEEL Parts Diagram

Chainsaw

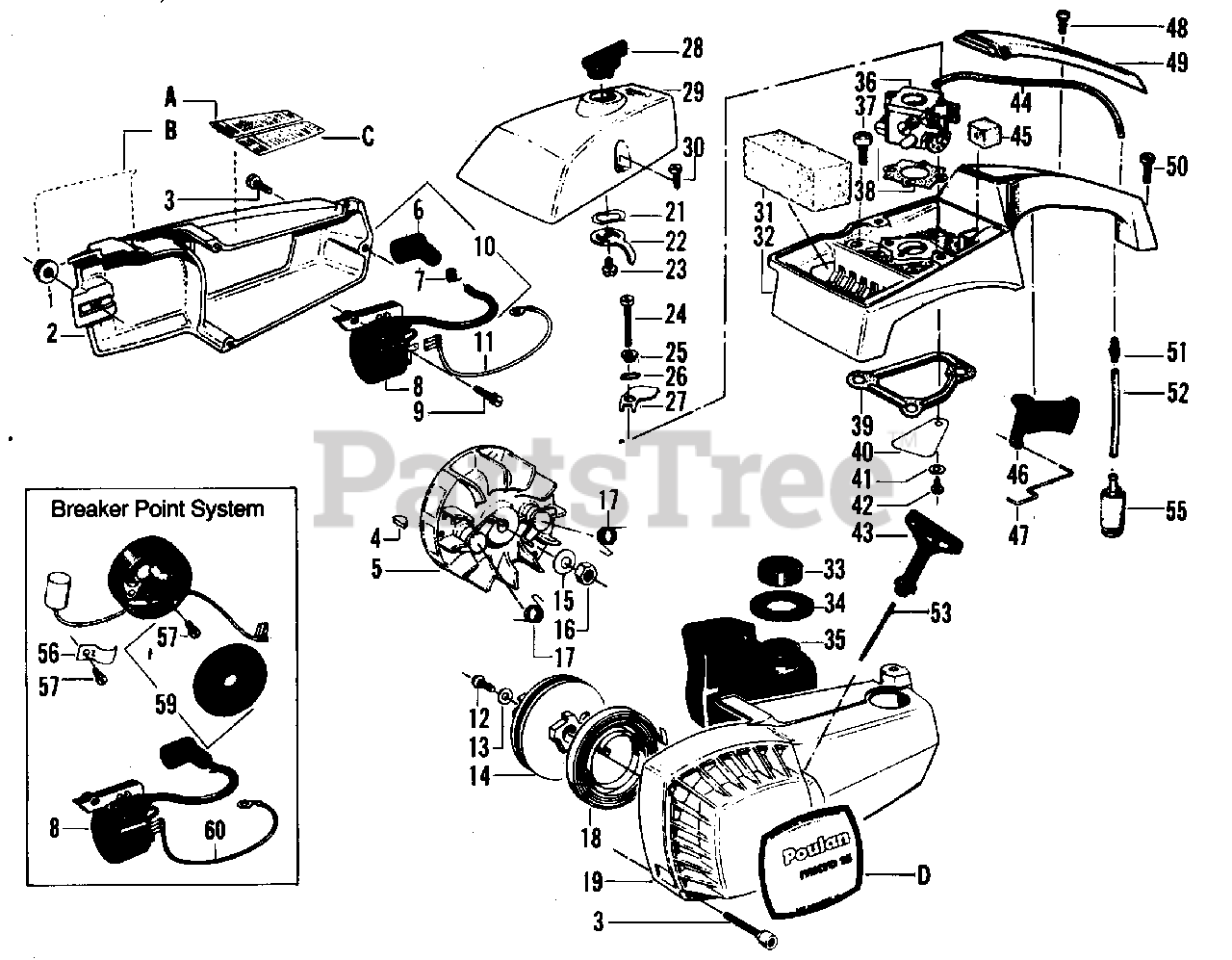

IGNITION, ELECTRICAL & FLYWHEEL Parts Diagram

  • Title

1

Poulan 530011575

Nut - Bar Mounting

$60.99

$

Usually ships in 3-10 days

0

2

Poulan 530011311

Bar Clamp

$

$

Not available

3

Poulan 530069199

Kit - Fan Housing Screws

$

$

Not available

4

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530039077

Flywheel Ass'y, Breaker Point Models (Inc.17)

$

$

Not available

5

Poulan 530039111

Flywheel Ass'y, Solid State Models (Inc.17)
(Superseded to 530047198)

$

$

Not available

6

Poulan 530003934

Boot Spark Plug

$

$

Not available

7

Poulan 530003933

Connector - Spark Plug
(Superseded to 507475326)

$

$

Not available

8

Poulan 530039078

Ignition Module, Coil Ass'y - Breaker Point Models (Inc. #60)

$

$

Not available

8

Poulan 530069202

Kit Module - Solid State Models (Inc. #10 & 11)

$

$

Not available

9

Poulan 530015128

Screw - 8 - 32 x 1/4 Fil. Hd. Sems
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530039082

Lead Ass'y. Spark Plug (Inc. 6 & 7)

$

$

Not available

11

Poulan 530039116

Lead - Switch - See Service Ref. 2

$

$

Not available

12

Poulan 530015036

Screw 10 - 24 x 1/2 Hex Head
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

13

Poulan 530015428

Washer

$

$

Not available

14

Poulan 530069200

Kit - Pulley Replacement (Inc. 13,43,53)
(Superseded to 530069288)

$

$

Not available

15

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530626605

Nut 5/16 - 24

$5.99

$

Usually ships in 3-10 days

0

17

Poulan 530023817

Spring - Starter Dog

$6.49

$

In Stock, Qty 5

0

18

Poulan 530042023

Spring Starter
(Superseded to 545008007)

$

$

Not available

19

Poulan 530011309

Fan Housing

$

$

Not available

21

Poulan 530015147

Wave Washer

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 530023806

Lever - Choker

$

$

Not available

23

Poulan 530015407

Screw - 8 - 32 x 5/16 Hex Head

$

$

Not available

24

Poulan 530015245

Screw 10 - 24 x 1-5/8 Fil. Head

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530023865

Spacer - Choke Shutter

$

$

Not available

26

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

27

Poulan 530023805

Shutter Choke

$

$

Not available

28

Poulan 530023807

Choke Knob

$2.49

$

In Stock, only 2 left!

0

29

Poulan 530023775

Cover - Carburetor
(Superseded to 530071304)

$

$

Not available

30

Poulan 530015168

Screw 10 - 24 x 5/8 Fil. Head

$

$

Not available

31

Poulan 530023791

Air Filter

$

$

Not available

32

Poulan 530025228

Handle & Carburetor Housing

$

$

Not available

33

Poulan 530010729

Cap - Fuel Tank
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

34

Poulan 530019093

Seal Fuel Tank Neck

Note: Included in Gasket Kit

$

$

Not available

35

Poulan 530010775

Fuel Tank

$

$

Not available

36

Carburetor

$

$

Not available

37

Poulan 530015242

Screw - 1/4 - 20 x 11/16

$

$

Not available

38

Poulan 530019045

Gasket - Carburetor

Note: Included in Gasket Kit

$

$

Not available

39

Poulan 530019118

Gasket Carburetor Housing
(Superseded to 530019252)

Note: Included in Gasket Kit

$

$

Not available

40

Poulan 530023366

Reed Valve

$

$

Not available

41

Poulan 530023367

Washer Reed Valve

$

$

Not available

42

Poulan 530015241

Screw No. 6 x 5/16 Phillip Pan Head

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530026735

Handle - Starter
(Superseded to 530027569)

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 530021025

Fuel Line (Bulk No. 8133)
(Superseded to 530069216)

$11.99

$

In Stock, Qty 20+

0

45

Poulan 530023373

Boot - Throttle Wire

Note: Included in Gasket Kit

$

$

Not available

46

Poulan 530023804

Trigger Throttle

$4.99

$

In Stock, only 1 left!

0

47

Poulan 530023803

Wire Throttle

$

$

Not available

48

Poulan 530015247

Screw - No. 8 x 1/4 Phillip Pan Hd.

$

$

Not available

49

Poulan 530023774

Cover Handle

$

$

Not available

50

Poulan 530015141

Screw 1/4 - 20 x 1/4
(Superseded to 530015239)

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 530023877

Fitting Fuel Line

$5.99

$

In Stock, Qty 6

0

52

Poulan 530021024

Line Fuel Pick-up (Bulk No. 8133)

$

$

Not available

53

Poulan 530022289

Rope (3 ft.)

$

$

Not available

55

Poulan 530091878

Fuel Pick-up Ass'y.

$

$

Not available

56

Poulan 530039053

Clamp - Connector

$3.99

$

Usually ships in 3-10 days

0

57

Poulan 530015004

Screw 8 - 32 x 5/16

$3.99

$

Usually ships in 3-10 days

0

59

Poulan 530039079

Breaker Point Ass'y.

$

$

Not available

60

Poulan 530039081

Lead - Switch

$

$

Not available

A

Poulan 530024795

Decal Instruction (Right Half)

$

$

Not available

B

Poulan 530023823

Decal - Bar Clamp - 10"

$

$

Not available

C

Poulan 530025165

Decal Instruction (Left Half)

$

$

Not available

D

Poulan 530023822

Decal - Fan Housing - 10"

$

$

Not available
