MICRO XXV - Poulan Chainsaw HANDLE, CHAIN ASSEMBLY Parts Diagram

Chainsaw

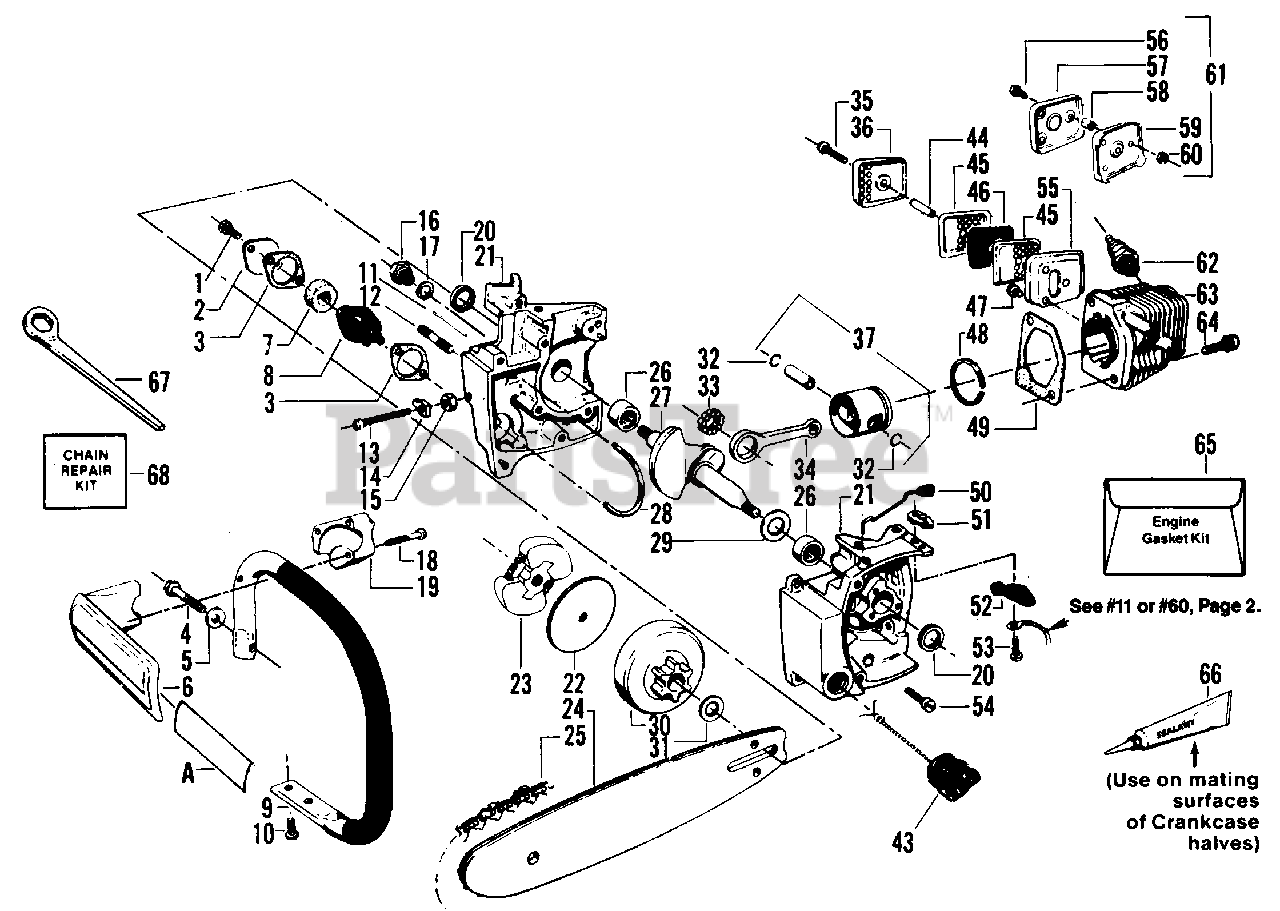

HANDLE, CHAIN ASSEMBLY Parts Diagram

  • Title

1

Poulan 530015176

Screw - 8 - 32 x 1/2

$

$

Not available

2

Poulan 530023802

Cover Metering Body

$

$

Not available

3

Poulan 530019091

Gasket - Oil Pump Metering Body

$

$

Not available

4

Poulan 530001648

Screw - 1/4 - 20 x 1-1/4 Hex Bolt

$

$

Not available

5

Poulan 530015151

Washer - Handlebar Top

$

$

Not available

6

Poulan 530024091

Handguard

$

$

Not available

7

Poulan 530023801

Filter - Oil Metering

$

$

Not available

8

Poulan 530010195

Body Ass'y.

$

$

Not available

9

Poulan 530022222

Handlebar Ass'y. - 12"

$

$

Not available

9

Poulan 530022189

Handlebar Ass'y. - 14"

$

$

Not available

10

Poulan 530015037

Screw - 10 - 24 x 5/8 Hex w/Head

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530023792

Pin - Oil Tank Vent

$

$

Not available

12

Poulan 530015249

Stud Bar

$

$

Not available

13

Poulan 530015236

Screw - Bar Adj.
(Superseded to 530016115)

$2.49

$

In Stock, only 1 left!

0

14

Poulan 530023492

Pin - Bar Adj.

$

$

Not available

15

Poulan 530015135

Lock Nut 8 - 32

$1.99

$

In Stock, Qty 7

0

16

Poulan 530069142

Check Valve Kit - Oil Tank Pressure (Inc.17)

$

$

Not available

17

Poulan 530019089

Gasket - Check Valve

$

$

Not available

18

Poulan 530015318

Screw - Plastite

$

$

Not available

19

Poulan 530024049

Cap - Handguard

$

$

Not available

20

Poulan 530019059

Seal - Crankcase

$

$

Not available

21

Poulan 530010194

Crankcase Ass'y. (Inc. #20 & 26)

$

$

Not available

22

Poulan 530069197

Clutch Washer Kit See Service Reference # 3

$

$

Not available

23

Kit Clutch Ass'y (Inc. Washer) See Service Reference # 3

$

$

Not available

24

Poulan 530044199

Guide Bar 10" Non - Armor Tip

$

$

Not available

24

Poulan 530044192

Guide Bar 10" Sprocket Nose

$

$

Not available

24

Poulan 530044201

Guide Bar 12" Non - Armor Tip

$

$

Not available

24

Poulan 530044193

Guide Bar 12" Sprocket Nose

$

$

Not available

24

Poulan 530044194

Guide Bar 14" Sprocket Nose

$

$

Not available

24

Poulan 530044195

Guide Bar 16" Sprocket Nose

$

$

Not available

25

Poulan 051188

Chain 10" (P101S-40)

$

$

Not available

25

Poulan 952051191

Chain 12" (P101S-45)

$

$

Not available

25

Poulan 530051193

Chain 14" (P101S-52)

$

$

Not available

25

Poulan 530051195

Chain 16" (P101S-56)

$

$

Not available

26

Poulan 530032058

Bearing Crankshaft
(Superseded to 530032029)

$10.99

$

In Stock, only 2 left!

0

27

Poulan 530022172

Crankshaft

$

$

Not available

28

Poulan 530021026

Line - Oil Discharge (Bulk #8133)
(Superseded to 530069216)

$11.99

$

In Stock, Qty 20+

0

29

Poulan 530023887

Thrust Washer - Crankshaft

$

$

Not available

30

Poulan 530048032

Sprocket & Drum

$

$

Not available

31

Poulan 530023519

Spacer - Clutch (Inside)

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530023843

Ring - Piston Pin Retainer

$

$

Not available

33

Poulan 530032025

Bearing - Roller

$

$

Not available

34

Poulan 530022158

Connecting Rod

$36.99

$

Usually ships in 3-10 days

0

35

Poulan 530015169

Screw - 10 - 24 x 1-7/16

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 530023795

Cover - Muffler

$

$

Not available

37

Poulan 530010587

Piston Kit (Inc. #32)
(Superseded to 530069545)

$

$

Not available

43

Poulan 530010221

Oil Cap Ass'y. (Inc. O-Ring)

$

$

Not available

44

Poulan 530023535

Spacer - Muffler Cover

$5.99

$

In Stock, only 1 left!

0

45

Poulan 530023797

Baffle - Muffler

$

$

Not available

46

Poulan 530023796

Screen - Spark Arrestor

$

$

Not available

47

Poulan 530001666

Screw - 10 - 24 x 1/2 Fil. Head

$

$

Not available

48

Poulan 530023789

Piston Ring

$

$

Not available

49

Poulan 530019088

Gasket - Cylinder

$

$

Not available

50

Poulan 530023788

Knob Ass'y.

$

$

Not available

51

Poulan 530023786

Ramp - Kill Switch

$

$

Not available

52

Poulan 530023787

Clamp - Switch

$

$

Not available

53

Poulan 530015235

Screw - 8 - 8/16 Tapping

$

$

Not available

54

Poulan 530015238

Screw - 10 - 24 x 11/16 Phillip Pan Hd.

$2.49

$

In Stock, only 1 left!

0

55

Poulan 530023794

Body - Muffler

$

$

Not available

56

Poulan 530015333

Screw - Hex Slotted 8 -32 x 7/16 (Optional)

$

$

Not available

57

Poulan 530024201

Heat Shield (Optional)

$

$

Not available

58

Poulan 530015331

Spacer - Cover (Optional)

$1.99

$

Usually ships in 3-10 days

0

59

Poulan 530024202

Cover - Muffler (Optional)

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 530015332

Locking Nut 8 - 32 (Optional)

$1.99

$

Usually ships in 3-10 days

0

61

Poulan 530010258

Cover & Shield Ass'y. (Inc. 56-60) (Optional)

$

$

Not available

62

Poulan 530030005

Spark Plug CJ-8
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

63

Poulan 530012064

Cylinder

$

$

Not available

64

Poulan 530015239

Screw - 1/4 - 20 x 3/4 Socket Head

$2.49

$

Usually ships in 3-10 days

0

65

Poulan 530069022

Engine Gasket/Kit (Inc.3,7,17,20,49)
(Superseded to 530069401)

$

$

Not available

66

Poulan 530030054

Sealant - Crankcase

$

$

Not available

67

Poulan 530031063

Bar Adjusting Tool
(Superseded to 545006011)

$

$

Not available

68

Poulan 530052073

Chain Repair Kit

$

$

Not available

A

Poulan 530025631

Decal - Kickback

$

$

Not available
