MICRO XXV - Poulan Chainsaw CARBURETOR WT-3 (35158) & WT-20 (35181) Parts Diagram

Chainsaw

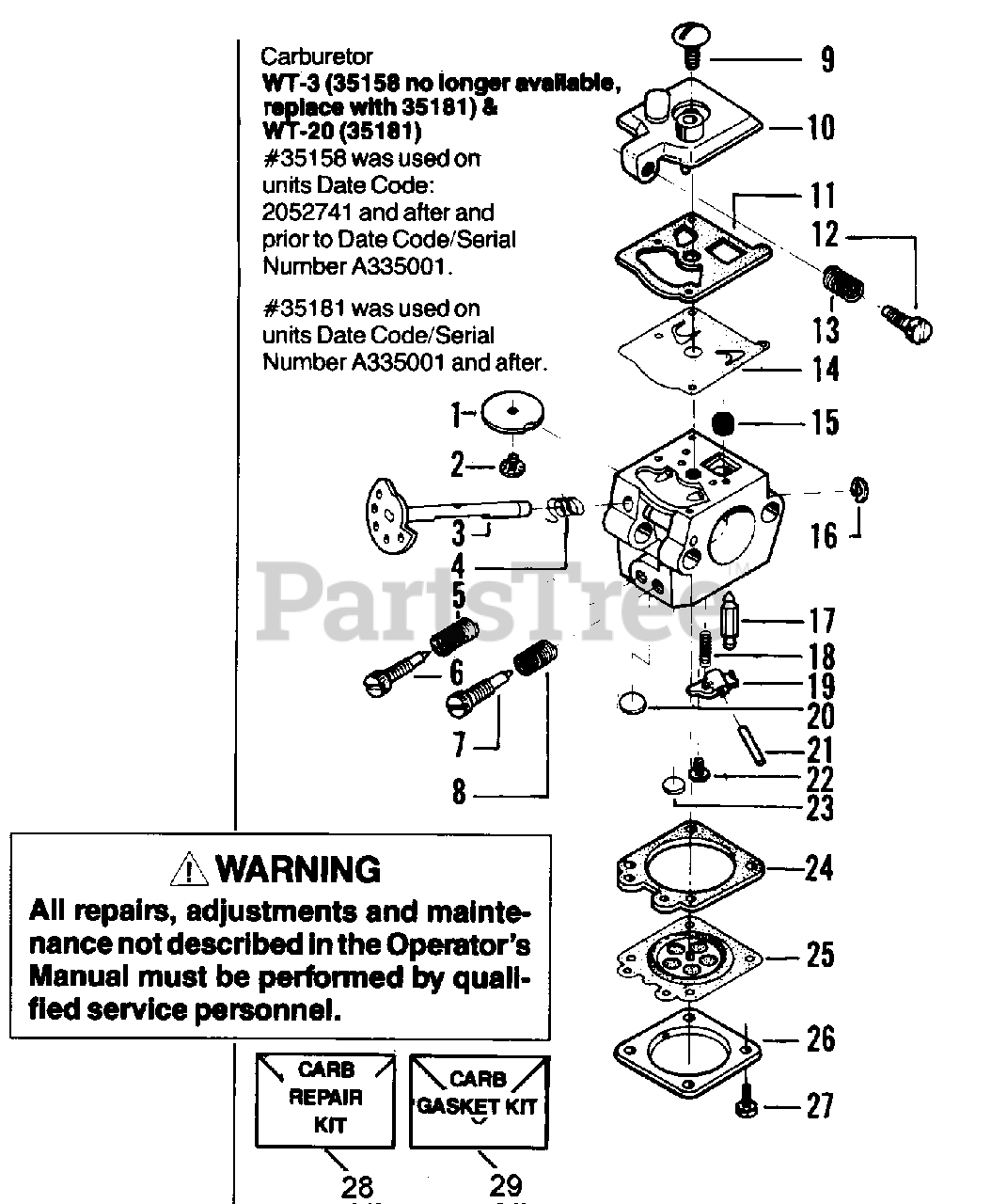

CARBURETOR WT-3 (35158) & WT-20 (35181) Parts Diagram

  • Title

1

Poulan 530035006

Valve-Throttle

$

$

Not available

2

Poulan 530035015

Screw-Throttle Valve

$

$

Not available

3

Poulan 530035034

Shaft Assembly-Throttle

$

$

Not available

4

Poulan 530035024

Spring-Throttle Return

$

$

Not available

5

Poulan 530035023

Spring-Low Speed Mixture Needle
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

6

Poulan 530035171

Needle-Low Speed Mixture

$

$

Not available

7

Poulan 530035169

Needle-High Speed Mixture

$

$

Not available

8

Poulan 530035167

Spring-High Speed Mixture Needle

$

$

Not available

9

Poulan 530035017

Screw-Pump Cover

$0.99

$

Usually ships in 3-10 days

0

10

Poulan 530035159

Cover-Fuel Pump

$

$

Not available

11

Poulan 530035164

Gasket-Fuel Pump
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

12

Poulan 530035035

Screw-Idle Speed Adjusting

$

$

Not available

13

Poulan 530035168

Spring-Idle Speed Adjustment Screw

$

$

Not available

14

Poulan 530035166

Diaphragm-Fuel Pump
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

15

Poulan 530035172

Screen-Fuel Inlet WT-3 (# 35158)

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

15

Poulan 530035027

Screen-Fuel Inlet WT-20 (# 35181)

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

16

Poulan 530035007

Ring-Throttle Retainer

$

$

Not available

17

Poulan 530035008

Valve-Inlet Needle

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

18

Poulan 530035139

Spring-Metering Lever
(Superseded to 530035188)

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 10

0

19

Poulan 530035031

Lever-Metering
(Superseded to 505520127)

Note: Included in Carburetor Kwik Repair Kit.

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530035162

Plug-5/16 Dia. Welch

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

21

Poulan 530035028

Pin-Metering Lever
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$7.99

$

In Stock, only 3 left!

0

22

Poulan 530035016

Screw-Metering Lever Pin

Note: Included in Carburetor Kwik Repair Kit.

$7.99

$

In Stock, Qty 6

0

23

Poulan 530035163

Plug 1/4 Dia. Welch

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

24

Poulan 530035165

Gasket-Metering Diaphragm

$

$

Not available

25

Poulan 530035014

Diaphragm-Metering
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

26

Poulan 530035003

Cover Metering Diaphragm

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530035021

Screw-Assembly Metering Cover

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530035161

Kit-Carb Repair (Inc.11,14,15,15,17,18,19,20, 21,22,23,24,25)

$37.99

$

Usually ships in 3-10 days

0

29

Poulan 530035173

Kit-Carb. Gasket Diaphram
(Superseded to 530069844)

$20.99

$

In Stock, only 3 left!

0
