Exmark MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 540000 - 599999) (2005) ECS Upper Handles And Controls Parts Lookup with Diagrams

1

Exmark 103-1566-03

116-4079

(Superseded to 116-4079) 

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$37.99

$

In Stock, Qty 20+

2

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$1.49

$

In Stock, Qty 20+

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$47.99

$

In Stock, Qty 20+

5

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

6

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 18

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

9

Exmark 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 1 left!

10

Exmark 103-1567-03

116-4080

(Superseded to 116-4080) 

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$37.99

$

In Stock, Qty 19

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

12

Exmark 1-414234

116-6334

(Superseded to 116-6334) 

$65.99

$

In Stock, only 3 left!

13

Exmark 296-29

Nut, Nyloc 5/16-18

$

Currently unavailable 

14

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

17

Exmark 103-1149

LINK,BLADE ENGAGE (PLTD)

$27.99

$

In Stock, only 4 left!

18

Exmark 1-413279

TURNBUCKLE

$50.99

$

In Stock, only 1 left!

19

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

20

Exmark 103-0815

GRIP-BAR, HANDLE

$12.99

$

In Stock, Qty 9

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

22

Exmark 103-1631

ASM,LH THUMB LATCH

Note: (Not Shown)

$37.99

$

Usually ships in 3-6 days

Exmark 103-1630

ASM,RH THUMB LATCH

Note: (Shown)

$37.99

$

In Stock, only 4 left!

23

Exmark 296-42

Nut, Nyloc 1/4

$

Currently unavailable 

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$674.99

$

Usually ships in 3-6 days

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

26

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

27

Exmark 103-3536

109-0346

(Superseded to 109-0346) 

$21.99

$

In Stock, Qty 15

28

Exmark 103-2893

ASM,FUEL TANK W/B

$307.99

$

Usually ships in 3-6 days

29

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$6.49

$

In Stock, only 2 left!

30

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

31

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

32

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

34

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$36.99

$

In Stock, Qty 6

35

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

36

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

37

Exmark 1-603955

HOSE-FUEL

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$5.49

$

Usually ships in 3-6 days

38

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

39

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

40

Kawasaki Pn 41019-1055 W/6" Fuel Line

$

Not available 

41

Exmark 103-1710

DISCONTINUED

$

Not available 

42

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

43

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, Qty 5

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

44

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

45

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

46

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

49

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

51

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 4 left!

52

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

53

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

55

Exmark 103-2466-03

103-2514

(Superseded to 103-2514) 

$140.99

$

In Stock, only 4 left!

56

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

57

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

59

Exmark 103-0464

126-2925

(Superseded to 126-2925) 

$1.49

$

In Stock, only 2 left!

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$1.49

$

In Stock, Qty 19

62

Exmark 103-2465-03

116-4082

(Superseded to 116-4082) 

$56.99

$

Usually ships in 3-6 days

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

64

Exmark 103-2765

ASM,CONSOLE W/DECALS

$

Not available 

65

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

66

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

Note: (Shown)

$140.99

$

In Stock, only 1 left!

Exmark 103-2514

DRIVE LEVER-ASM, LH

Note: (Not Shown)

$140.99

$

In Stock, only 4 left!

68

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 4 left!

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$25.99

$

In Stock, Qty 6

70

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, Qty 6

71

Exmark 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

72

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

73

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

74

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

75

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

Exmark 1-840023

PRO-LOCK-RETAINING 1

$21.99

$

In Stock, only 1 left!

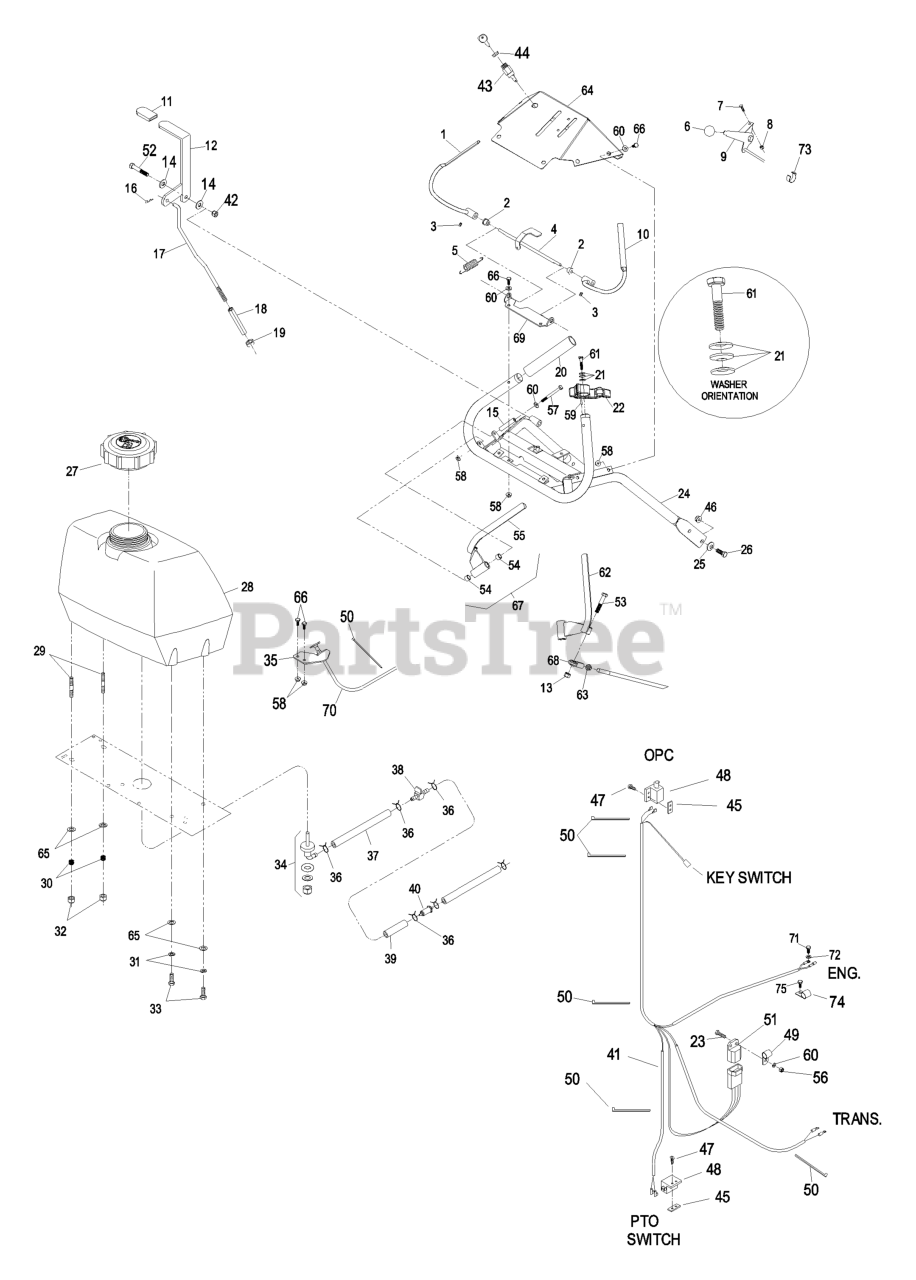

MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 540000 - 599999) (2005) ECS Upper Handles And Controls Parts Diagram

ECS Upper Handles And Controls Parts Diagram
