MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 370000 - 439999) (2003) ECS Upper Handles And Controls Parts Diagram

48" Metro HP Walk-Behind Mower, 15hp Kawasaki

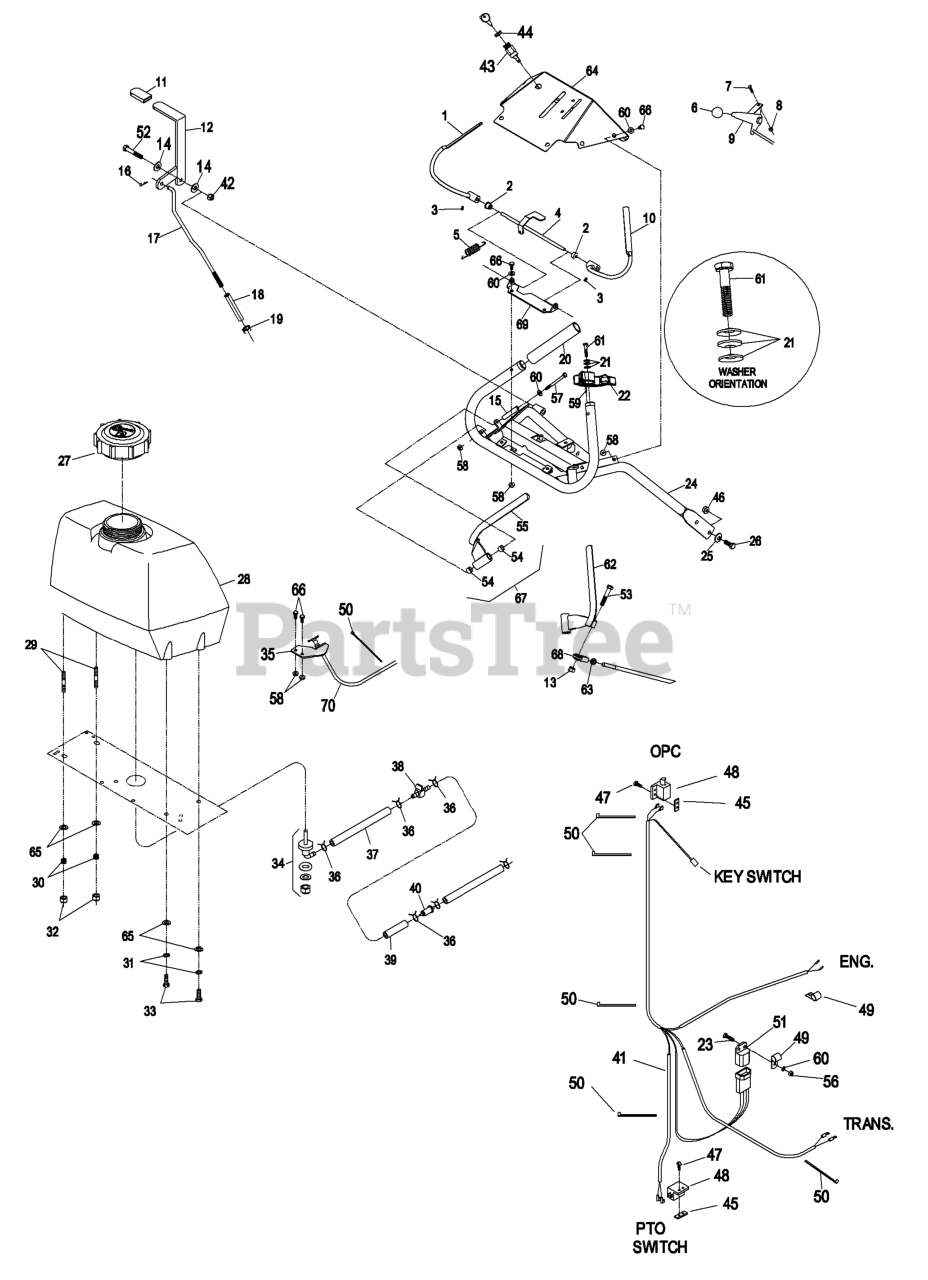

ECS Upper Handles And Controls Parts Diagram

  • Title

1

Exmark 103-1566-03

116-4079
(Superseded to 116-4079)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$33.99

$

In Stock, only 1 left!

0

2

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$1.49

$

In Stock, Qty 5

0

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 7

0

5

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

6

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 2 left!

0

10

Exmark 103-1567-03

116-4080
(Superseded to 116-4080)

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$33.99

$

In Stock, only 1 left!

0

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

12

Exmark 1-414234

116-6334
(Superseded to 116-6334)

$59.99

$

In Stock, only 3 left!

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Exmark 103-1149

LINK,BLADE ENGAGE (PLTD)

$25.99

$

In Stock, only 4 left!

0

18

Exmark 1-413279

TURNBUCKLE

$45.99

$

In Stock, only 1 left!

0

19

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

20

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

0

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

22

Exmark 103-1631

ASM,LH THUMB LATCH

$33.99

$

Usually ships in 3-6 days

0

Exmark 103-1630

ASM,RH THUMB LATCH

$33.99

$

In Stock, only 1 left!

0

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$608.99

$

Usually ships in 3-6 days

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Exmark 103-2107

109-0346
(Superseded to 109-0346)

$21.99

$

In Stock, only 1 left!

0

28

Exmark 103-2893

ASM,FUEL TANK W/B

$276.99

$

Usually ships in 3-6 days

0

29

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$6.49

$

Usually ships in 3-6 days

0

30

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

31

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

32

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

33

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

34

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$36.99

$

In Stock, only 2 left!

0

35

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

37

Exmark 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

38

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

39

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

40

Kawasaki Pn 41019-1055 W/6" Fuel Line

$

$

Not available

41

Exmark 103-1710

DISCONTINUED

Note: Use dielectric grease on all electrical connectors.

$

$

Not available

42

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

43

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, only 3 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

44

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

45

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

46

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

49

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

51

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 1 left!

0

52

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

53

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

0

55

Exmark 103-2466-03

103-2514
(Superseded to 103-2514)

$127.99

$

In Stock, only 4 left!

0

56

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

59

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws, and on fuel fitting.

$1.49

$

In Stock, Qty 19

0

62

Exmark 103-2465-03

116-4082
(Superseded to 116-4082)

$51.99

$

Usually ships in 3-6 days

0

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

64

Exmark 103-2765

ASM,CONSOLE W/DECALS

$

$

Not available

Exmark 103-0546-03

103-2458
(Superseded to 103-2458)

$

$

Not available

65

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

66

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

67

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

0

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

0

68

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, only 1 left!

0

70

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, only 1 left!

0
