MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 370000 - 439999) (2003) 48" Mower Deck Parts Diagram

48" Metro HP Walk-Behind Mower, 15hp Kawasaki

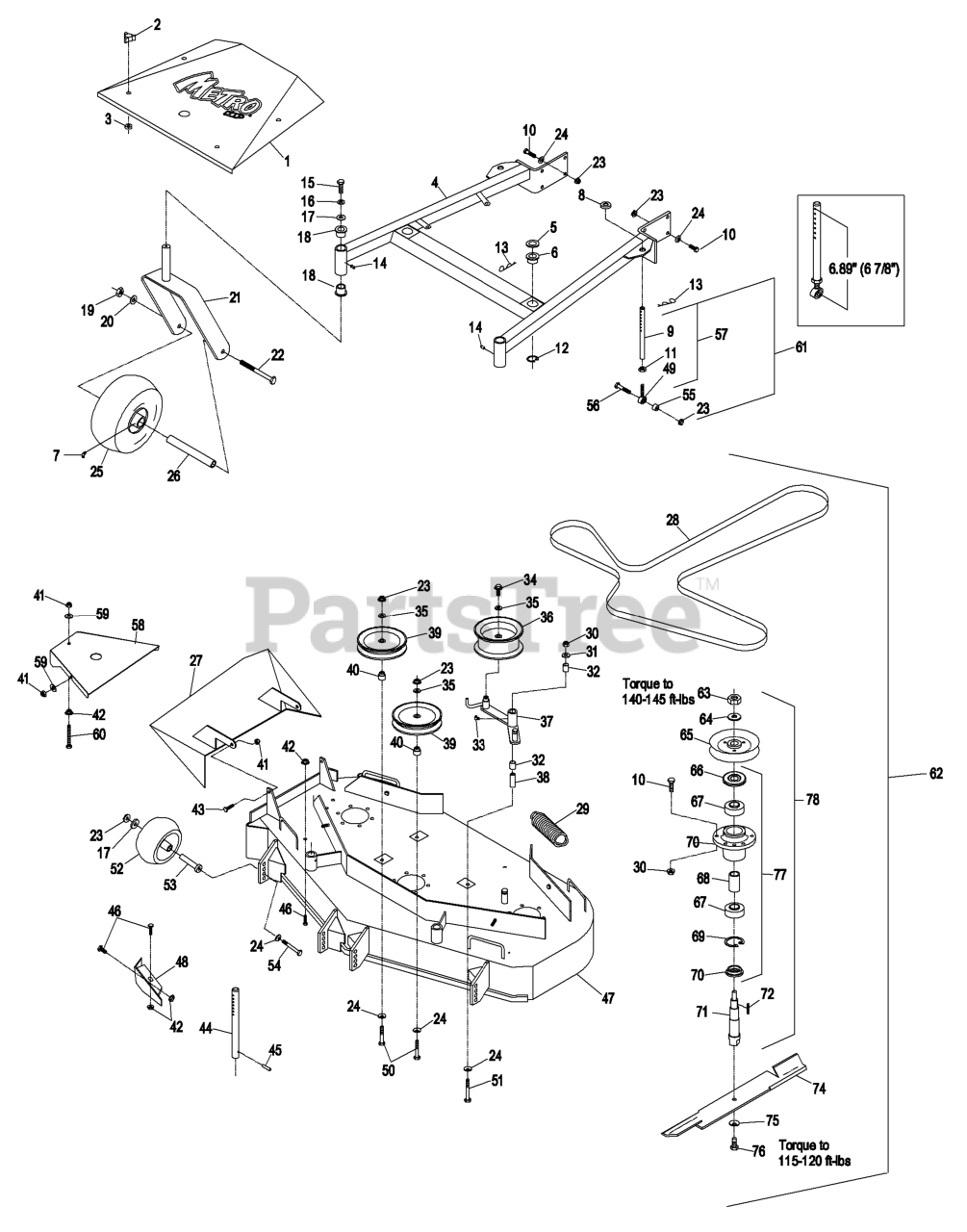

48" Mower Deck Parts Diagram

  • Title
1

Exmark 1-414436

SHIELD W/DECAL,MHP48

$

$

Not available

Exmark 1-413101-01

Shield, Belt

$

$

Currently unavailable

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-414310

DECK SUPPORT W/BSHGS 48"

$1282.99

$

Usually ships in 3-6 days

0

Exmark 1-412110-01

Support Weldmt

$

$

Currently unavailable

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

0

6

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

0

7

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

8

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-413525

LINK,SUPPORT

$49.99

$

In Stock, only 2 left!

0

10

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

12

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, Qty 20+

0

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

15

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

17

$3.49

$

In Stock, Qty 20+

0

18

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

19

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$95.99

$

In Stock, Qty 20+

0

22

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 103-1224

103-2171
(Superseded to 103-2171)

$129.99

$

In Stock, only 4 left!

0

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

0

Exmark 103-2170

BUSHING, SP CASTER

Note: Bushing for semi-pneumatic caster tires can be identified by a groove on the face.

$9.49

$

In Stock, Qty 6

0

26

Exmark 103-2169

SPACER FRONT CASTER

Note: Front caster spacer for semi-pneumatic caster tires can be identified by yellow zinc plating.

$14.99

$

In Stock, Qty 11

0

27

Exmark 103-2431-01

WLD,DISCHARGE CHUTE 36/48

$161.99

$

In Stock, only 1 left!

0

28

Exmark 1-413093

BELT - V, B

$143.99

$

In Stock, only 1 left!

0

29

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

30

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

33

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

34

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 18

0

37

Exmark 1-412394-03

103-8585
(Superseded to 103-8585)

$200.99

$

In Stock, only 1 left!

0

Exmark 1-414398

DISCONTINUED

$

$

Not available

38

Exmark 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

39

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

40

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, Qty 20+

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

$1.49

$

In Stock, Qty 20+

0

43

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-603001

ROD,DECK SUPPORT

$50.99

$

In Stock, only 3 left!

0

45

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

46

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

47

Exmark 1-414384

ASM,DECK W/DECALS TTHP/MH

$2743.99

$

Usually ships in 3-6 days

0

Exmark 1-412106-01

1-414384
(Superseded to 1-414384)

$2743.99

$

Usually ships in 3-6 days

0

48

Exmark 1-522480-01

116-2297-01
(Superseded to 116-2297-01)

$32.99

$

In Stock, only 1 left!

0

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 8

0

50

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

51

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, bushing, and mounting hardware.

$23.99

$

In Stock, Qty 20+

0

53

Exmark 1-603602

BUSHING-ROLLER

$24.99

$

In Stock, Qty 20+

0

54

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

55

$7.49

$

In Stock, only 2 left!

0

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly nominal length is 6.89" (or approximately 6 7/8") between center of ball joint and center of furthest hole. See diagram on next page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear

$154.99

$

In Stock, only 3 left!

0

58

Exmark 103-2970-01

SHIELD,BELT

$37.99

$

In Stock, only 3 left!

0

59

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Exmark 1-800017

BOLT,TAP HH

$7.49

$

In Stock, only 2 left!

0

61

Exmark 1-611216

1-411532
(Superseded to 1-411532)

$154.99

$

In Stock, only 3 left!

0

62

Exmark 103-0321

Assy, Cutting Deck Complete

$

$

Currently unavailable

63

$12.99

$

In Stock, Qty 10

0

64

$5.49

$

In Stock, Qty 20+

0

65

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antisieze.

$75.99

$

In Stock, Qty 8

0

66

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antisieze.

$5.49

$

In Stock, Qty 12

0

67

Exmark 103-2477

BEARING-JACKSHAFT

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antisieze.

$59.99

$

In Stock, Qty 12

0

68

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

69

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

70

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 2 left!

0

71

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (or a food-grade antisieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antisieze.

$96.99

$

In Stock, Qty 6

0

72

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 13

0

73

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 4 left!

0

74

Exmark 103-2527

103-6583-S
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-2517

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK483(48")

$34.99

$

In Stock, only 4 left!

0

Exmark 103-2507

103-6738-S
(Superseded to 103-6738-S)

$31.99

$

In Stock, Qty 7

0

Exmark 103-1577

103-1577-S
(Superseded to 103-1577-S)

$37.99

$

In Stock, Qty 6

0

75

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

76

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 20+

0

77

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 4 left!

0

78

Exmark 103-3207

103-8282
(Superseded to 103-8282)

Note: Complete cutting housings also include items 75 & 76.

$531.99

$

In Stock, only 1 left!

0

79

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

Note: Kit 103-2171 used to install semi-pneumatic casters on machines originally fitted with pneumatic casters.

$129.99

$

In Stock, only 4 left!

0
