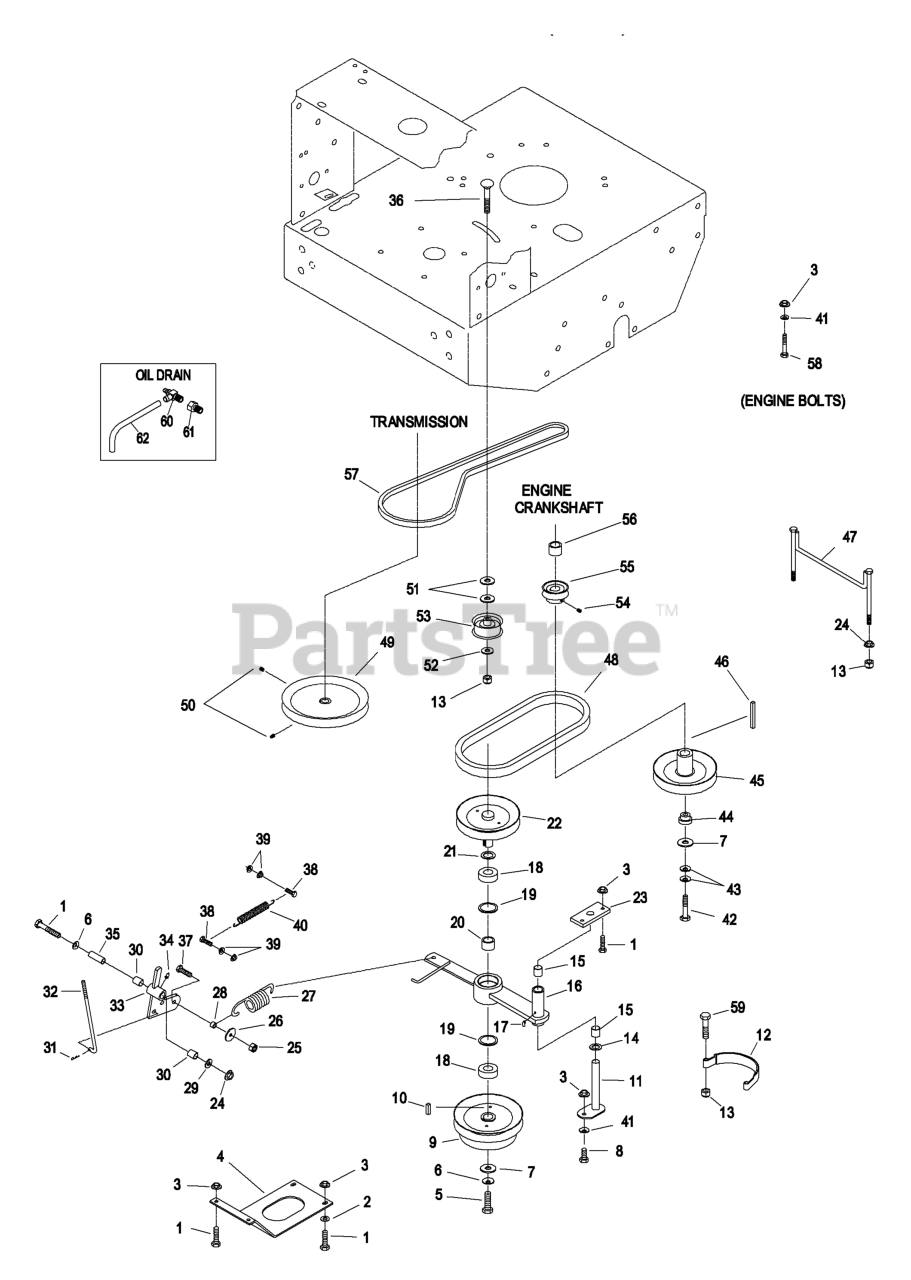

Exmark MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 320000 - 369999) (2002) Engine Deck Group (Cont.) Parts Lookup with Diagrams

1

Exmark 1-413009-01

PLATE-GUARD

$61.99

$

Usually ships in 3-6 days

5

Exmark 1-800521

SCRW,CAP HH

Note: Use Pro-Lock (Nut Type) P/N 1-840022 (.5ml tube) in the following locations: On setscrew locations. On sheave retaining bolt in engine crankshaft. On sheave retaining bolt on clutch arm.

$1.49

$

In Stock, Qty 17

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

7

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

$151.99

$

In Stock, only 1 left!

Exmark 1-513113

SPRING,BELT TENSION

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

$19.99

$

In Stock, only 3 left!

10

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

11

Exmark 1-412138-03

WLD,PIN PIVOT

$40.99

$

In Stock, only 1 left!

12

Exmark 1-413062

BAND,BRAKE BLADE

$

Not available 

13

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

14

Exmark 1-413235

WASHER-SPACER

$1.49

$

In Stock, Qty 6

15

Exmark 1-413207

SLEEVE,BEARING

$13.99

$

In Stock, Qty 7

16

Exmark 1-412417-03

Arm Weldment, Clutch

$

Currently unavailable 

Exmark 1-414418

ASM,CLUTCH ARM W/BEARING

$413.99

$

Usually ships in 3-6 days

17

Exmark 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

18

Exmark 1-413111

BEARING,CLUTCH SHAFT

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

$42.99

$

In Stock, only 4 left!

19

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

20

Exmark 1-413012

SPACER,CLUTCH BEARING

$6.99

$

In Stock, Qty 5

21

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

22

Exmark 1-412011

SHEAVE,6.13 W/SHAFT

$169.99

$

Usually ships in 3-6 days

23

Exmark 1-413049-01

PLATE-CLUTCH PIVOT

$40.99

$

In Stock, only 4 left!

24

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

25

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

26

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

27

Exmark 1-513113

SPRING,BELT TENSION

$19.99

$

In Stock, only 3 left!

28

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

29

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

30

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

31

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

32

Exmark 1-413282

LINKAGE,LOWER

$18.99

$

In Stock, only 2 left!

33

Exmark 1-414143

ASM,PIVOT W/BUSHINGS

$128.99

$

Usually ships in 3-6 days

34

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

35

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

36

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

37

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

38

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

39

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

40

Exmark 1-523498

SPRING,EXTENSION

$9.99

$

In Stock, only 1 left!

41

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

42

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock (Nut Type) P/N 1-840022 (.5ml tube) in the following locations: On setscrew locations. On sheave retaining bolt in engine crankshaft. On sheave retaining bolt on clutch arm.

$6.49

$

In Stock, only 1 left!

43

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

44

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$28.99

$

In Stock, only 1 left!

45

Exmark 1-413339

SHEAVE,ENGINE

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

$84.99

$

In Stock, only 1 left!

46

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 7

47

Exmark 1-412325

GUIDE - BELT

$

Not available 

48

Exmark 1-413096

BELT,BLADE CLUTCH

(Superseded to 1-413096-SL) 

$46.99

$

In Stock, Qty 8

49

Exmark 1-323278

SHEAVE-TRANSMISSION

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

$80.99

$

In Stock, only 3 left!

50

Exmark 3245-41

SCREW-HSH

Note: Use Pro-Lock (Nut Type) P/N 1-840022 (.5ml tube) in the following locations: On setscrew locations. On sheave retaining bolt in engine crankshaft. On sheave retaining bolt on clutch arm.

$2.99

$

In Stock, only 3 left!

51

Exmark 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

52

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

53

Exmark 1-323285

130-8362

(Superseded to 130-8362) 

$38.99

$

In Stock, Qty 7

54

Exmark 1-803310

SCREW-SET

Note: Use Pro-Lock (Nut Type) P/N 1-840022 (.5ml tube) in the following locations: On setscrew locations. On sheave retaining bolt in engine crankshaft. On sheave retaining bolt on clutch arm.

$2.99

$

In Stock, only 1 left!

55

Exmark 103-1666

SHEAVE-TRANSMISSION

Note: Use anti-seize compound in the following locations: Between the sheave and the engine crankshaft. Between the sheave w/shaft and the bearing bores. Between the sheave w/shaft and the sheave w/drum. Between the transmission shaft and the sheave.

$41.99

$

Usually ships in 3-6 days
