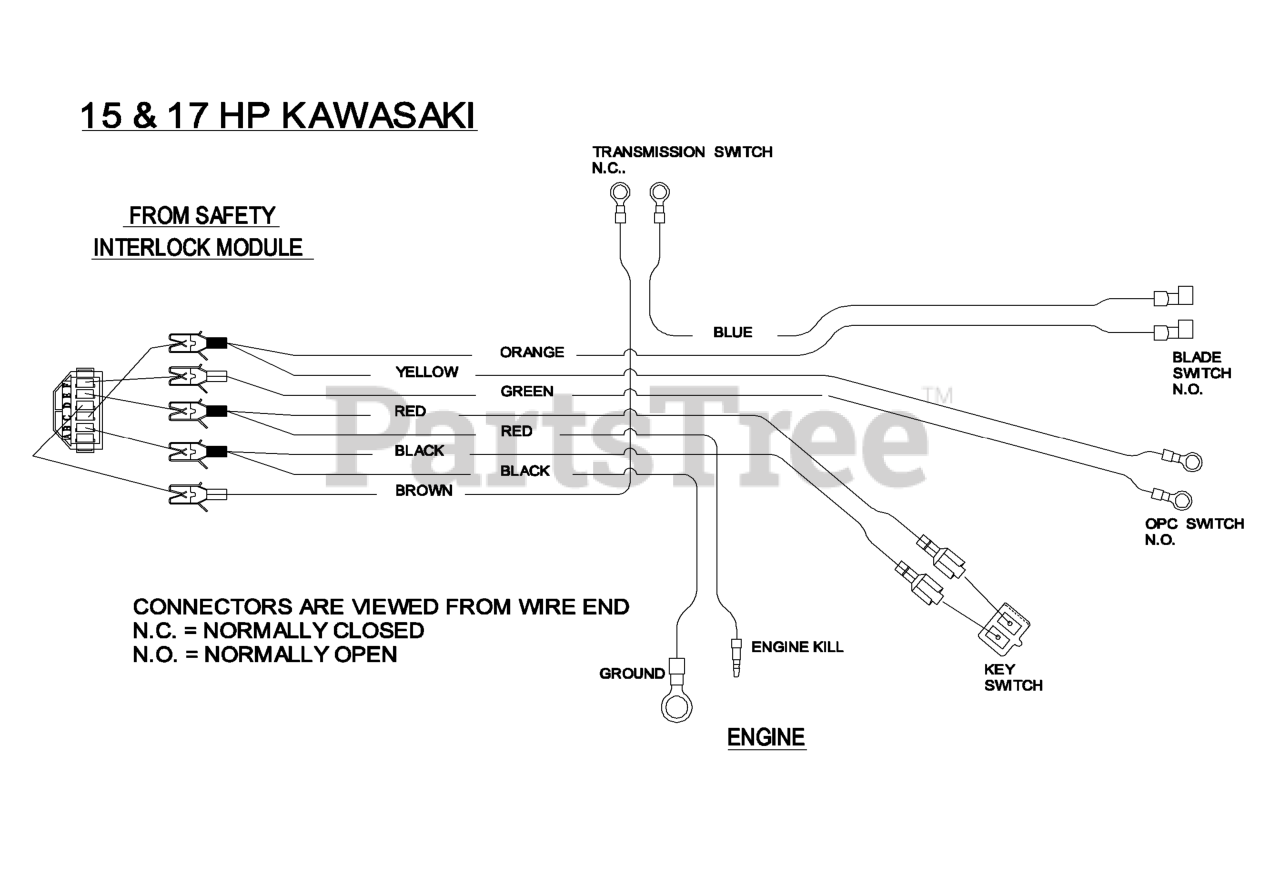

MHP4815KAC - Exmark 48" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 260000 - 319999) (2001) Wiring Diagram - 15 & 17 HP Kawasaki Parts Diagram

48" Metro HP Walk-Behind Mower, 15hp Kawasaki

Wiring Diagram - 15 & 17 HP Kawasaki Parts Diagram
