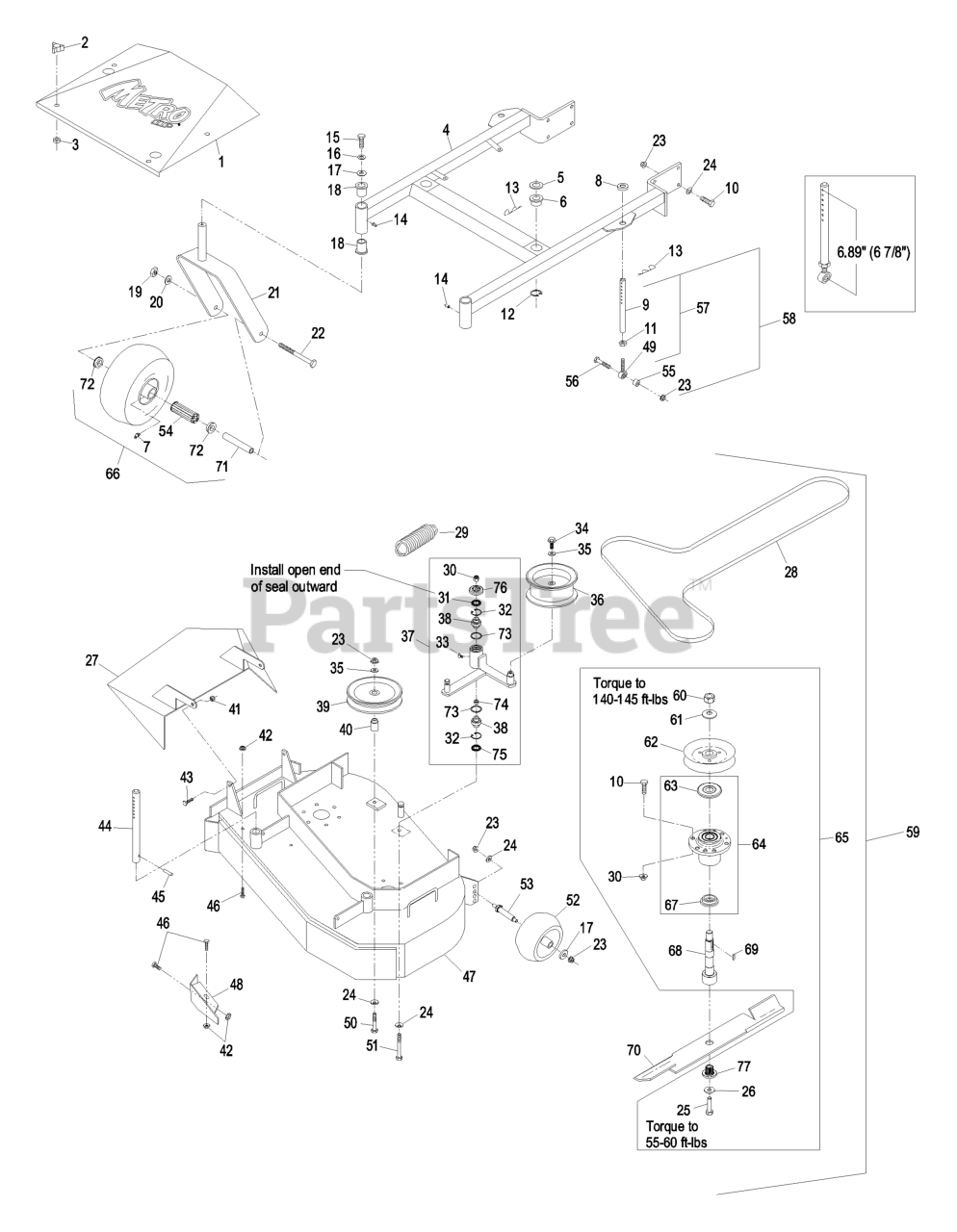

Exmark MHP3615KAC - Exmark 36" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 540000 - 599999) (2005) Mower Deck 36" Parts Lookup with Diagrams

1

Exmark 1-414435

SHIELD W/DECAL,MHP36

$132.99

$

Usually ships in 3-6 days

2

Exmark 1-414309

DECK SUPPORT W/BSHGS 36"

$1000.99

$

Usually ships in 3-6 days

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

6

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

8

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

14

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

19

Exmark 1-522143-01

116-7941-01

(Superseded to 116-7941-01) 

$90.99

$

In Stock, Qty 20+

22

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

25

Exmark 103-2431-01

WLD,DISCHARGE CHUTE 36/48

$144.99

$

In Stock, only 1 left!

28

Exmark 1-413094

BELT,DECK DRIVE

$111.99

$

In Stock, only 1 left!

29

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$28.99

$

In Stock, Qty 7

30

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

32

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

34

Exmark 1-413099

116-4666

(Superseded to 116-4666) 

$67.99

$

In Stock, Qty 17

37

Exmark 103-8584

KIT, DECK IDLER TTHP 36"(

Note: Idler arm kit also includes items 24 & 51.

$215.99

$

Usually ships in 3-6 days

38

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

39

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

41

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

45

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 7

46

Exmark 1-414383

ASM,DECK W/DECALS TTHP/MH

$2638.99

$

Usually ships in 3-6 days

48

Exmark 1-522480-01

116-2297-01

(Superseded to 116-2297-01) 

$28.99

$

In Stock, only 1 left!

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

50

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

$23.99

$

In Stock, Qty 10

53

Exmark 99-2842

126-2928

(Superseded to 126-2928) 

$27.99

$

In Stock, Qty 5

54

Note: Link assembly nominal length is 6.89" (or approximately 6 7/8") between center of ball joint and center of furthest hole. See diagram. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of mower deck

$147.99

$

In Stock, Qty 5

58

Exmark 1-611216

1-411532

(Superseded to 1-411532) 

$147.99

$

In Stock, Qty 5

59

Exmark 103-0320

Asm, Deck Complete

$

Currently unavailable 

60

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item 60.

$12.99

$

In Stock, Qty 13

61

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

62

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$67.99

$

In Stock, Qty 8

63

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!
