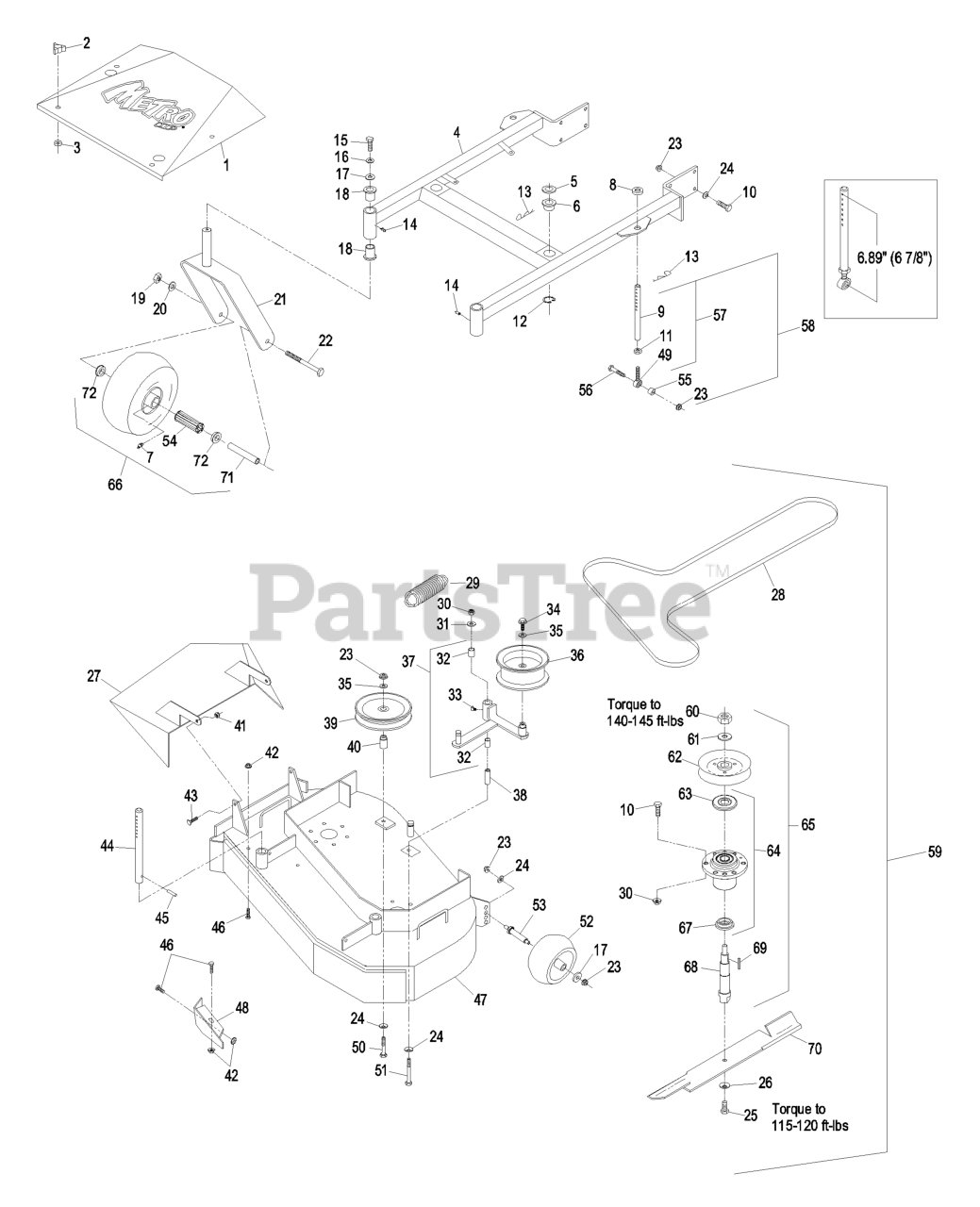

Exmark MHP3615KAC - Exmark 36" Metro HP Walk-Behind Mower, 15hp Kawasaki (SN: 440000 - 509999) (2004) Mower Deck 36" Parts Lookup with Diagrams

1

Exmark 1-414386

116-2710

(Superseded to 116-2710) 

$304.99

$

Usually ships in 3-6 days

2

Exmark 1-414309

DECK SUPPORT W/BSHGS 36"

$1000.99

$

Usually ships in 3-6 days

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

6

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

8

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

14

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

19

Exmark 1-522143-01

116-7941-01

(Superseded to 116-7941-01) 

$90.99

$

In Stock, Qty 7

22

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

25

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

27

Exmark 103-2431-01

WLD,DISCHARGE CHUTE 36/48

$144.99

$

In Stock, only 1 left!

28

Exmark 1-413094

BELT,DECK DRIVE

$111.99

$

In Stock, only 1 left!

29

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$28.99

$

In Stock, Qty 7

30

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

34

Exmark 1-413099

116-4666

(Superseded to 116-4666) 

$67.99

$

In Stock, Qty 17

37

Exmark 1-414144

103-8584

(Superseded to 103-8584) 

$215.99

$

Usually ships in 3-6 days

38

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

39

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

41

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

45

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 7

46

Exmark 1-414383

ASM,DECK W/DECALS TTHP/MH

$2638.99

$

Usually ships in 3-6 days

48

Exmark 1-522480-01

116-2297-01

(Superseded to 116-2297-01) 

$28.99

$

In Stock, only 1 left!

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

50

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

$23.99

$

In Stock, Qty 10

53

Exmark 99-2842

126-2928

(Superseded to 126-2928) 

$27.99

$

In Stock, Qty 5

54

Note: Link assembly nominal length is 6.89" (or approximately 6 7/8") between center of ball joint and center of furthest hole. See diagram on next page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear

$147.99

$

In Stock, Qty 5

58

Exmark 1-611216

1-411532

(Superseded to 1-411532) 

$147.99

$

In Stock, Qty 5

59

Exmark 103-0320

Asm, Deck Complete

$

Currently unavailable 

60

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

61

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

62

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$67.99

$

In Stock, Qty 8

63

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

64

Exmark 103-2547

103-8280

(Superseded to 103-8280) 

$254.99

$

In Stock, only 3 left!

65

Exmark 103-3207

103-8282

(Superseded to 103-8282) 

Note: Complete cutter housings also include items 25 & 26.

$505.99

$

In Stock, only 1 left!

66

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$126.99

$

In Stock, only 4 left!

67

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

68

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$79.99

$

In Stock, Qty 8

69

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 14

70

Exmark 103-6584

103-6584-S

(Superseded to 103-6584-S) 

$31.99

$

In Stock, Qty 5

Exmark 103-6582

103-6582-S

(Superseded to 103-6582-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK363(36").

$31.99

$

In Stock, Qty 20+

Exmark 103-6580

103-6580-S

(Superseded to 103-6580-S) 

$34.99

$

In Stock, Qty 13

Exmark 103-1578

103-1578-S

(Superseded to 103-1578-S) 

$37.99

$

In Stock, only 3 left!

Exmark 103-6337

116-5176-S

(Superseded to 116-5176-S) 

$30.99

$

In Stock, Qty 20+

71

Exmark 103-2169

SPACER FRONT CASTER

Note: Component required for caster assembly version "A", which can be identified by the following: 1) One sidewall of the tire is stamped "Made in the USA". 2) Front caster spacer (item 71) is yellow plated. 3) Caster bushings (item 72) have a groove in the ou

$14.99

$

In Stock, Qty 11

Exmark 1-513547

SPACER

Note: Component required for caster assembly version "B", which can be identified by the following: 1) Sidewalls of tire are not stamped with "Made in the USA". 2) Front caster spacer (item 71) is unplated. 3) Caster bushings (item 72) do not have a groove in o

$12.99

$

In Stock, Qty 6

72

Exmark 103-2170

BUSHING, SP CASTER

Note: Component required for caster assembly version "A", which can be identified by the following: 1) One sidewall of the tire is stamped "Made in the USA". 2) Front caster spacer (item 71) is yellow plated. 3) Caster bushings (item 72) have a groove in the ou

$9.49

$

In Stock, Qty 6

Exmark 1-513810

BUSHING

Note: Component required for caster assembly version "B", which can be identified by the following: 1) Sidewalls of tire are not stamped with "Made in the USA". 2) Front caster spacer (item 71) is unplated. 3) Caster bushings (item 72) do not have a groove in o

$5.99

$

In Stock, Qty 17
