MH 61900 (1695857) - Murray 24" Snow Thrower, 9hp, Canada (2010) Wheels and Tires Group Parts Diagram

24" Snow Thrower, 9hp, Canada

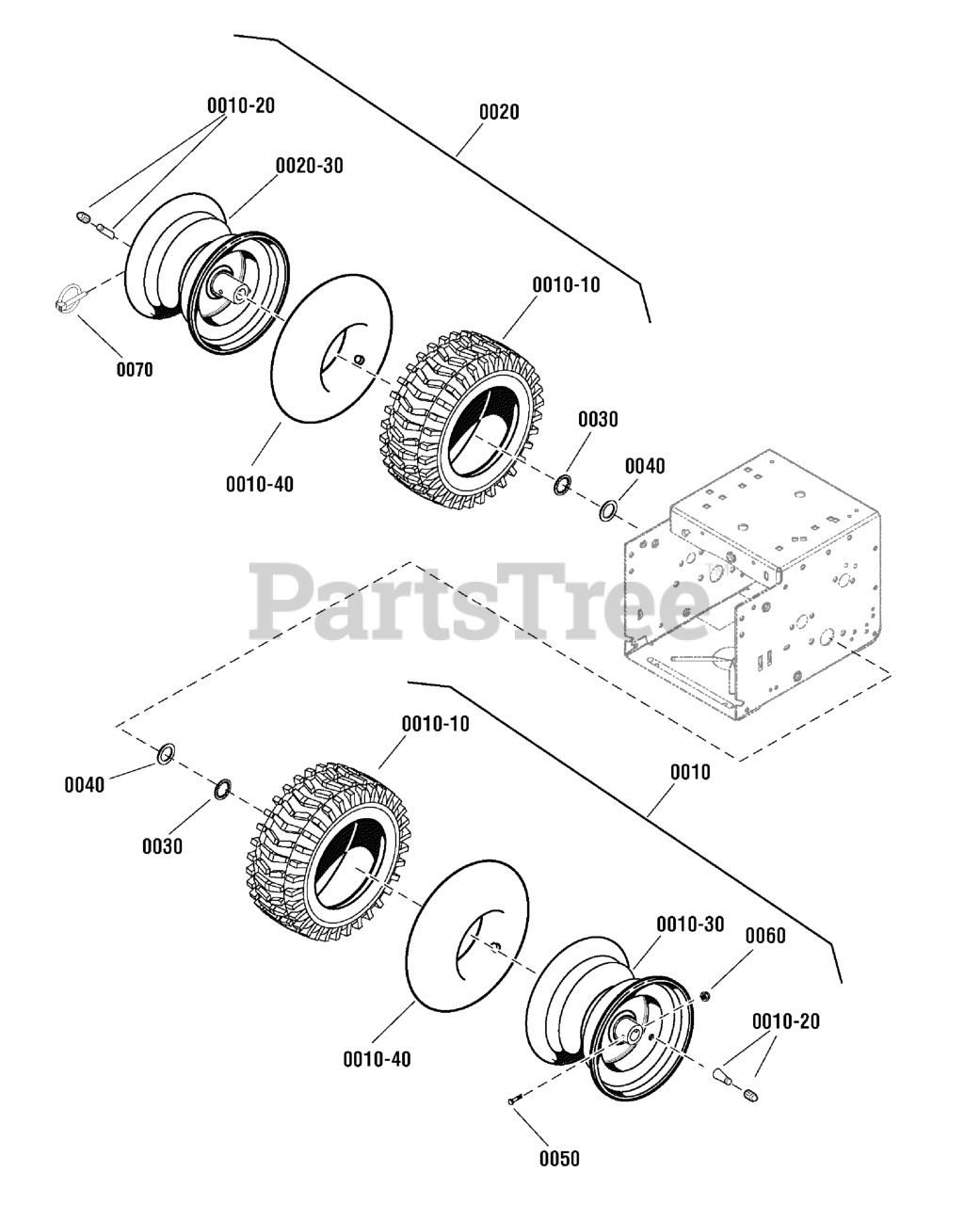

Wheels and Tires Group Parts Diagram

  • Title

0010

Murray 1750448YP

TIRE & RIM, L.H.

Note: (Includes Ref. Nos. 0010-10, 0010-20 & 0010-30)

$152.99

$

Usually ships in 2-12 days

0

0010-10

Murray 1737121YP

TIRE, 13 X 5.00-6 2PLY K478

$87.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

*RIM, 13 X 5, L.H.

$

$

Not available

0010-40

Murray 1664090SM

TUBE, Tire 4.10/3.50-6

$26.99

$

In Stock, only 3 left!

0

0020

Murray 1750449YP

TIRE & RIM, R.H.

Note: (Includes Ref. Nos. 0020-10, 0010-20 & 0010-30)

$137.99

$

Usually ships in 2-12 days

0

0010-10

Murray 1737121YP

TIRE, 13 x 5.00-6 2PLY K478

$87.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0020-30

*RIM, 13 X 5, R.H.

$

$

Not available

0010-40

Murray 1664090SM

TUBE, Tire 4.10/3.50-6

$26.99

$

In Stock, only 3 left!

0

0030

Murray 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

Murray 712120MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0050

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4

$4.99

$

In Stock, only 1 left!

0

0060

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 73842MA

PIN, Klik
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!

0
