MH 61900 (1695857) - Murray 24" Snow Thrower, 9hp, Canada (2010) Discharge Chute Group Parts Diagram

24" Snow Thrower, 9hp, Canada

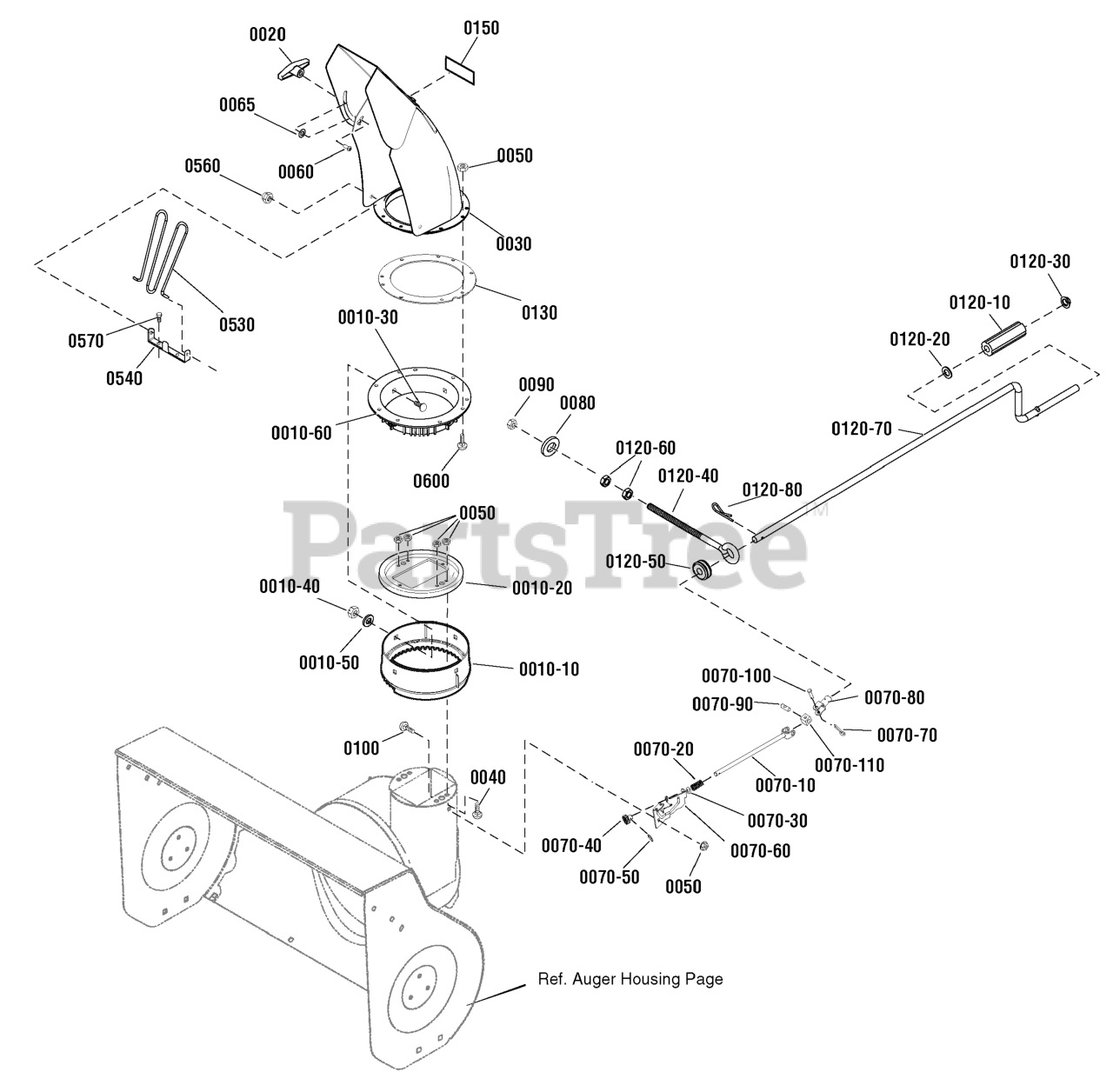

Discharge Chute Group Parts Diagram

  • Title

0010-10

Murray 1501282MA

RING, Outer Chute

$

$

Not available

0010-20

Murray 1501932YZMA

COLLAR, Chute Rotate

$28.99

$

Usually ships in 2-12 days

0

0010-30

Murray 2X100MA

BOLT, Carriage, 5/16-18 x 1
(Superseded to 704217)

$

$

Not available

0010-40

Murray 71038MA

NUT, Hex Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0010-50

Murray 71071MA

WASHER, Flat, 5/8
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0010-60

Murray 1741917YP

RING, Inner Chute

$22.99

$

Usually ships in 2-12 days

0

0020

Murray 1501260MA

KNOB, Wing, 5/16-18

$7.99

$

In Stock, Qty 5

0

0030

Murray 1736313YP

CHUTE ASSEMBLY

$107.99

$

Usually ships in 2-12 days

0

0040

Murray 02X101MA

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

0050

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0060

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0065

Murray 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

0070-10

Murray 1501533YZMA

ROD

$11.99

$

In Stock, only 1 left!

0

0070-20

Murray 164X37MA

SPRING, Compression

$9.49

$

Usually ships in 2-12 days

0

0070-30

Murray 017X48MA

WASHER, Flat, 3/8

$8.49

$

Usually ships in 2-12 days

0

0070-40

Murray 1501067MA

GEAR, 9 Tooth

$17.99

$

Usually ships in 2-12 days

0

0070-50

Murray 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

0070-60

Murray 1740591AYP

BRACKET, Chute Gear

$

$

Not available

0070-70

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 1 left!

0

0070-80

Murray 1501075YZMA

YOKE TUBE ASSEMBLY

$10.99

$

Usually ships in 2-12 days

0

0070-90

Murray 578060MA

PIN, Universal Joint

$7.49

$

Usually ships in 2-12 days

0

0070-100

Murray 578309MA

PIN, Clevis

$5.49

$

In Stock, Qty 6

0

0070-110

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, only 2 left!

0

0080

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0090

Murray 71046MA

NUT, Hex Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 02X101MA

BOLT, Carriage 1/4-20 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

0120-10

Murray 51443MA

GRIP, Chute Crank

$7.49

$

Usually ships in 2-12 days

0

0120-20

Murray 309312MA

WASHER, Flat, 5/8

$4.49

$

In Stock, only 3 left!

0

0120-30

Murray 73664MA

NUT, Push, 3/8

$4.99

$

In Stock, only 3 left!

0

0120-40

Murray 1501456MA

EYEBOLT, 3/8-16 x 6-1/2

$9.49

$

Usually ships in 2-12 days

0

0120-50

Murray 148MA

GROMMET, Eyebolt

$

$

Not available

0120-60

Murray 71045MA

NUT, Hex Jam, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

0120-70

Murray 1501074YZMA

CRANK, Chute Turn

$

$

Not available

0120-80

Murray 711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0130

Murray 1736435AYP

RING, Chute

$12.99

$

Usually ships in 2-12 days

0

0150

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0

0530

Murray 1733475SM

GUARD, Chute

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1737683AYP

BRACKET, Chute Guard

$17.99

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, For 1/8 Stud

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 1925003SM

SCREW, Hex Washer, Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0600

Murray 1935450SM

CAPSCREW, Hex Flange Head, 1/4-20 x 3/4, G5

$4.49

$

Usually ships in 2-12 days

0
