MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 408644346 - 411294211) (Rev A) (2021) Fuel Assembly Parts Diagram

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

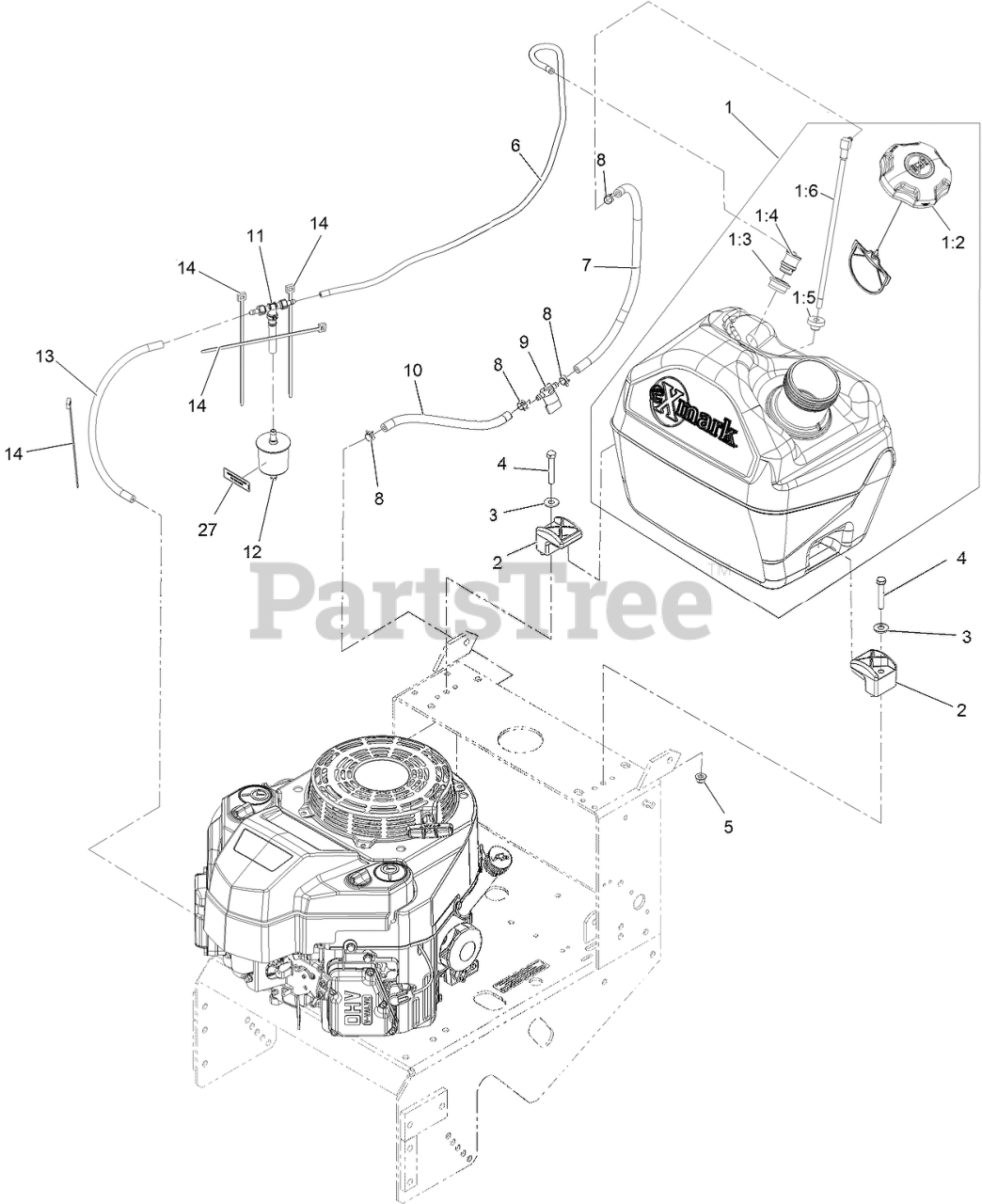

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-2855

ASM, FUEL TANK 5 GAL
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

1:2

Exmark 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

1:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:5

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

1:6

Exmark 109-9364

FITTING, FUEL W/LINE AND SCREEN
(Superseded to 116-2459)

$41.99

$

In Stock, only 2 left!

0

2

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 116-4346

HOSE-EMISSIONS

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 114-4428

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

10

Exmark 109-0293

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 116-5464

TEE AND CHECK

$46.99

$

In Stock, only 1 left!

0

12

Exmark 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

13

Exmark 115-7872

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Exmark 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0

28

Pn 41019-1055 Filter W/6In Fuel Line

Note: Not illustrated | Obtain parts from www.kawpower.com | Not serviced separately

$

$

Not available
