MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 402082300 - 404314158) (2018) Pistol Grip Upper Handle and Controls Parts Diagram

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

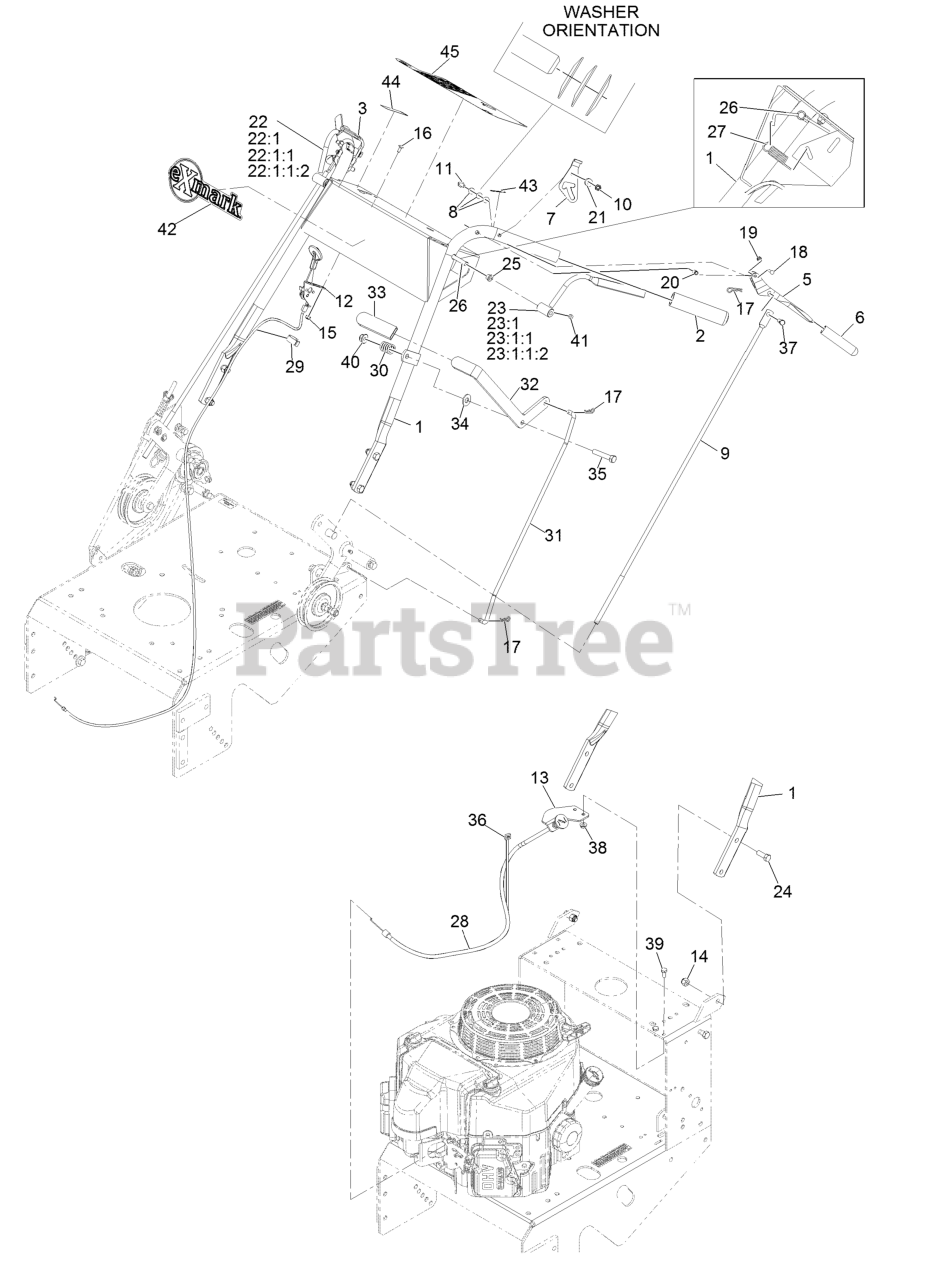

Pistol Grip Upper Handle and Controls Parts Diagram

  • Title

1

Exmark 109-4682-03

Wld,Handle Metro
(Superseded to 109-4695)

$619.99

$

Usually ships in 3-6 days

0

1

Exmark 109-4695

Kit, Handle W/Decals

$619.99

$

Usually ships in 3-6 days

0

2

Exmark 104-9838

Grip-Foam

$6.49

$

In Stock, Qty 20+

0

3

Exmark 137-9508

Latch-LH Thumb,W/Grip

$28.99

$

In Stock, only 2 left!

0

5

Exmark 1-302006

Drive Lever ASM

$59.99

$

In Stock, Qty 6

0

6

Exmark 1-303021

Grip-Lever, Drive

$1.99

$

In Stock, Qty 11

0

7

Exmark 137-9507

Latch-RH Thumb,W/Grip

$28.99

$

In Stock, only 2 left!

0

8

Exmark 1-303435

Washer-Spring Disc 1/4

$1.99

$

In Stock, Qty 20+

0

9

Exmark 1-323359

Linkage-Wheel, Drive

$22.99

$

In Stock, only 4 left!

0

10

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

11

Exmark 321-18

Screw-HH 1/4-20 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

12

Exmark 116-2426

Control, Throttle

$51.99

$

Usually ships in 3-6 days

0

13

Exmark 103-1797-01

Bracket-Cable, Choke

$9.99

$

In Stock, only 1 left!

0

14

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

15

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

17

Exmark 1-806003

Hairpin-Cotter

$1.99

$

In Stock, Qty 20+

0

18

Exmark 1-808250

Pin-Lever, Drive

$2.99

$

In Stock, Qty 20+

0

19

Exmark 1-803001

Nut-Push

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-806340

Pin-Roll
(Superseded to 1-806340)

$5.49

$

In Stock, Qty 15

0

21

Exmark 1-323549

Spacer

$14.99

$

Usually ships in 3-6 days

0

22

Exmark 1-412185-03

Lever-RH

$86.99

$

In Stock, only 3 left!

0

22:1

Lever

$

$

Not available

22:1:1

ASM,Hub/Setscrew

$

$

Not available

22:1:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-412183-03

Lever-LH

$83.99

$

In Stock, only 4 left!

0

23:1

Lever

$

$

Not available

23:1:1

ASM,Hub/Setscrew

$

$

Not available

23:1:1:2

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-303365

Bushing-Nylon

$5.49

$

In Stock, Qty 20+

0

26

Exmark 1-322192-03

Rod Weldmt, Opc

$50.99

$

In Stock, only 1 left!

0

27

Exmark 1-303363

Spring-Extension

$6.99

$

In Stock, Qty 9

0

28

Exmark 103-1796

Cable-Choke

$46.99

$

Usually ships in 3-6 days

0

29

Exmark 1-303088

Clip-Cable

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 1-303160

Spring-Compression

$6.99

$

In Stock, only 2 left!

0

31

Exmark 1-323298

Linkage-Blade, Upper

$95.99

$

Usually ships in 3-6 days

0

32

Exmark 116-6331

Lever ASM

$58.99

$

Usually ships in 3-6 days

0

33

Exmark 1-303020

Grip-Lever

$2.99

$

In Stock, Qty 5

0

34

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

35

Exmark 323-10

Screw-HH 3/8-16 X 2

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

37

Exmark 1-808286

Pin-Clevis

$5.49

$

In Stock, Qty 20+

0

38

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

39

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

40

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-803322

Setscrew-5/16-24 X 5/16

$1.49

$

In Stock, Qty 20+

0

42

Exmark 126-6877

Decal, Exmark Logo

$8.49

$

In Stock, only 3 left!

0

43

Exmark 116-7878

Decal-Neutral Brake

$22.99

$

Usually ships in 3-6 days

0

44

Exmark 106-2733

Decal-Throttle

$11.99

$

Usually ships in 3-6 days

0

45

Exmark 135-2865

Decal-Console

$27.99

$

Usually ships in 3-6 days

0
