MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 400000000 - 402082299) (2017) Engine Deck W/Transmission (cont.) Parts Diagram

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

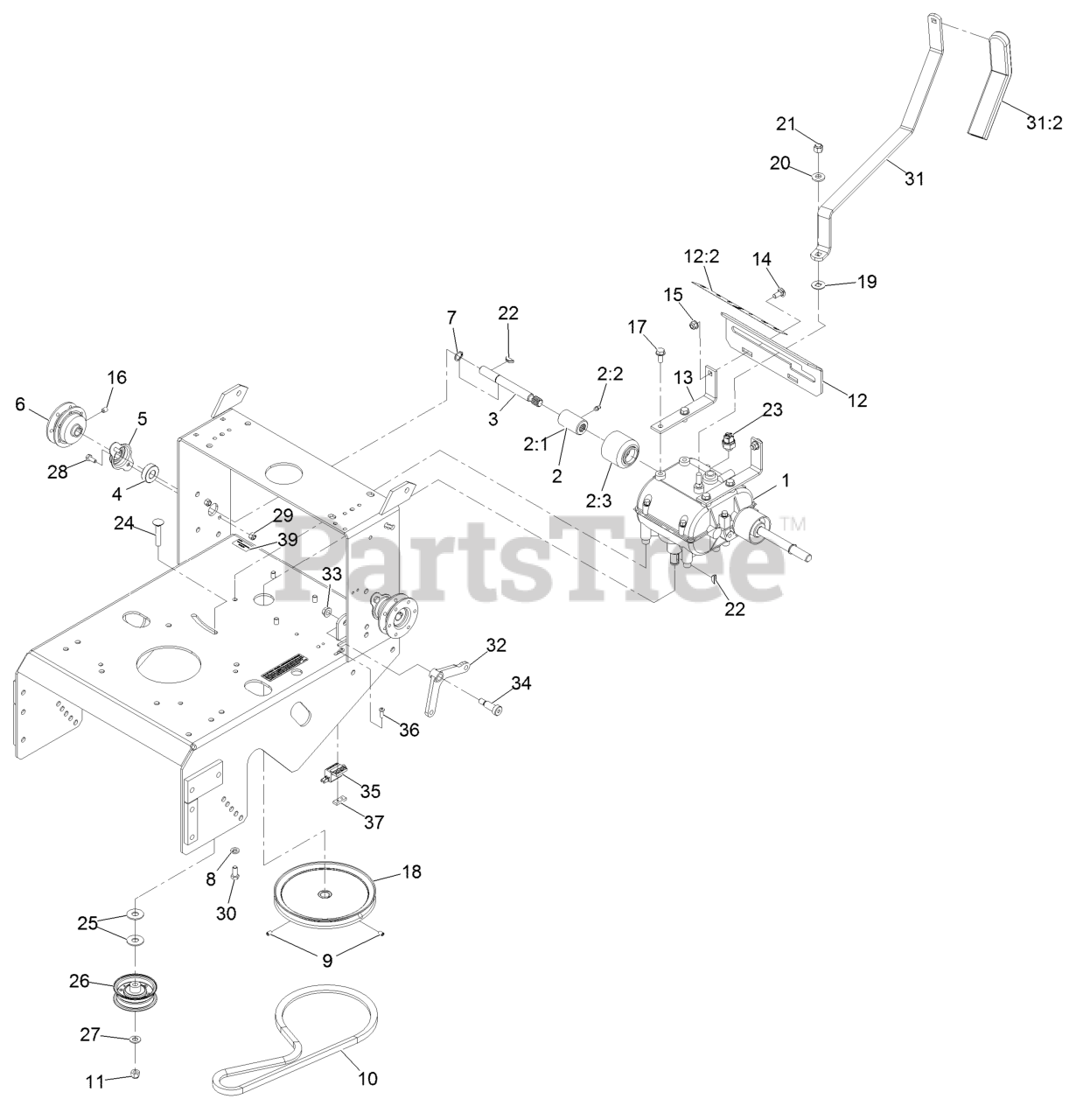

Engine Deck W/Transmission (cont.) Parts Diagram

  • Title

1

Exmark 132-4720

137-4105
(Superseded to 137-4105)

$620.99

$

In Stock, only 1 left!

0

2

Exmark 1-324340

ASM,COUPLER/ZERK

$58.99

$

Usually ships in 3-6 days

0

2:1

Exmark 1-323680

COUPLER

$41.99

$

In Stock, only 2 left!

0

2:2

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

2:3

Exmark 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

3

Exmark 1-323502

SHAFT-TRANSMISSION

$29.99

$

In Stock, Qty 6

0

4

Exmark 1-323252

BEARING-SHAFT

Note: Apply anti-seize compound in bore.

$18.99

$

In Stock, only 2 left!

0

5

Exmark 1-323254

FLANGE-OUTPUT

$10.99

$

In Stock, Qty 11

0

6

Exmark 103-6512

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound in bore.

$119.99

$

Usually ships in 3-6 days

0

7

Exmark 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

8

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

9

Exmark 3245-41

SCREW-HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 5

0

10

Exmark 1-323280

BELT,TRANS DRIVE
(Superseded to 1-323280-SL)

$35.99

$

In Stock, only 4 left!

0

11

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-3498

PLATE,SHIFTER W/DECAL

$59.99

$

Usually ships in 3-6 days

0

12:2

Exmark 98-3264

DECAL-SPEED, GROUND

$31.99

$

Usually ships in 3-6 days

0

13

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$30.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

16

Exmark 3246-18

SETSCREW

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

18

Exmark 1-323278

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound in bore.

$80.99

$

In Stock, Qty 5

0

19

Exmark 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

20

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

22

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 7

0

23

Exmark 1-303282

SWITCH-START, NEUTRAL

$50.99

$

In Stock, only 2 left!

0

24

Exmark 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

26

Exmark 130-8362

PULLEY-IDLER, FLAT

$38.99

$

In Stock, Qty 7

0

27

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Exmark 103-1606

ASM,SHIFT LEVER

$54.99

$

Usually ships in 3-6 days

0

31:2

Exmark 103-1733

GRIP,FOAM

$15.99

$

In Stock, Qty 5

0

32

Exmark 1-303186

BELLCRANK

$58.99

$

In Stock, only 1 left!

0

33

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-603403

BOLT-SHOULDER

$17.99

$

In Stock, only 2 left!

0

35

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

36

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

39

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0
