MGS481GKA322P0 - Exmark 32" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 400000000 - 402082299) (2017) Engine Deck W/Transmission Parts Diagram

32" Metro S-Series Walk-Behind Mower, Kawasaki FS

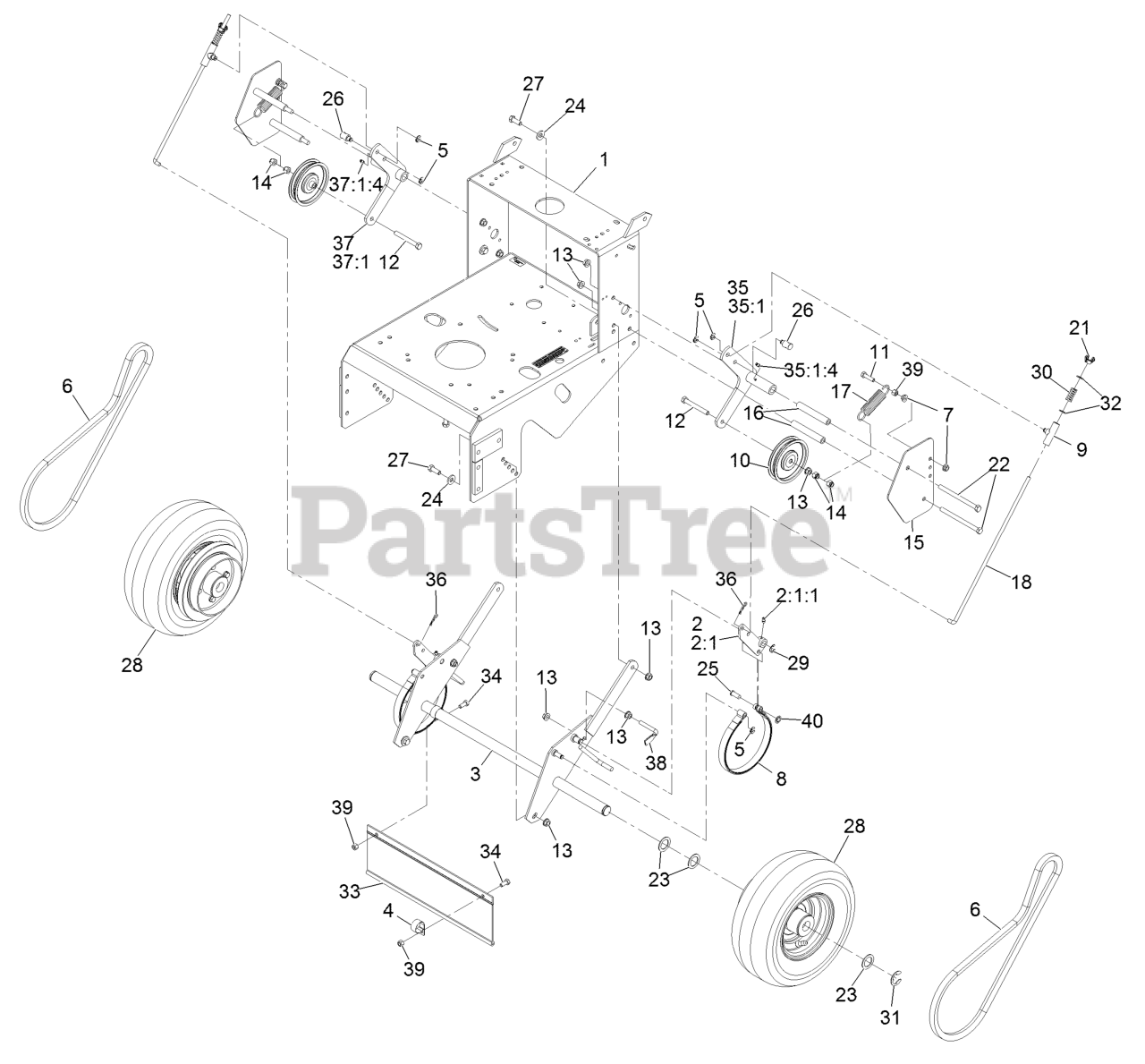

Engine Deck W/Transmission Parts Diagram

  • Title

1

Exmark 116-6131

ASM, METRO ENGINE DECK W/

$948.99

$

Usually ships in 3-6 days

0

2

Exmark 103-1611-03

ARM-BRAKE

$74.99

$

Usually ships in 3-6 days

0

2:1

Wld,Brake Arm

Note: Not serviced separately

$

$

Not available

2:1:1

Exmark 1-324154

ASM,BUSHING/ZERK

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 1-322141-03

AXLE

$475.99

$

Usually ships in 3-6 days

0

4

Exmark 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

6

Exmark 1-323344

BELT-WHEEL, DRIVE

$66.99

$

In Stock, only 2 left!

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-323262

BAND-BRAKE

$87.99

$

In Stock, only 2 left!

0

9

Exmark 110-5866

SWIVEL-BRAKE

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 1-323352

IDLER-WHEEL, DRIVE

$26.99

$

In Stock, only 2 left!

0

11

Exmark 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

13

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-323287-01

SHIELD-WHEEL, DRIVE

$47.99

$

Usually ships in 3-6 days

0

16

Exmark 1-323283

SPACER-SHIELD

$9.49

$

In Stock, Qty 9

0

17

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

18

Exmark 1-323548

LINKAGE-BRAKE

$27.99

$

In Stock, only 1 left!

0

21

Exmark 1-513959

WINGNUT-NYLOCK

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

23

Exmark 1-523157

WASHER-SPACER

Note: QTY As Required

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-543436

WASHER-SPACER

Note: QTY As Required

$1.49

$

In Stock, Qty 9

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 15

0

26

Exmark 103-1864

SWIVEL-LEVER, DRIVE

$11.99

$

Usually ships in 3-6 days

0

27

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-4481

DRIVE WHEEL ASM

$262.99

$

Usually ships in 3-6 days

0

29

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

30

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

31

Exmark 1-808519

RING-SNAP

$2.99

$

In Stock, only 4 left!

0

32

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Exmark 98-3259

SHIELD-TRAILING

$70.99

$

In Stock, only 2 left!

0

34

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Exmark 116-7542-03

ARM-IDLER, LH

$84.99

$

Usually ships in 3-6 days

0

35:1

Idler Arm LH Assy

Note: Not serviced separately

$

$

Not available

35:1:4

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

36

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

37

Exmark 116-7543-03

ARM-IDLER, RH

$84.99

$

Usually ships in 3-6 days

0

37:1

Idler Arm RH Assy

Note: Not serviced separately

$

$

Not available

37:1:4

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

38

Exmark 1-603430

SCRAPER

$19.99

$

Usually ships in 3-6 days

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

40

Exmark 1-803051

RING-RETAIN,PUSH,EXT,FLAT

$2.99

$

In Stock, Qty 20+

0
