MGS481CKA48300 - Exmark 48" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 402082300 - 404314158) (2018) Engine Deck W/Transmission (cont.) Parts Diagram

48" Metro S-Series Walk-Behind Mower, Kawasaki FS

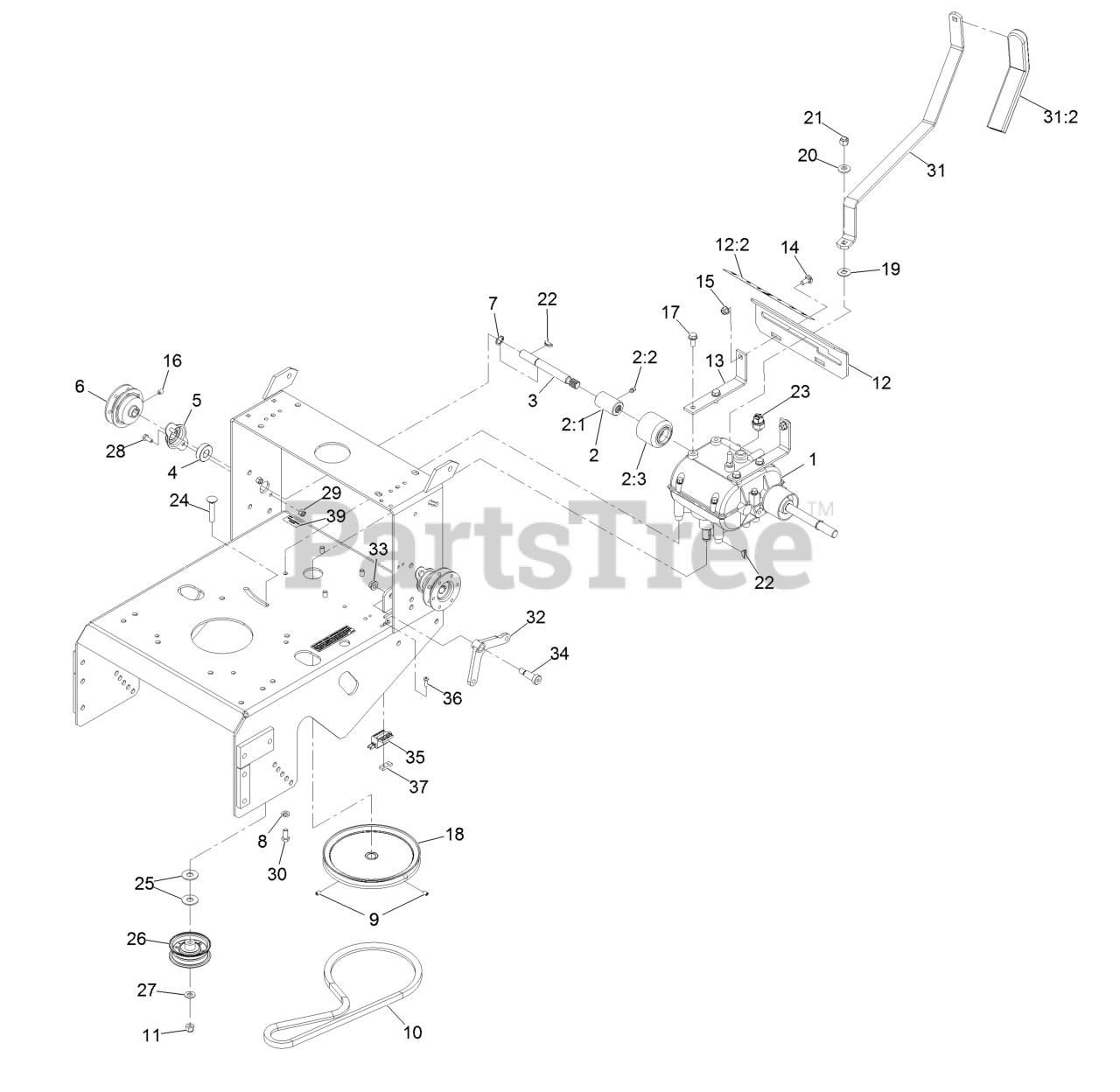

Engine Deck W/Transmission (cont.) Parts Diagram

  • Title

1

Exmark 137-4105

Transmission-5 Speed

$620.99

$

In Stock, only 1 left!

0

2

Exmark 1-324340

Coupling, W/Guard And Zerk

$58.99

$

Usually ships in 3-6 days

0

2:1

Exmark 1-323680

Coupler

$41.99

$

In Stock, only 2 left!

0

2:2

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0

2:3

Exmark 51-4220

Guard-Coupler

$19.99

$

In Stock, only 1 left!

0

3

Exmark 1-323502

Shaft-Transmission

$29.99

$

In Stock, Qty 6

0

4

Exmark 1-323252

Bearing-Shaft

$18.99

$

In Stock, only 2 left!

0

5

Exmark 1-323254

Flange-Output

$10.99

$

In Stock, Qty 11

0

6

Exmark 103-6511

Sheave-Transmission

$119.99

$

In Stock, only 4 left!

0

7

Exmark 32151-62

Ring-Retaining

$1.99

$

In Stock, Qty 20+

0

8

Exmark 1-805005

Washer-Lock 5/16 Heavy

$1.49

$

In Stock, Qty 12

0

9

Exmark 3245-41

Setscrew-1/4-20 X 3/8

$2.99

$

In Stock, Qty 5

0

10

Exmark 1-323280

Belt, Transmission Drive
(Superseded to 1-323280-SL)

$35.99

$

In Stock, only 4 left!

0

11

Exmark 3296-39

Nut-Nyloc 3/8-16

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-3498

Asm, Shifter Plate W/ Decals

$59.99

$

Usually ships in 3-6 days

0

12:2

Exmark 98-3264

Decal-Speed, Ground

$31.99

$

Usually ships in 3-6 days

0

13

Exmark 1-323389-03

Bracket-Plate, Shift

$30.99

$

Usually ships in 3-6 days

0

14

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

15

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 19

0

16

Exmark 3246-18

Setscrew-5/16-18 X 3/8

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 32144-11

Screw-HWH 5/16-18 X 3/4 Tf

$7.99

$

In Stock, Qty 6

0

18

Exmark 1-323278

Sheave-Transmission

$80.99

$

In Stock, Qty 5

0

19

Exmark 1-323379

Washer

$3.49

$

In Stock, only 2 left!

0

20

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3296-6

Nut-Nyloc 3/8-24

$1.99

$

In Stock, Qty 20+

0

22

Exmark 3257-5

Key-Woodruff #9 3/4 X 3/16

$5.99

$

In Stock, Qty 7

0

23

Exmark 1-303282

Switch-Start, Neutral

$50.99

$

In Stock, only 2 left!

0

24

Exmark 3231-6

Bolt-Carriage 3/8-16 X 2

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3256-5

Washer-7/16 Std

$0.99

$

In Stock, Qty 9

0

26

Exmark 130-8362

Pulley-Idler, Flat

$38.99

$

In Stock, Qty 7

0

27

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

28

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

30

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

31

Exmark 103-1606

Lever, Shift W/Grip

$54.99

$

Usually ships in 3-6 days

0

31:2

Exmark 103-1733

Grip Foam

$15.99

$

In Stock, Qty 5

0

32

Exmark 1-303186

Bellcrank

$58.99

$

In Stock, only 1 left!

0

33

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-603403

Bolt-Shoulder

$17.99

$

In Stock, only 2 left!

0

35

Exmark 1-513051

Switch-N.O.

$19.99

$

In Stock, Qty 20+

0

36

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

0

37

Exmark 1-633181

Plate-Tapped

$6.49

$

In Stock, only 2 left!

0

39

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0
