MGS481CKA48300 - Exmark 48" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 315000000 - 315999999) (2015) ECS Upper Handle and Controls Parts Diagram

48" Metro S-Series Walk-Behind Mower, Kawasaki FS

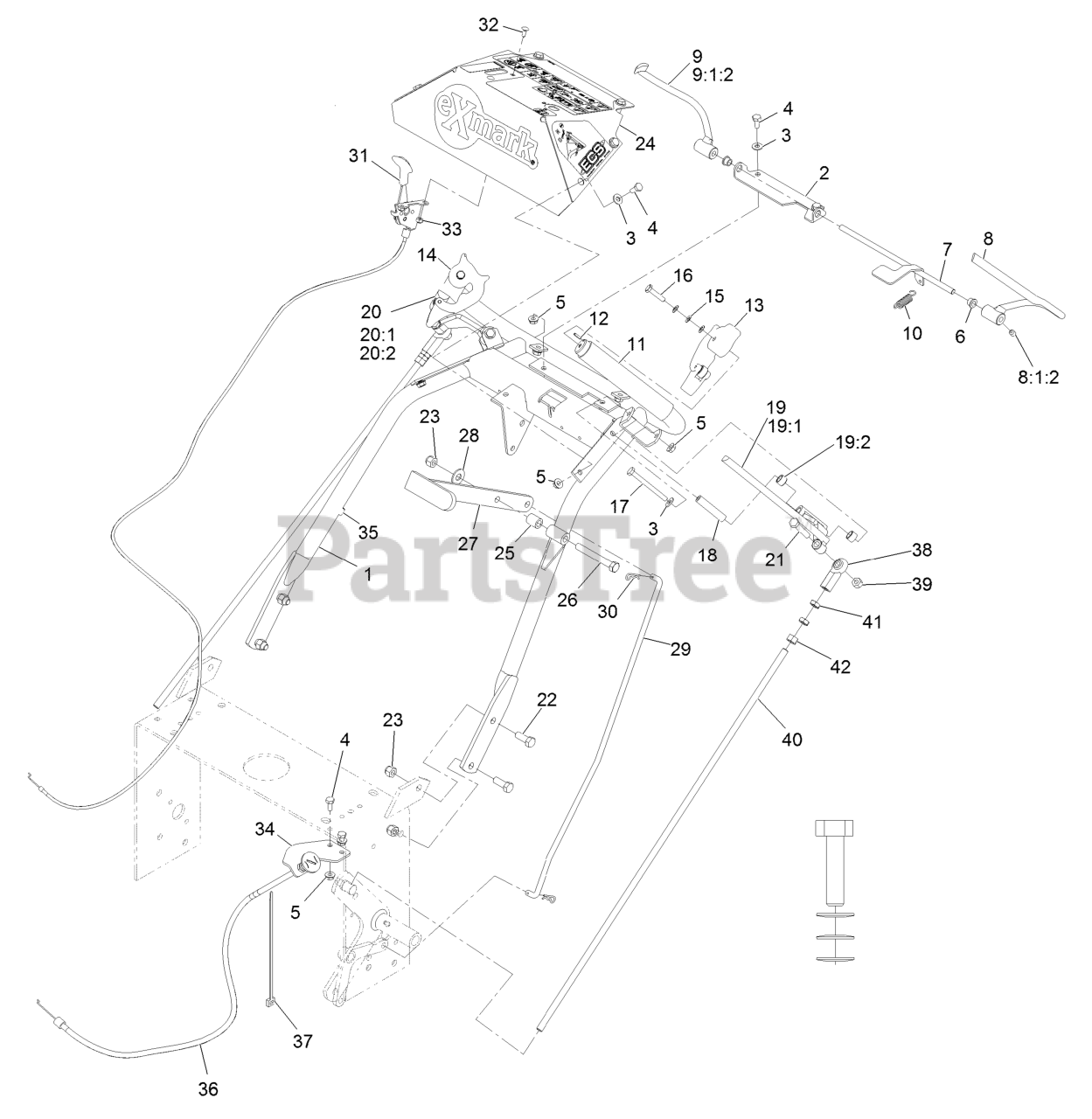

ECS Upper Handle and Controls Parts Diagram

  • Title

1

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$674.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0489-03

BRACKET,OPC AXLE

$25.99

$

In Stock, Qty 6

0

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

7

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$47.99

$

In Stock, Qty 20+

0

8

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 20+

0

8:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 19

0

9:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

0

11

Exmark 103-0815

GRIP-BAR, HANDLE

$12.99

$

In Stock, Qty 9

0

12

Exmark 126-2925

PIN-SPRING

$1.49

$

In Stock, only 2 left!

0

13

Exmark 103-1631

ASM,LH THUMB LATCH

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 103-1630

ASM,RH THUMB LATCH

$37.99

$

In Stock, only 4 left!

0

15

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

16

Exmark 103-0235

SCREW-HH

$1.49

$

In Stock, Qty 19

0

17

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

18

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

19

Exmark 103-2514

DRIVE LEVER-ASM, LH

$140.99

$

In Stock, only 4 left!

0

19:1

Exmark 116-4081

WLD,LH DRIVE LEVER

$56.99

$

In Stock, only 1 left!

0

19:2

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

20

Exmark 103-2513

DRIVE LEVER-ASM, RH

$140.99

$

In Stock, only 1 left!

0

20:1

Exmark 116-4082

WLD,RH DRIVE LEVER

$56.99

$

Usually ships in 3-6 days

0

20:2

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

21

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

22

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Exmark 109-4934

ASM, CONSOLE W/DECALS

$283.99

$

Usually ships in 3-6 days

0

25

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

26

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

27

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$22.99

$

Usually ships in 3-6 days

0

28

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

29

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$20.99

$

Usually ships in 3-6 days

0

30

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-2426

CONTROL, THROTTLE

$48.99

$

In Stock, Qty 14

0

31

Exmark 116-2426RT02

Control, Throttle

$

$

Currently unavailable

32

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

0

35

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, Qty 6

0

36

Exmark 103-1796RT01

Cable-Choke

$

$

Currently unavailable

37

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

38

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 4 left!

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$26.99

$

In Stock, only 2 left!

0

41

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

42

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0
