MGS481CKA48300 - Exmark 48" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 315000000 - 315999999) (2015) Caster Wheel Assembly No. 103-1236 Parts Diagram

48" Metro S-Series Walk-Behind Mower, Kawasaki FS

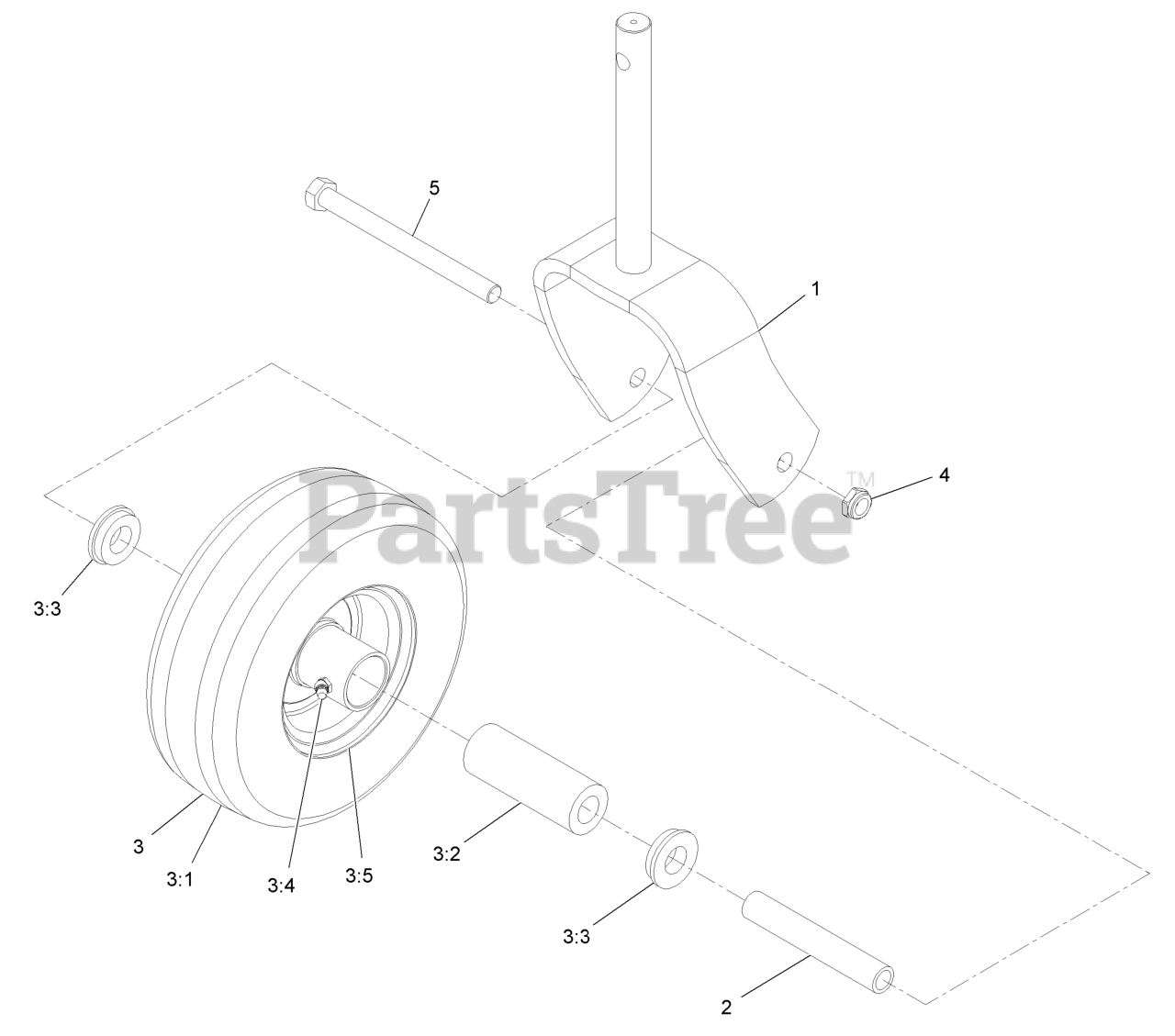

Caster Wheel Assembly No. 103-1236 Parts Diagram

  • Title
1

Exmark 116-7942-01

FORK-CASTER

$95.99

$

In Stock, only 1 left!

0

2

$12.99

$

In Stock, Qty 6

0

3

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

3:1

Tire

Note: Not serviced separately

$

$

Not available

3:2

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

3:3

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

3:4

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

3:5

Wheel

Note: Not serviced separately

$

$

Not available

4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

5

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0
