MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 408644346 - 411294211) (Rev A) (2021) Engine Assembly Parts Diagram

36" Metro S-Series Walk-Behind Mower, Kawasaki FS

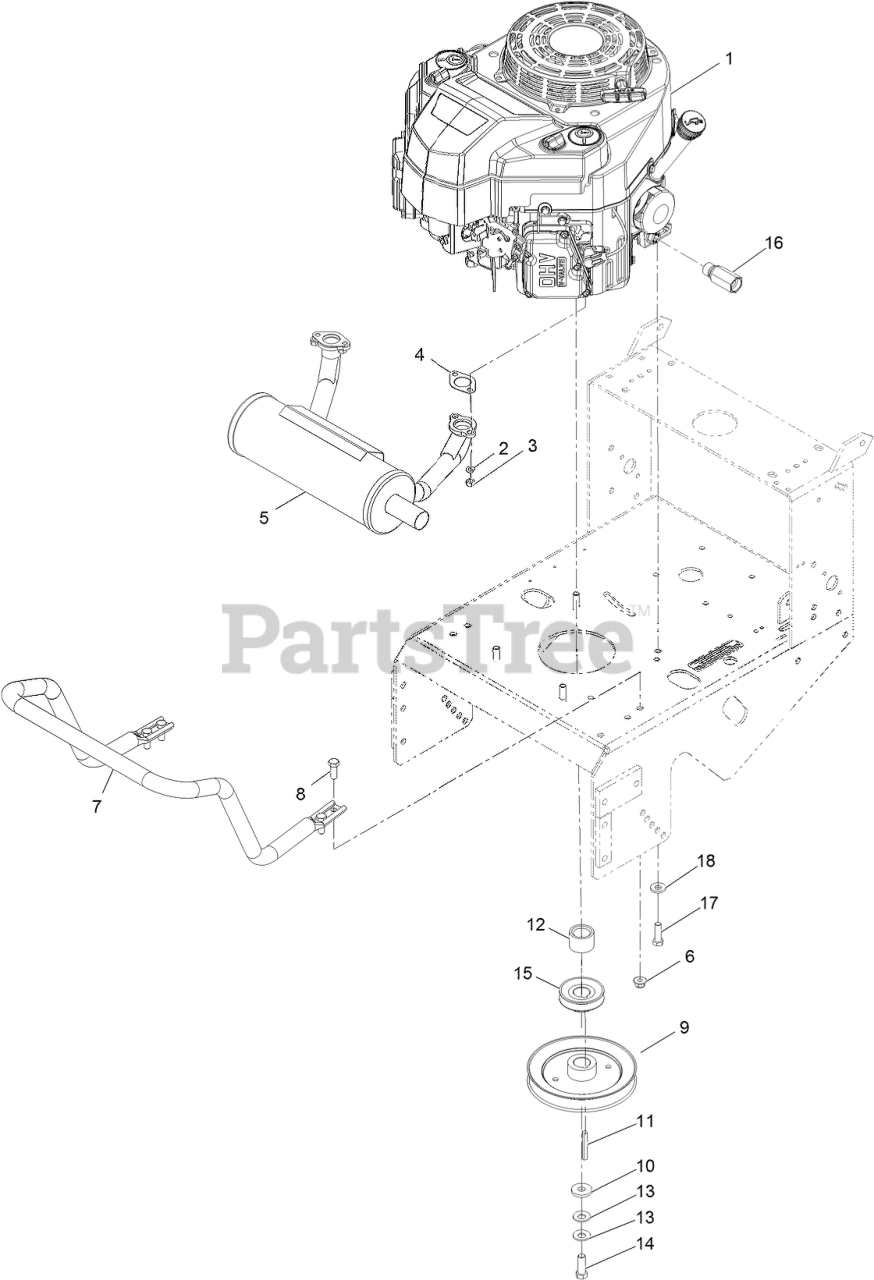

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

2

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

4

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 116-3734

MUFFLER-HORIZONTAL, OFFSE

$325.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 135-4729-03

TUBE-GUARD MUFFLER

$88.99

$

Usually ships in 3-6 days

0

8

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 103-1668

1-643292
(Superseded to 1-643292)

Note: Apply anti-seize compound in bore.

$104.99

$

In Stock, only 3 left!

0

10

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

11

Exmark 103-4177

KEY

$5.49

$

In Stock, only 1 left!

0

12

Exmark 1-633453

SPACER-CLUTCH

$19.99

$

In Stock, only 3 left!

0

13

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-3702

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 103-1666

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound in bore.

$41.99

$

In Stock, only 1 left!

0

16

Exmark 103-2587

ADAPTER

$27.99

$

Usually ships in 3-6 days

0

17

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
