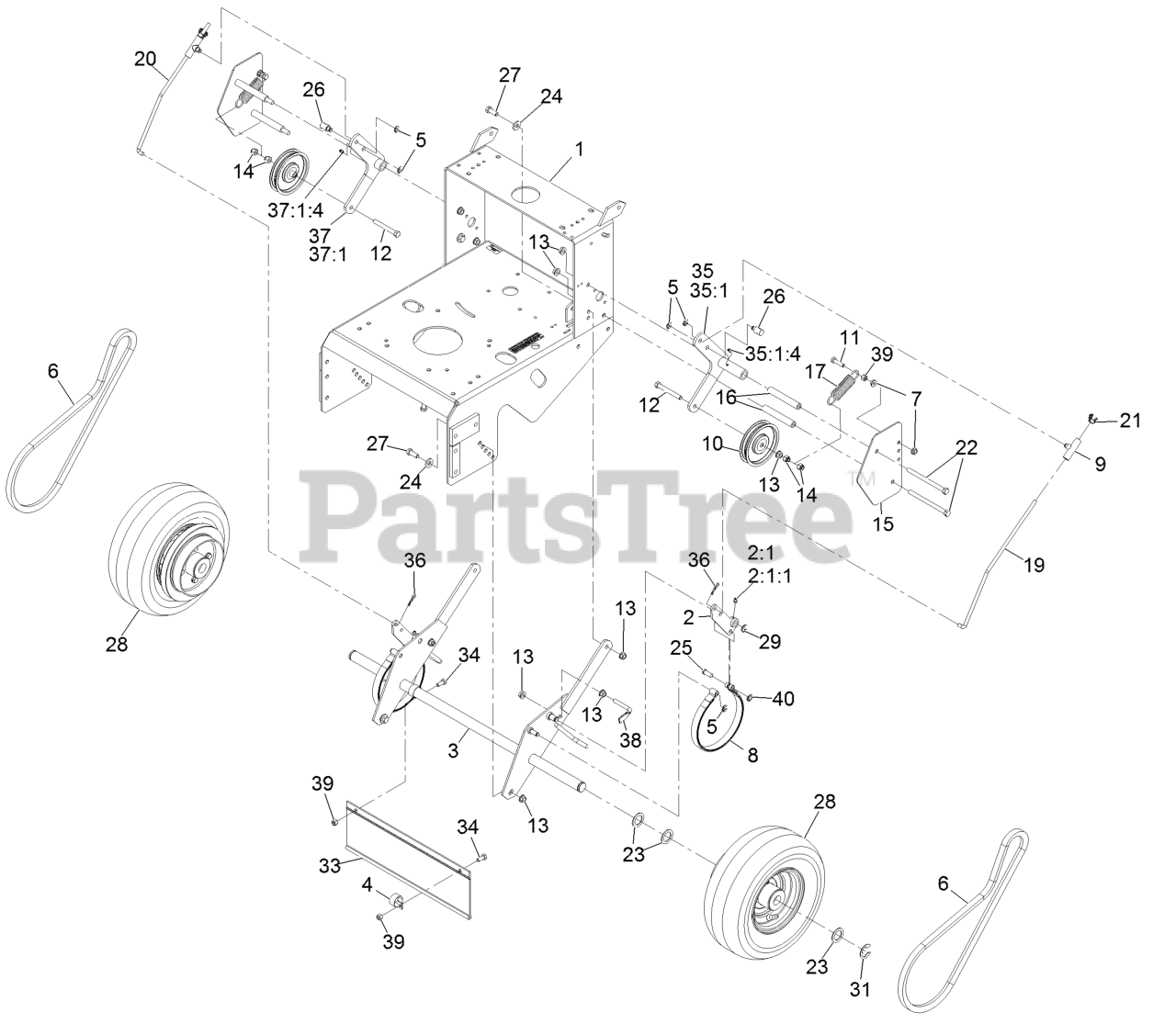

MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 402082300 - 404314158) (2018) Engine Deck W/Transmission Parts Diagram

36" Metro S-Series Walk-Behind Mower, Kawasaki FS

Engine Deck W/Transmission Parts Diagram

  • Title

1

Exmark 116-6131

ASM, Metro Engine Deck W/Decals

$948.99

$

Usually ships in 3-6 days

0

2

Exmark 103-1611-03

Arm-Brake

$74.99

$

Usually ships in 3-6 days

0

2:1

Wld,Brake Arm

$

$

Not available

2:1:1

Exmark 1-324154

Asm,Bushing/Zerk

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 1-322117-03

Axle

$361.99

$

Usually ships in 3-6 days

0

4

Exmark 2412-104

Clamp-R

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 32151-47

Ring-Retaining

$2.99

$

In Stock, only 3 left!

0

6

Exmark 1-323288

Belt, Wheel Drive
(Superseded to 1-323288-SL)

$118.99

$

In Stock, Qty 16

0

7

Exmark 32128-20

Nut-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-323262

Band-Brake

$87.99

$

In Stock, only 2 left!

0

9

Exmark 110-5866

Swivel-Brake

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 1-323277

Idler-Wheel, Drive

$31.99

$

In Stock, only 2 left!

0

11

Exmark 116-3515

Screw-HH, Special

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 99-8664

Screw-HH

$2.99

$

In Stock, Qty 5

0

13

Exmark 3290-357

Nut-HHF, Whiz

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-323287-01

Shield-Wheel, Drive

$47.99

$

Usually ships in 3-6 days

0

16

Exmark 1-323283

Spacer-Shield

$9.49

$

In Stock, Qty 9

0

17

Exmark 1-603402

Spring-Extension

$7.99

$

In Stock, only 3 left!

0

19

Exmark 103-1619

Linkage,LH Brake

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 103-1620

Linkage,RH Brake

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 1-513959

Wingnut-Nylock

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 323-39

Screw-HH

$11.99

$

In Stock, Qty 20+

0

23

Exmark 1-523157

Washer-Spacer

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-543436

Washer-Spacer

$1.49

$

In Stock, Qty 9

0

24

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

25

Exmark 1-323307

Pin-Clevis

$5.49

$

In Stock, Qty 15

0

26

Exmark 103-1618

Swivel, Short

$17.99

$

In Stock, Qty 6

0

27

Exmark 323-6

Screw-HH

$2.49

$

In Stock, Qty 20+

0

28

Exmark 126-4482

Drive Wheel ASM

$304.99

$

Usually ships in 3-6 days

0

29

Exmark 32120-47

Ring-Retaining, External

$1.49

$

In Stock, Qty 8

0

31

Exmark 1-808519

Ring-Snap

$2.99

$

In Stock, only 4 left!

0

33

Exmark 98-3259

Shield-Trailing

$70.99

$

In Stock, only 2 left!

0

34

Exmark 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

35

Exmark 116-7542-03

Arm-Idler, LH

$84.99

$

Usually ships in 3-6 days

0

35:1

Idler Arm LH Assy

$

$

Not available

35:1:4

Exmark 302-19

Fitting-Grease

$2.49

$

In Stock, Qty 8

0

36

Exmark 1-806003

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

37

Exmark 116-7543-03

Arm-Idler, RH

$84.99

$

Usually ships in 3-6 days

0

37:1

Idler Arm RH Assy

$

$

Not available

37:1:4

Exmark 302-19

Fitting-Grease

$2.49

$

In Stock, Qty 8

0

38

Exmark 1-412358

Scraper

$31.99

$

In Stock, only 2 left!

0

39

Exmark 3296-29

Nut-Lock, NI

$2.49

$

In Stock, Qty 11

0

40

Exmark 1-803051

Ring-Retain,Push,EXT,Flat

$2.99

$

In Stock, Qty 20+

0
