Exmark MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 400000000 - 402082299) (2017) ECS Upper Handle and Controls Parts Lookup with Diagrams

1

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$608.99

$

Usually ships in 3-6 days

2

Exmark 103-0489-03

BRACKET,OPC AXLE

$24.99

$

In Stock, Qty 6

3

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

4

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

5

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

6

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

7

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 20+

8

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$33.99

$

In Stock, Qty 20+

8:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 5

9

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$33.99

$

In Stock, Qty 19

9:1:2

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 5

10

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

11

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

12

Exmark 126-2925

PIN-SPRING

$1.49

$

In Stock, only 2 left!

13

Exmark 103-1631

ASM,LH THUMB LATCH

$33.99

$

Usually ships in 3-6 days

14

Exmark 103-1630

ASM,RH THUMB LATCH

$33.99

$

In Stock, only 4 left!

15

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

16

Exmark 103-0235

SCREW-HH

$1.49

$

In Stock, Qty 19

17

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

18

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

19

Exmark 103-2514

DRIVE LEVER-ASM, LH

$127.99

$

In Stock, only 4 left!

19:1

Exmark 116-4081

WLD,LH DRIVE LEVER

$51.99

$

In Stock, only 1 left!

19:2

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

In Stock, only 2 left!

20

Exmark 103-2513

DRIVE LEVER-ASM, RH

$127.99

$

In Stock, only 1 left!

20:1

Exmark 116-4082

WLD,RH DRIVE LEVER

$51.99

$

Usually ships in 3-6 days

20:2

Exmark 126-9366

BUSHING, SLEEVE

$2.99

$

In Stock, only 2 left!

21

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

22

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

23

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

24

Exmark 109-4934

ASM, CONSOLE W/DECALS

$255.99

$

Usually ships in 3-6 days

25

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

26

Exmark 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

27

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$20.99

$

Usually ships in 3-6 days

28

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

29

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$17.99

$

Usually ships in 3-6 days

30

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

31

Exmark 116-2426

CONTROL, THROTTLE

$44.99

$

In Stock, Qty 15

31

Exmark 116-2426RT02

Control, Throttle

$

Currently unavailable 

32

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

34

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

35

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

36

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, only 1 left!

36

Exmark 103-1796RT01

Cable-Choke

$

Currently unavailable 

37

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 8

38

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

40

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$23.99

$

In Stock, only 2 left!

41

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

42

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

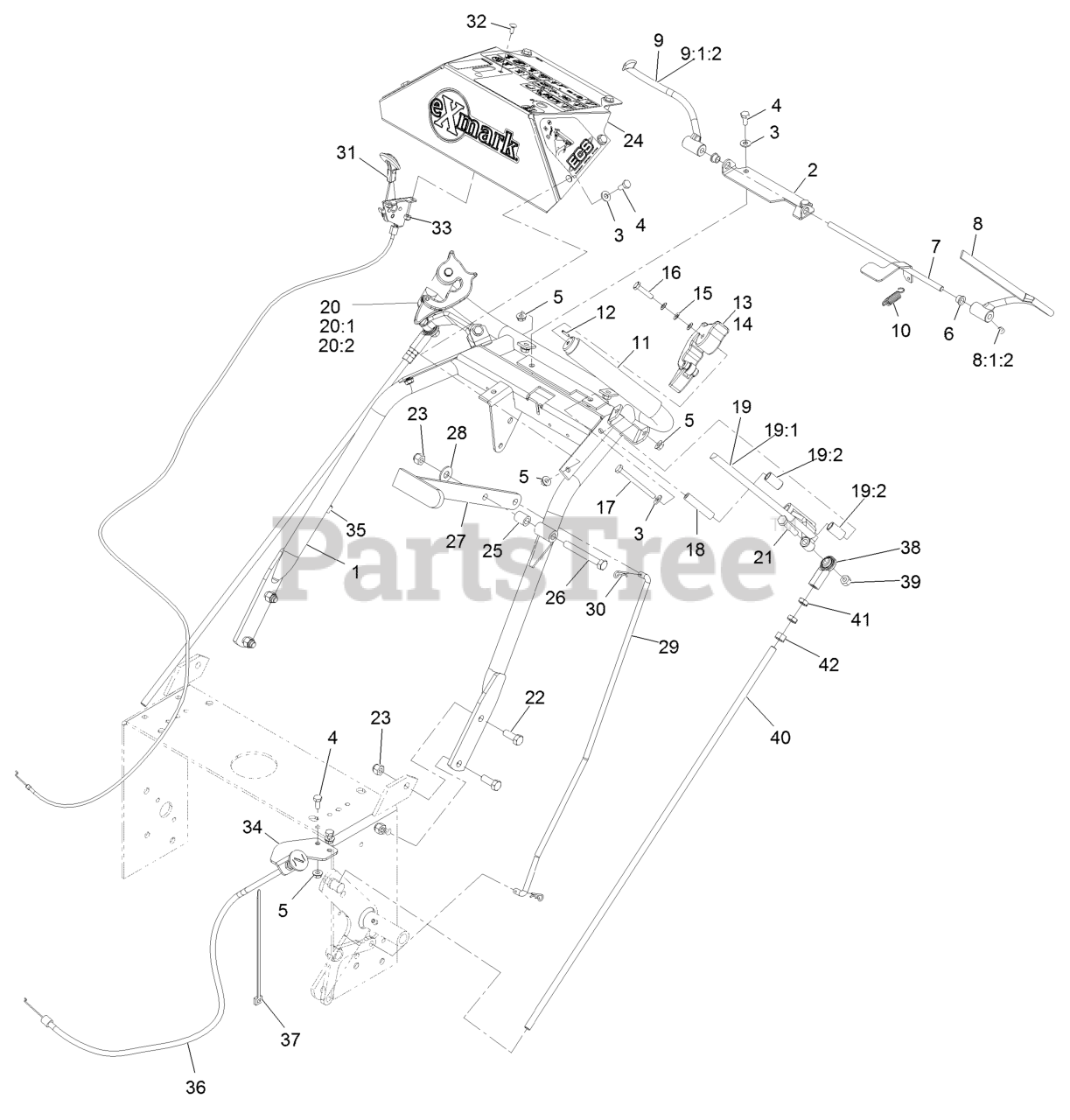

MGS481CKA36200 - Exmark 36" Metro S-Series Walk-Behind Mower, Kawasaki FS (SN: 400000000 - 402082299) (2017) ECS Upper Handle and Controls Parts Diagram

ECS Upper Handle and Controls Parts Diagram
