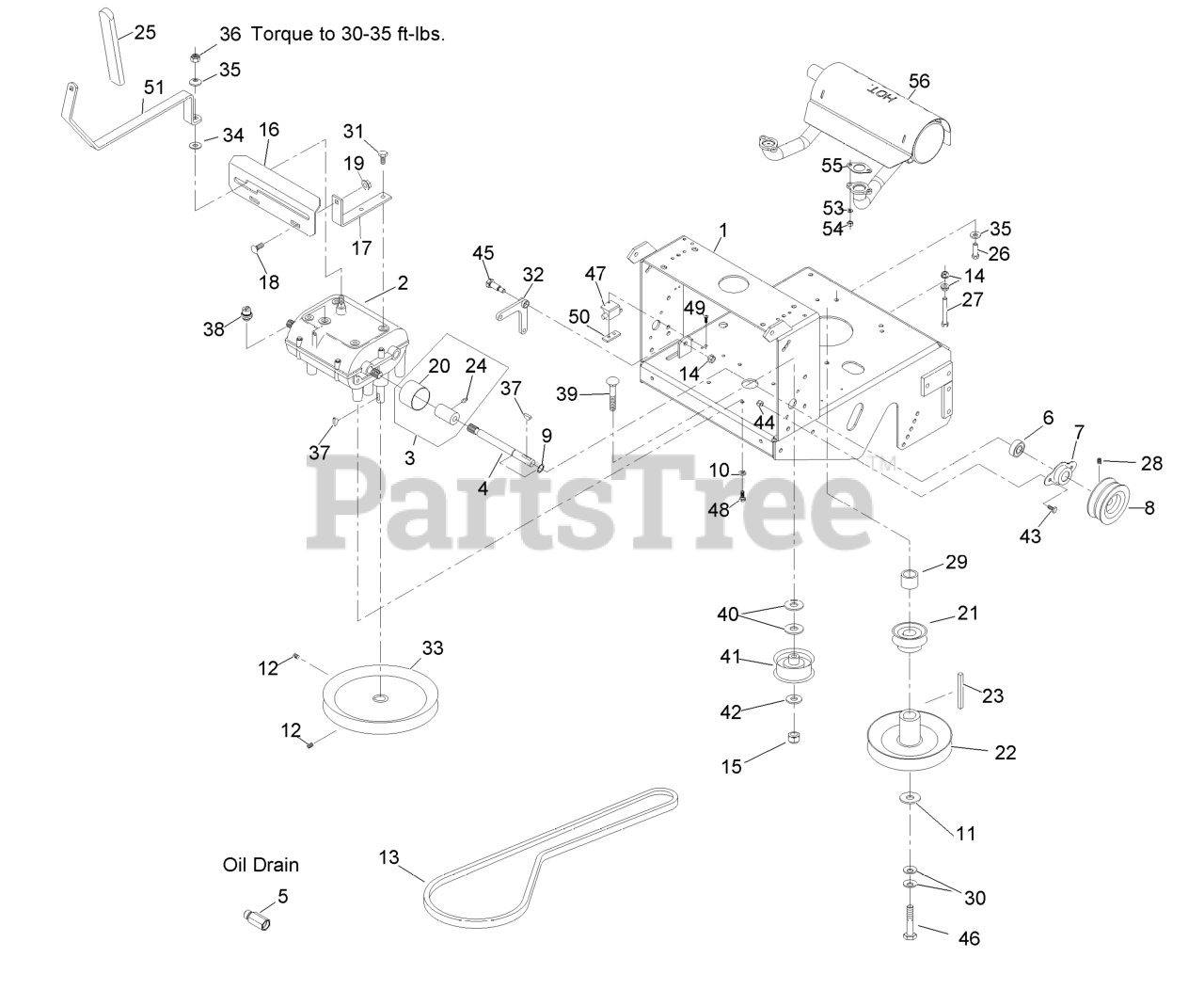

MG16KA483 - Exmark 48" Metro Walk-Behind Mower, 16hp Kawasaki (SN: 920000 - 999999) (2011) Engine Deck Assembly Parts Diagram

48" Metro Walk-Behind Mower, 16hp Kawasaki

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 103-3499

116-6131
(Superseded to 116-6131)

$1045.99

$

Usually ships in 3-6 days

0

2

Exmark 1-323500

137-4105
(Superseded to 137-4105)

$658.99

$

In Stock, Qty 15

0

3

Exmark 1-324340

ASM,COUPLER/ZERK

$61.99

$

Usually ships in 3-6 days

0

4

Exmark 1-323502

SHAFT-TRANSMISSION

$31.99

$

In Stock, Qty 13

0

5

Exmark 103-2587

ADAPTER

$28.99

$

Usually ships in 3-6 days

0

6

Exmark 1-323252

BEARING-SHAFT

Note: Apply anti-seize compound in bore.

$19.99

$

In Stock, Qty 13

0

7

Exmark 1-323254

FLANGE-OUTPUT

$11.99

$

In Stock, Qty 11

0

8

Exmark 103-6511

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound in bore.

$126.99

$

In Stock, Qty 12

0

9

Exmark 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

12

Exmark 3245-41

SCREW-HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 8

0

13

Exmark 1-323280

BELT,TRANS DRIVE
(Superseded to 1-323280-SL)

$49.99

$

In Stock, Qty 20+

0

14

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Exmark 103-3498

PLATE,SHIFTER W/DECAL

$69.99

$

Usually ships in 3-6 days

0

17

Exmark 1-323389-03

BRACKET-PLATE, SHIFT

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 51-4220

GUARD-COUPLER

$20.99

$

In Stock, only 1 left!

0

21

Exmark 103-1666

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound in bore.

$44.99

$

In Stock, only 1 left!

0

22

Exmark 103-1667

1-403160
(Superseded to 1-403160)

Note: Apply anti-seize compound in bore.

$94.99

$

Usually ships in 3-6 days

0

23

Exmark 103-4177

KEY

$5.49

$

In Stock, only 2 left!

0

24

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

25

Exmark 103-1733

GRIP,FOAM

$17.99

$

In Stock, Qty 5

0

26

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

27

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3246-18

SETSCREW

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 1-633453

SPACER-CLUTCH

$20.99

$

In Stock, only 2 left!

0

30

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

31

Exmark 9264964

SCREW-HWH, THREAD CUT

$1.99

$

Usually ships in 3-6 days

0

32

Exmark 1-303186

BELLCRANK

$61.99

$

In Stock, only 1 left!

0

33

Exmark 1-323278

SHEAVE-TRANSMISSION

Note: Apply anti-seize compound in bore.

$85.99

$

In Stock, Qty 8

0

34

Exmark 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

36

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

37

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 19

0

38

Exmark 1-303282

SWITCH-START, NEUTRAL

$53.99

$

In Stock, only 4 left!

0

39

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 16

0

40

Exmark 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

41

Exmark 1-323285

130-8362
(Superseded to 130-8362)

$39.99

$

In Stock, Qty 7

0

42

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

45

Exmark 1-603403

BOLT-SHOULDER

$18.99

$

In Stock, only 2 left!

0

46

Exmark 116-3702

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

Usually ships in 3-6 days

0

47

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

48

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 8

0

51

Exmark 103-1606

ASM,SHIFT LEVER

$64.99

$

Usually ships in 3-6 days

0

53

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 17

0

54

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

55

Exmark 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 116-4397

MUFFLER,HORIZONTAL

$502.99

$

Usually ships in 3-6 days

0
