Exmark MG16KA362 - Exmark 36" Metro Walk-Behind Mower, 16hp Kawasaki (SN: 920000 - 999999) (2011) Engine Deck Assembly (cont.) Parts Lookup with Diagrams

1

Exmark 103-1611-03

ARM-BRAKE

Note:

$74.99

$

Usually ships in 3-6 days

2

Exmark 302-19

FITTING-GREASE

Note:

$2.49

$

In Stock, Qty 8

3

Exmark 1-322117-03

AXLE

Note:

$361.99

$

Usually ships in 3-6 days

4

Exmark 2412-104

CLAMP-R

Note:

$6.99

$

Usually ships in 3-6 days

5

Exmark 103-1615-03

116-7542-03

(Superseded to 116-7542-03) 

Note:

$84.99

$

Usually ships in 3-6 days

6

Exmark 1-806003

PIN-COTTER

Note:

$1.49

$

In Stock, Qty 20+

7

Exmark 103-1616-03

116-7543-03

(Superseded to 116-7543-03) 

Note:

$84.99

$

Usually ships in 3-6 days

8

Exmark 32151-47

RING-RETAINING

Note:

$2.99

$

In Stock, only 3 left!

9

Exmark 1-323288

BELT,WHEEL DRIVE

(Superseded to 1-323288-SL) 

Note:

$118.99

$

In Stock, Qty 16

10

Exmark 32128-20

NUT-HF

Note:

$1.49

$

In Stock, Qty 20+

11

Exmark 1-323262

BAND-BRAKE

Note:

$87.99

$

In Stock, only 2 left!

12

Exmark 110-5866

SWIVEL-BRAKE

Note:

$25.99

$

Usually ships in 3-6 days

13

Exmark 1-412358

SCRAPER

Note:

$31.99

$

In Stock, only 2 left!

14

Exmark 3296-29

NUT-LOCK, NI

Note:

$2.49

$

In Stock, Qty 20+

15

Exmark 1-323277

IDLER-WHEEL, DRIVE

Note:

$31.99

$

In Stock, only 2 left!

16

Exmark 322-6

SCREW-HH

Note:

$3.99

$

In Stock, Qty 20+

17

Exmark 99-8664

SCREW-HH

Note:

$2.99

$

In Stock, Qty 5

18

Exmark 3290-357

NUT-HHF, WHIZ

Note:

$0.99

$

In Stock, Qty 20+

19

Exmark 3296-39

NUT-LOCK, NI

Note:

$2.99

$

In Stock, Qty 16

20

Exmark 1-323287-01

SHIELD-WHEEL, DRIVE

Note:

$47.99

$

Usually ships in 3-6 days

21

Exmark 1-323283

SPACER-SHIELD

Note:

$9.49

$

In Stock, Qty 9

22

Exmark 1-603402

SPRING-EXTENSION

Note:

$7.99

$

In Stock, only 2 left!

23

Exmark 103-1619

LINKAGE-BRAKE, LH

Note:

$17.99

$

Usually ships in 3-6 days

23

Exmark 103-1620

LINKAGE-BRAKE, RH

Note:

$17.99

$

Usually ships in 3-6 days

24

Exmark 1-513959

WINGNUT-NYLOCK

Note:

$6.49

$

Usually ships in 3-6 days

25

Exmark 323-39

SCREW-HH

Note:

$11.99

$

In Stock, Qty 20+

26

Exmark 1-523157

WASHER-SPACER

Note: QTY As Required

$1.49

$

In Stock, Qty 20+

26

Exmark 1-543436

WASHER-SPACER

Note: QTY As Required

$1.49

$

In Stock, Qty 9

27

Exmark 98-5975

WASHER-BELLEVILLE

Note:

$3.49

$

In Stock, Qty 20+

28

Exmark 1-323307

PIN-CLEVIS

Note:

$5.49

$

In Stock, Qty 15

29

Exmark 1-803051

RING-RETAIN,PUSH,EXT,FLAT

Note:

$2.99

$

In Stock, Qty 20+

30

Exmark 103-1618

SWIVEL-DRIVE LEVER, 3/8 L

Note:

$17.99

$

In Stock, Qty 6

31

Exmark 323-6

SCREW-HH

Note:

$2.49

$

In Stock, Qty 20+

32

Exmark 109-4721

DRIVE WHEEL ASM

Note:

$

Not available 

34

Exmark 109-4359

DRUM AND SHEAVE ASM

Note:

$81.99

$

In Stock, only 3 left!

36

Exmark 1-323719

WHEEL AND TIRE ASM

Note:

$226.99

$

In Stock, only 1 left!

37

Exmark 1-323720

TIRE-TURFMASTER

Note:

$120.99

$

Usually ships in 3-6 days

38

Exmark 1-323328

WHEEL AND HUB ASM

Note:

$166.99

$

Usually ships in 3-6 days

39

Exmark 1-323329

BEARING-FLANGED

Note:

$62.99

$

In Stock, only 1 left!

40

Exmark 322-5

SCREW-HH

Note:

$0.99

$

In Stock, Qty 20+

41

Exmark 1-805005

WASHER-LOCK

Note:

$1.49

$

In Stock, Qty 12

42

Exmark 32120-47

RING-RETAINING, EXTERNAL

Note:

$1.49

$

In Stock, Qty 8

44

Exmark 1-808519

RING-SNAP

Note:

$2.99

$

In Stock, only 4 left!

47

Exmark 98-3259

SHIELD-TRAILING

Note:

$70.99

$

In Stock, only 2 left!

48

Exmark 322-3

SCREW-HH

Note:

$0.99

$

In Stock, Qty 16

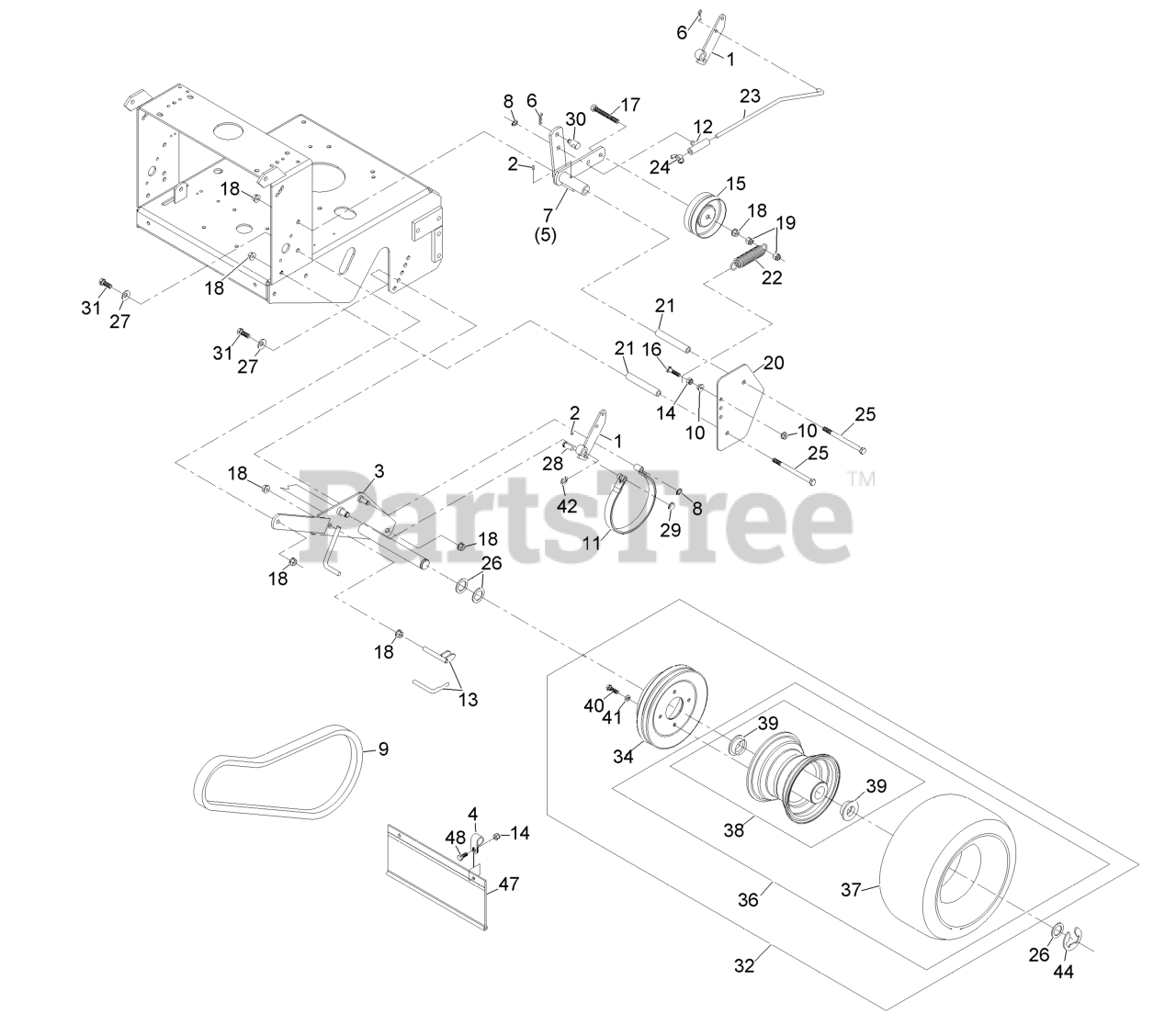

MG16KA362 - Exmark 36" Metro Walk-Behind Mower, 16hp Kawasaki (SN: 920000 - 999999) (2011) Engine Deck Assembly (cont.) Parts Diagram

Engine Deck Assembly (cont.) Parts Diagram
