Exmark MG16KA362 - Exmark 36" Metro Walk-Behind Mower, 16hp Kawasaki (SN: 920000 - 999999) (2011) ECS Upper Handle and Controls Parts Lookup with Diagrams

1

Exmark 116-4079

WLD,LH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 20+

2

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

3

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

4

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$47.99

$

In Stock, Qty 20+

5

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

6

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 8

7

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

9

Exmark 116-2426

CONTROL, THROTTLE

$48.99

$

In Stock, Qty 14

10

Exmark 116-4080

WLD,RH OPC LEVER

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub.

$37.99

$

In Stock, Qty 19

11

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

12

Exmark 103-1629

CLUTCH LEVER-W/GRIP

$22.99

$

Usually ships in 3-6 days

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

15

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

17

Exmark 103-1627

LINKAGE,UPPER BLADE (PLT)

$20.99

$

Usually ships in 3-6 days

18

Exmark 103-1604

LINKAGE,DRIVE (PLT)

$26.99

$

In Stock, only 2 left!

19

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

20

Exmark 103-0815

GRIP-BAR, HANDLE

$12.99

$

In Stock, Qty 9

21

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

22

Exmark 103-1631

ASM,LH THUMB LATCH

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

22

Exmark 103-1630

ASM,RH THUMB LATCH

$37.99

$

In Stock, only 4 left!

23

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

24

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$674.99

$

Usually ships in 3-6 days

25

Exmark 1-303088

CLIP-CABLE

$2.99

$

Usually ships in 3-6 days

26

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

35

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

39

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

41

Exmark 116-2661

HARNESS-WIRE

$95.99

$

Usually ships in 3-6 days

42

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

43

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

44

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, Qty 5

44:1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

44:2

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

45

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

46

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

47

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

48

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

49

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

50

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

51

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 4 left!

52

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

53

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

54

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

55

Exmark 116-4081-03

Lever, Drive Lh

$

Currently unavailable 

56

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

57

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

58

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

59

Exmark 103-0464

126-2925

(Superseded to 126-2925) 

$1.49

$

In Stock, only 2 left!

60

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

61

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 19

62

Exmark 116-4082-03

Lever, Drive Rh

$

Currently unavailable 

63

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

64

Exmark 109-4934

ASM, CONSOLE W/DECALS

$283.99

$

Usually ships in 3-6 days

65

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

66

Exmark 103-2513

DRIVE LEVER-ASM, RH

$140.99

$

In Stock, only 1 left!

67

Exmark 103-2514

DRIVE LEVER-ASM, LH

$140.99

$

In Stock, only 4 left!

68

Exmark 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 4 left!

69

Exmark 103-0489-03

BRACKET,OPC AXLE

$25.99

$

In Stock, Qty 6

70

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, Qty 6

71

Exmark 103-1797-01

BRACKET-CABLE, CHOKE

$9.49

$

Usually ships in 3-6 days

72

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

73

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

75

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

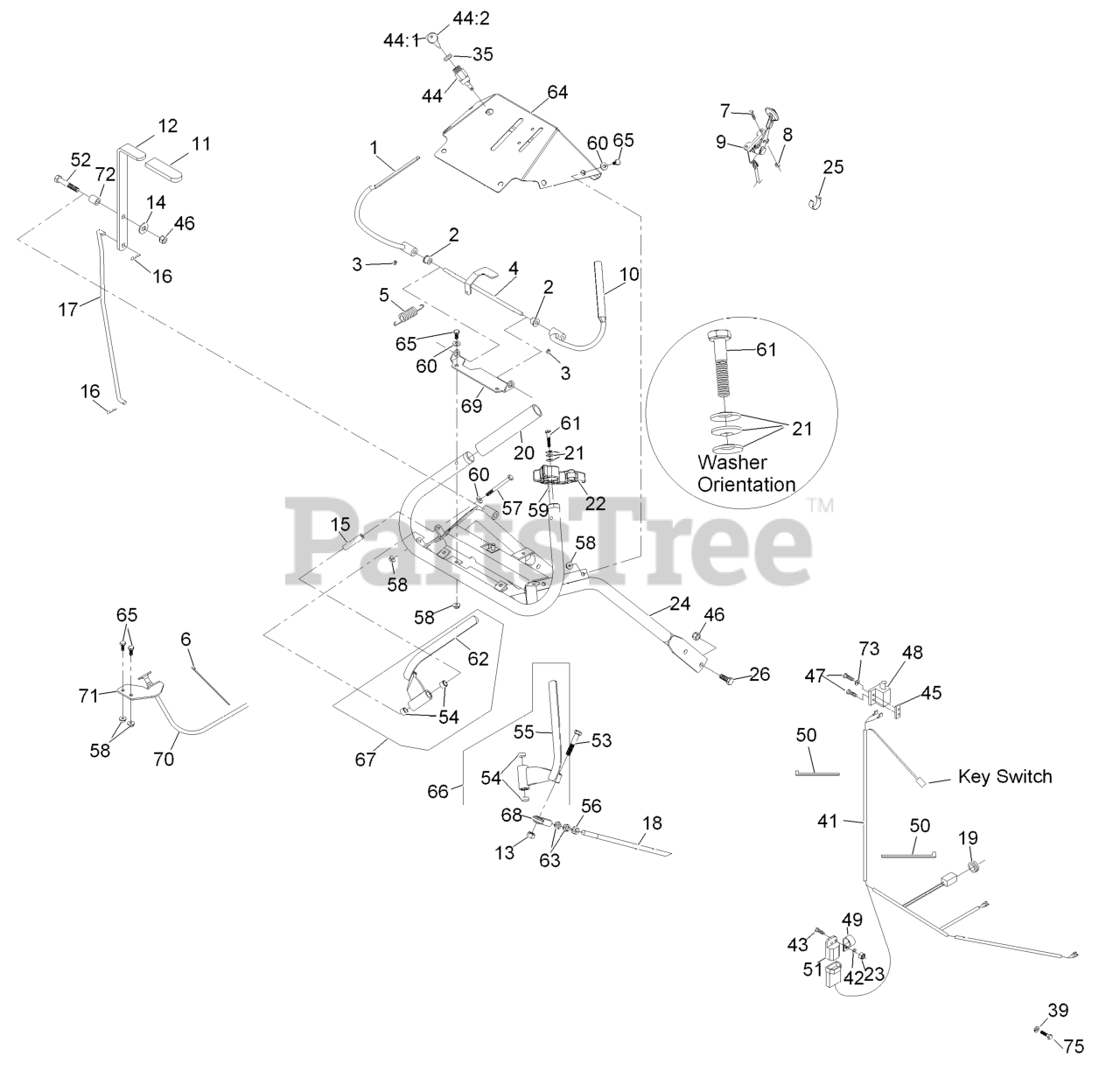

MG16KA362 - Exmark 36" Metro Walk-Behind Mower, 16hp Kawasaki (SN: 920000 - 999999) (2011) ECS Upper Handle and Controls Parts Diagram

ECS Upper Handle and Controls Parts Diagram
