MG-610976 - Tecumseh Magneto Magneto Parts Diagram

Magneto

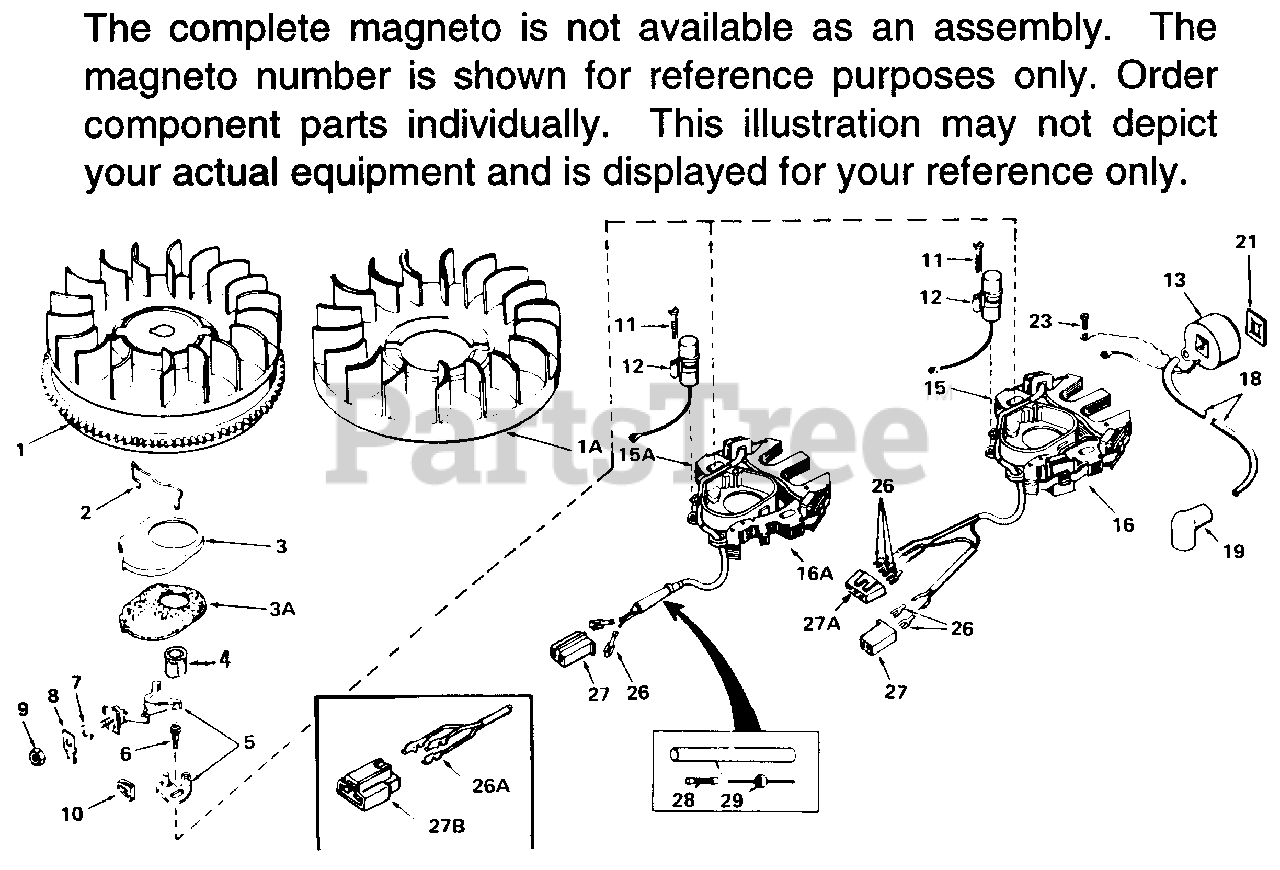

Magneto Parts Diagram

Tecumseh 610976

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown.

$

$

Currently unavailable

$15.99

$

Usually ships in 3-12 days

0

1

Tecumseh 610952

Flywheel (Incl. 1A)

$179.99

$

Usually ships in 3-12 days

0

2

Tecumseh 30836

Spring, Dust cover

$

$

Not available

3A

Tecumseh 610956

Gasket, Dust cover

$

$

Not available

3

Tecumseh 610947

Cover, Dust

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, Qty 10

0

6

Tecumseh 29181

Screw & Lockwasher

$

$

Not available

7

Tecumseh 610385

Washer, Terminal

$

$

Not available

8

Tecumseh 33356

Tab, Terminal

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 610408

Nut, Terminal

$

$

Currently unavailable

10

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 610593

Screw, Condenser fastening

$1.99

$

Usually ships in 3-12 days

0

12

Tecumseh 610767A

Condenser

$

$

Not available

13

Tecumseh 30560A

Coil Assy. (Incl. 18)

$48.99

$

In Stock, Qty 12

0

15

Tecumseh 610975

Stator Plate Assy. Incl. 2 thru 13, 1 6, 19, 21& 23

$214.99

$

Usually ships in 3-12 days

0

16

Tecumseh 610978

Core & Generating Assy. Incl. 26,27, 27A

$

$

Not available

18

Tecumseh 30554

Wire, Lead

$

$

Not available

19

Tecumseh 610118

Cover, Spark plug

$6.49

$

In Stock, Qty 8

0

21

Tecumseh 610969

Clip, Coil fastening

$

$

Not available

23

Tecumseh 610384

Screw, Ground terminal

$

$

Currently unavailable

26

Tecumseh 610922

Terminal, Female

$

$

Not available

27

Tecumseh 610921

Connector

$1.99

$

Usually ships in 3-12 days

0

27A

Tecumseh 610824

Connector, Flat

$

$

Not available
