MG-610945 - Tecumseh Magneto Magneto Parts Diagram

Magneto

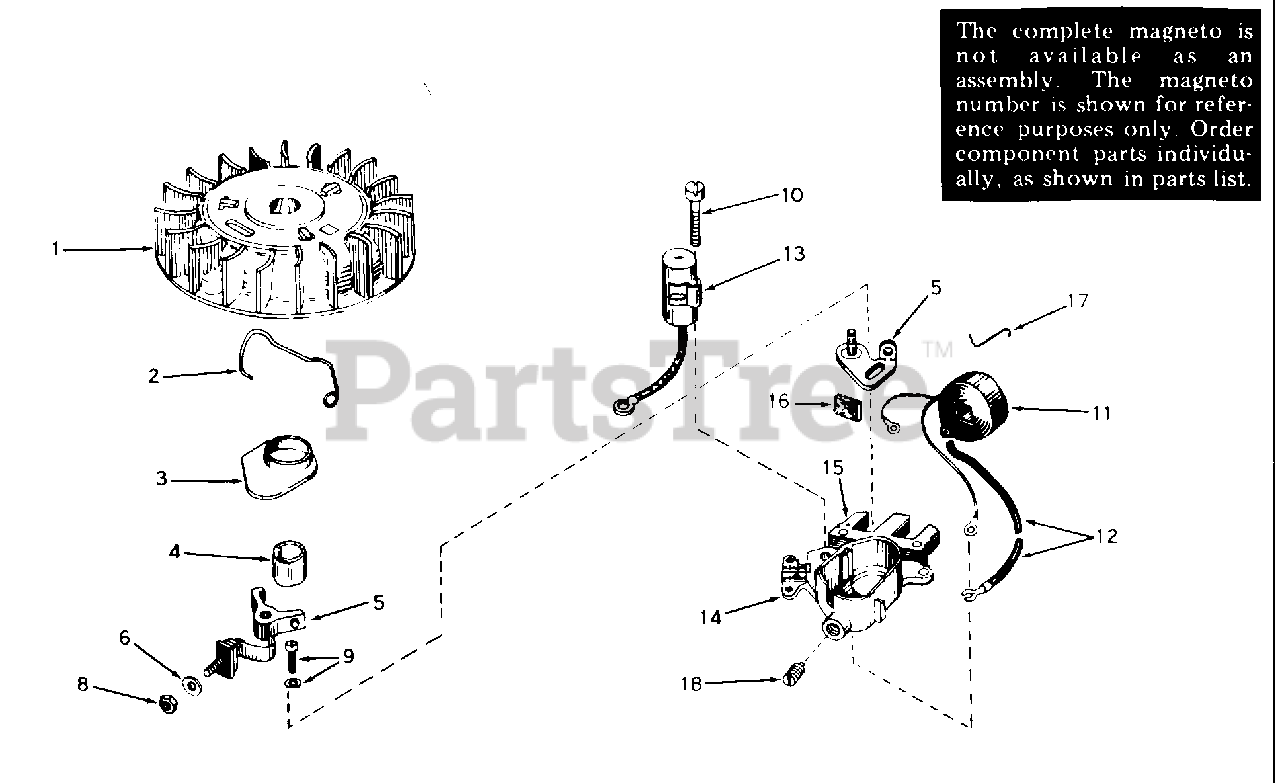

Magneto Parts Diagram

Tecumseh 610945

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown.

$

$

Currently unavailable

1

Tecumseh 610843

Flywheel

$

$

Currently unavailable

2

Tecumseh 30551

Spring, Breaker box cover

$

$

Not available

3

Tecumseh 30550

Cover, Breaker box
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30992

Cam, Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, Qty 20+

0

6

Tecumseh 610385

Washer, Terminal

$

$

Not available

8

Tecumseh 610408

Nut, Terminal

$

$

Currently unavailable

9

Tecumseh 29181

Screw & Lockwasher

$

$

Not available

10

Tecumseh 610593

Screw, Condenser

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 30560A

Coil Assy. (Incl. 12)

$48.99

$

In Stock, Qty 15

0

12

Tecumseh 30554

Wire, Lead

$

$

Not available

13

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 20+

0

14

Tecumseh 610736

Core & Plate

$

$

Currently unavailable

15

Tecumseh 610858

Stator Assy. Incl. 2,5 thru 14,16,17, 18

$

$

Currently unavailable

16

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 31311

Clip, Coil locking

$

$

Not available

18

Tecumseh 610281

Screw Assy., Friction

$

$

Currently unavailable
