MG-610943A - Tecumseh Magneto Magneto Parts Diagram

Magneto

Magneto Parts Diagram

  • Title

Tecumseh 610943A

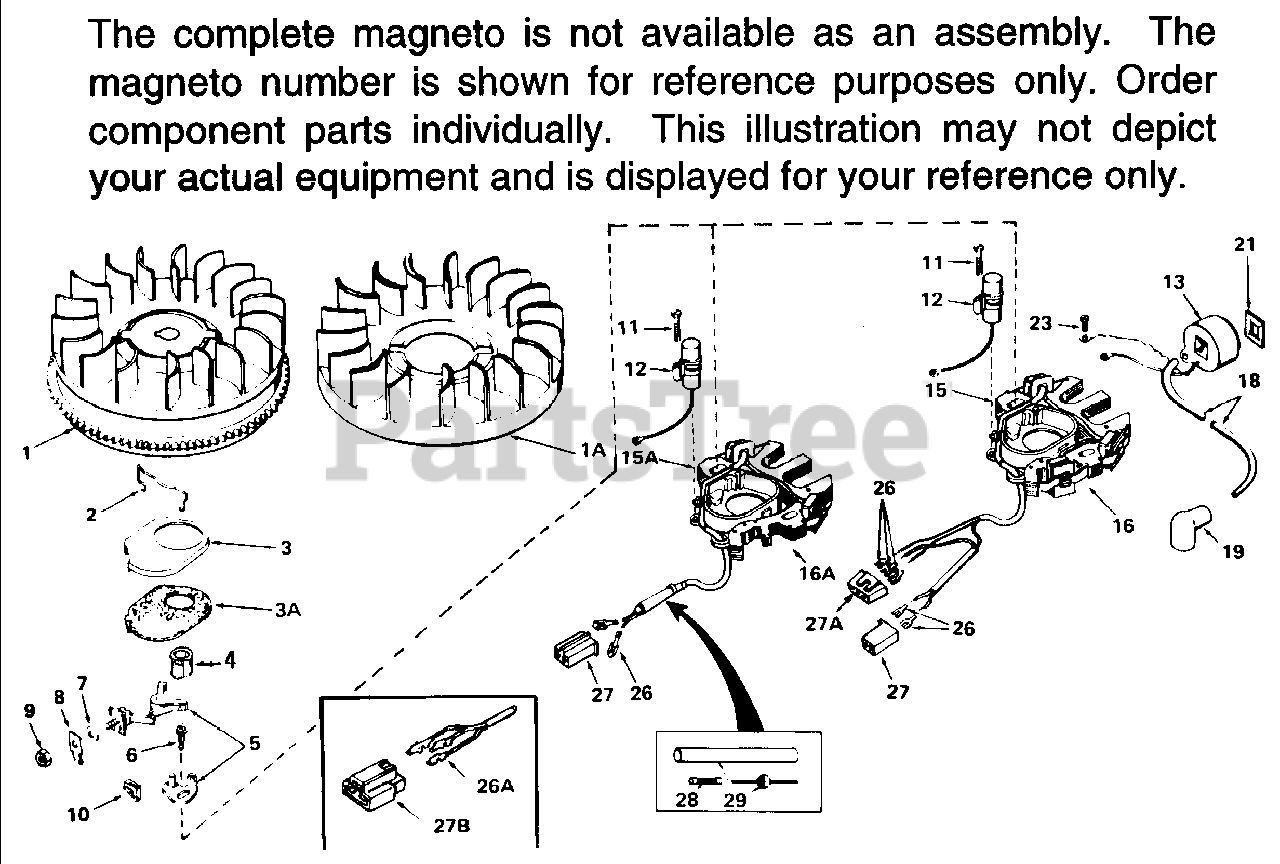

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown.

$

$

Currently unavailable

1A

Tecumseh 610933

Fan

$

$

Not available

1

Tecumseh 33660C

Flywheel (Incl. 1A)

$

$

Currently unavailable

2

Tecumseh 30836

Spring, Dust cover

$

$

Not available

3A

Tecumseh 610947

Cover, Dust

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30992

Cam, Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 29181

Screw & Lockwasher

$

$

Not available

7

Tecumseh 610385

Washer, Terminal

$

$

Not available

8

Tecumseh 33356

Tab, Terminal

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 610408

Nut, Terminal

$

$

Currently unavailable

10

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 610593

Screw, Condenser fastener

$1.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 6

0

13

Tecumseh 30560A

Coil (Incl. 18)

$48.99

$

Usually ships in 3-12 days

0

14

Tecumseh 29629

Spring, Coil wedge

$

$

Not available

15

Tecumseh 610821A

Stator Plate Assy. Incl. 2, 3, 3A, 5 thru 14, 16 thru 23, 32, 32A, 33, 36 & 37

$

$

Currently unavailable

16

Tecumseh 30834

Core & Plate Group

$

$

Currently unavailable

17

Tecumseh 33030

Generating Coil & Leads (2 Circuit) ( Incl. 36 & 37)

$

$

Currently unavailable

18

Tecumseh 30554

Wire, Lead

$

$

Not available

19

Tecumseh 30840

Sleeve, Insulation

$

$

Currently unavailable

20

Tecumseh 30838

Shield, Coil

$

$

Currently unavailable

21

Tecumseh 610738

Clip, Coil fastening
(Superseded to 610969)

$

$

Not available

22

Tecumseh 30837

Clip, Ground

$

$

Currently unavailable

23

Tecumseh 610384

Screw, Ground terminal

$

$

Currently unavailable

32A

Tecumseh 610950

Gasket, Dust cover (23/32 Hole)

$

$

Currently unavailable

33

Tecumseh 31311

Clip, Coil locking

$

$

Not available

36

Tecumseh 610822

Terminal, Male

$3.99

$

Usually ships in 3-12 days

0

37

Tecumseh 610823

Connector, Pyramid

$

$

Currently unavailable
