MG-610924 - Tecumseh Magneto Magneto Parts Diagram

Magneto

Magneto Parts Diagram

  • Title

Tecumseh 610924

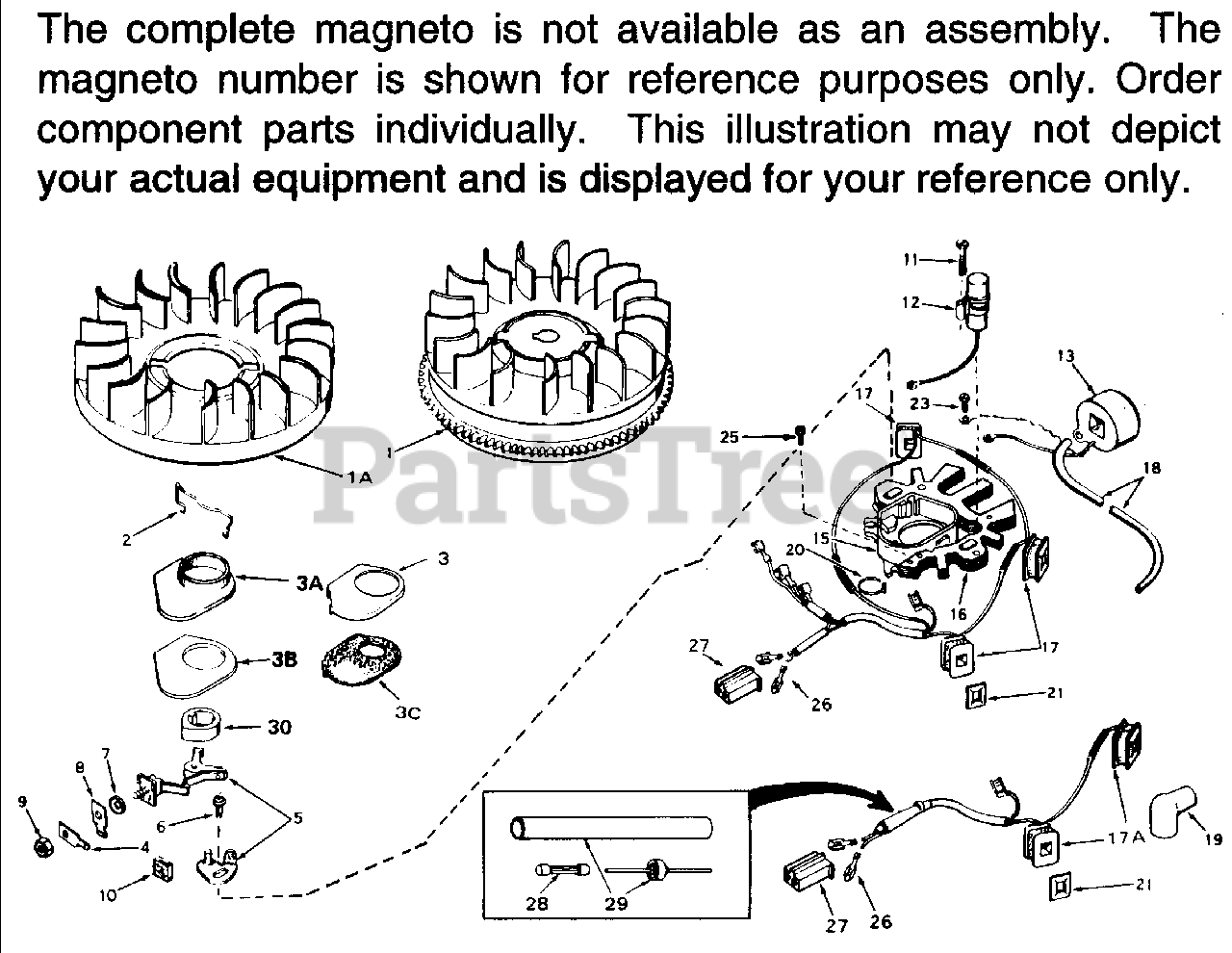

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown.

$

$

Currently unavailable

1A

Tecumseh 610934

Fan

$15.99

$

Usually ships in 3-12 days

0

1

Tecumseh 610915

Flywheel (Incl. 1A)

$

$

Currently unavailable

2

Tecumseh 30836

Spring, Dust cover

$

$

Not available

3C

Tecumseh 610956

Gasket, Dust cover Late style, 25/32 Hole

$

$

Not available

3C

Tecumseh 610957

Gasket, Dust cover Late style, 29/32 Hole

$

$

Not available

4

Tecumseh 610923

Terminal

$

$

Not available

5

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 29181

Screw & Lockwasher

$

$

Not available

7

Tecumseh 610385

Washer, Terminal

$

$

Not available

8

Tecumseh 33356

Tab, Terminal

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 610408

Nut, Terminal

$

$

Currently unavailable

10

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 610593

Screw, Condenser fastening

$1.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30548B

Condenser (also available in Packaged Part #740037B)

$13.99

$

In Stock, Qty 6

0

13

Tecumseh 610768

Coil Assy.
(Superseded to 30560A)

$48.99

$

Usually ships in 3-12 days

0

15

Tecumseh 610925

Stator Plate Assy. Incl. 2 thru 3C, 5 thru 13,16, 17A & 18 thru 25
(Superseded to 610968)

$

$

Not available

16

Tecumseh 610917

Core & Plate Group
(Superseded to 610916)

$

$

Currently unavailable

17A

Tecumseh 610926

Generator Coils & Leads Incl. 26,27, 28,29
(Superseded to 610968)

$

$

Not available

18

Tecumseh 30554

Wire, Lead

$

$

Not available

19

Tecumseh 610118

Cover, Spark plug

$6.49

$

In Stock, only 2 left!

0

20

Tecumseh 610919

Strap

$

$

Currently unavailable

21

Tecumseh 610738

Clip, Coil fastening
(Superseded to 610969)

$

$

Not available

23

Tecumseh 28758

Screw, Ground terminal
(Superseded to 29117)

$1.99

$

In Stock, only 1 left!

0

25

Tecumseh 650782

Screw, 4-40 x 1/4"

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 610922

Terminals

$

$

Not available

27

Tecumseh 610921

Connector

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 29561

Fuse (6 Amp)

$3.49

$

Usually ships in 3-12 days

0

29

Tecumseh 610935

Diode Assy.
(Superseded to 611161)

$17.99

$

Usually ships in 3-12 days

0
