MG-610838 - Tecumseh Magneto Magneto Parts Diagram

Magneto

Magneto Parts Diagram

  • Title

Tecumseh 610838

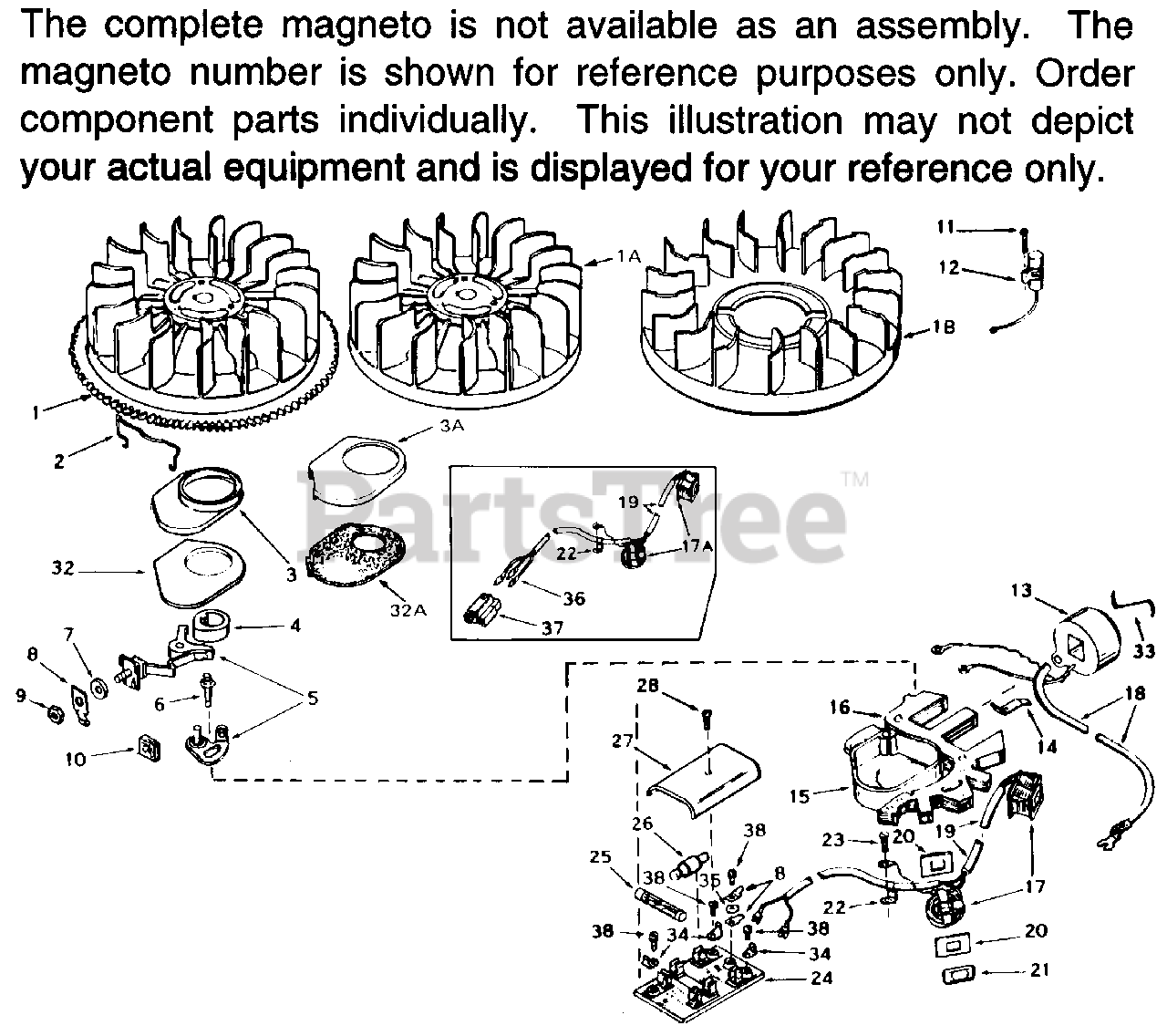

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown.

$

$

Currently unavailable

1

Tecumseh 610769A

Flywheel

$

$

Currently unavailable

2

Tecumseh 30836

Spring, Dust cover

$

$

Not available

3A

Tecumseh 610947

Cover, Dust (Late Style)

$3.99

$

Usually ships in 3-12 days

0

3

Tecumseh 30550

Cover, Dust (Early Style)
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30992

Cam, Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 29181

Screw & Lockwasher

$

$

Not available

7

Tecumseh 610385

Washer, Terminal

$

$

Not available

8

Tecumseh 33356

Tab Terminal

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 610408

Nut Terminal

$

$

Currently unavailable

10

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 610593

Screw, Condenser fastening

$1.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 6

0

13

Tecumseh 30560A

Coil (Incl. 18)

$48.99

$

Usually ships in 3-12 days

0

15

Tecumseh 30833A

Stator Plate Assy. Incl. 2, 3, 5 thru 28, 32, 32A & 33

$

$

Currently unavailable

16

Tecumseh 30834

Core & Plate Group

$

$

Currently unavailable

17

Tecumseh 30835

Generating Coils & Leads

$

$

Currently unavailable

18

Tecumseh 30554

Wire, Lead No. 31616 shielded wire av ailable separately

$

$

Not available

19

Tecumseh 30840

sleeve, Insulation

$

$

Currently unavailable

20

Tecumseh 30838

Shield, Coil

$

$

Currently unavailable

21

Tecumseh 610738

Clip, Coil fastening
(Superseded to 610969)

$

$

Not available

22

Tecumseh 30837

Clip, Ground

$

$

Currently unavailable

23

Tecumseh 610384

Screw, Ground terminal

$

$

Currently unavailable

24

Tecumseh 30841

Plate, Rectifier Incl. 8, 34, 35 & 3 8

$

$

Currently unavailable

25

Tecumseh 29561

Fuse (6 Amp)

$3.49

$

Usually ships in 3-12 days

0

26

Tecumseh 30842

Rectifier
(Superseded to 36909)

$39.99

$

Usually ships in 3-12 days

0

27

Tecumseh 30064

Cover, Rectifier panel

$

$

Not available

28

Tecumseh 30066

Screw, 5-40 x 3/8"

$

$

Currently unavailable

32

Tecumseh 32052

Gasket, Dust cover (Early Style)

$

$

Not available

32A

Tecumseh 610950

Gasket, Dust cover (Late Style)

$

$

Currently unavailable

33

Tecumseh 31311

Clip, Coil locking

$

$

Not available

34

Tecumseh 32316

Tab, Terminal

$

$

Currently unavailable

35

Tecumseh 650423

Flat, Washer

$

$

Not available

38

Tecumseh 650388

Screw, 6-32 x 5/16"

$

$

Currently unavailable
