MG-610799 - Tecumseh Magneto Magneto Parts Diagram

Magneto

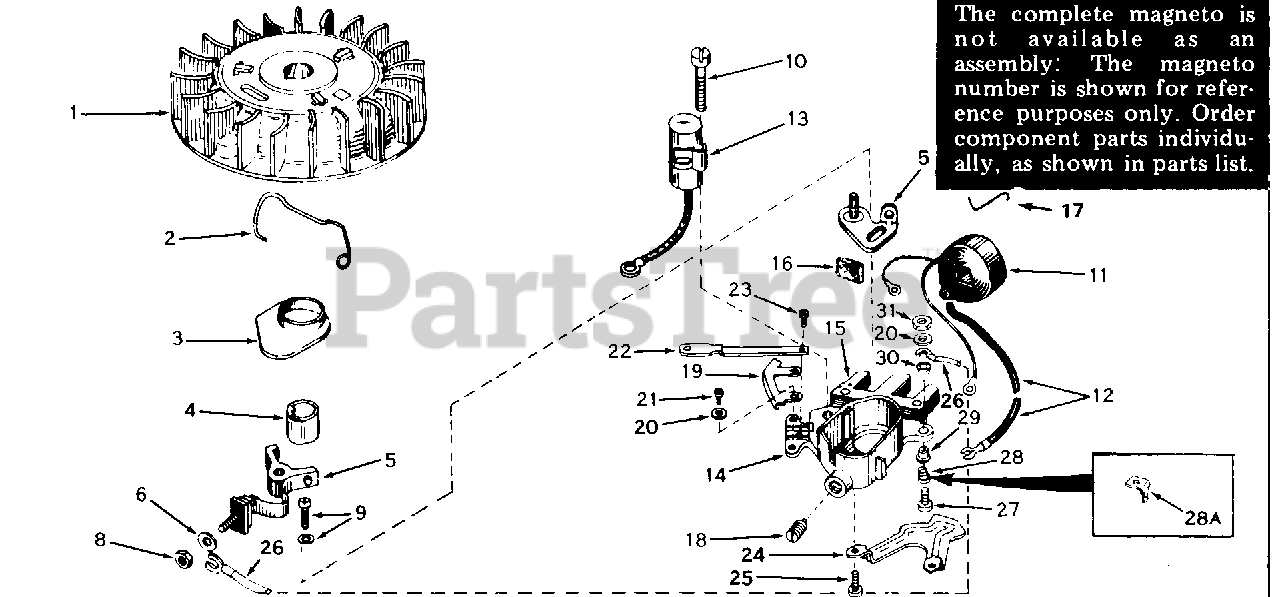

Magneto Parts Diagram

  • Title

Tecumseh 610799

"Magneto This magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in parts breakdown.

$

$

Currently unavailable

1

Tecumseh 610751

Flywheel

$

$

Not available

2

Tecumseh 30551

Spring, Breaker box cover

$

$

Not available

3

Tecumseh 30550

Cover, Breaker box
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30552

Cam, Breaker

$

$

Not available

5

Tecumseh 30547A

Breaker Points (also available in Pac kaged Part #740037B)

$18.99

$

In Stock, only 2 left!

0

6

Tecumseh 610385

Washer, Terminal

$

$

Not available

8

Tecumseh 610408

Nut, Terminal

$

$

Currently unavailable

9

Tecumseh 29181

Screw & Washer, Breaker

$

$

Not available

10

Tecumseh 610593

Screw, Condenser

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 30560A

Coil Assy., (Incl. 12)

$48.99

$

In Stock, only 1 left!

0

12

Tecumseh 30554

Wire, Lead

$

$

Not available

13

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 10

0

14

Tecumseh 610736

Core & Plate

$

$

Currently unavailable

15

Tecumseh 610800

Stator Assy. Incl. 2, 5 thru 14, 16 t hru 31
(Superseded to 610858)

$

$

Currently unavailable

16

Tecumseh 30549

Felt, Cam wiper

$1.99

$

In Stock, only 4 left!

0

17

Tecumseh 31311

Clip, Coil locking

$

$

Not available

18

Tecumseh 610281

Screw Assy., Friction

$

$

Currently unavailable

19

Tecumseh 570430

Cam, Throttle
(Superseded to 570430A)

$

$

Currently unavailable

20

$

$

Not available

21

Tecumseh 650545

Screw, 6-32 x 3/8"

$1.99

$

Usually ships in 3-12 days

0

22

Tecumseh 570487

Lever, Control

$

$

Currently unavailable

23

Tecumseh 650618

Screw, 10-24 x 3/8"
(Superseded to 650579)

$1.99

$

Usually ships in 3-12 days

0

25

Tecumseh 650654

Screw, 6-32 x 3/8"

$1.99

$

In Stock, only 2 left!

0

26

Tecumseh 610809

Wire, Cut off

$

$

Currently unavailable

27

Tecumseh 650504

Screw, 6-32 x 3/4"

$

$

Currently unavailable

28

Tecumseh 570490

Spring (Use as required)

$

$

Currently unavailable

29

Tecumseh 610808

Washer, Insulating

$

$

Currently unavailable

30

Tecumseh 570153

Washer, Insulating

$

$

Currently unavailable

31

Tecumseh 7962

Nut, Hex, 6-32
(Superseded to 650742)

$1.99

$

In Stock, only 2 left!

0
