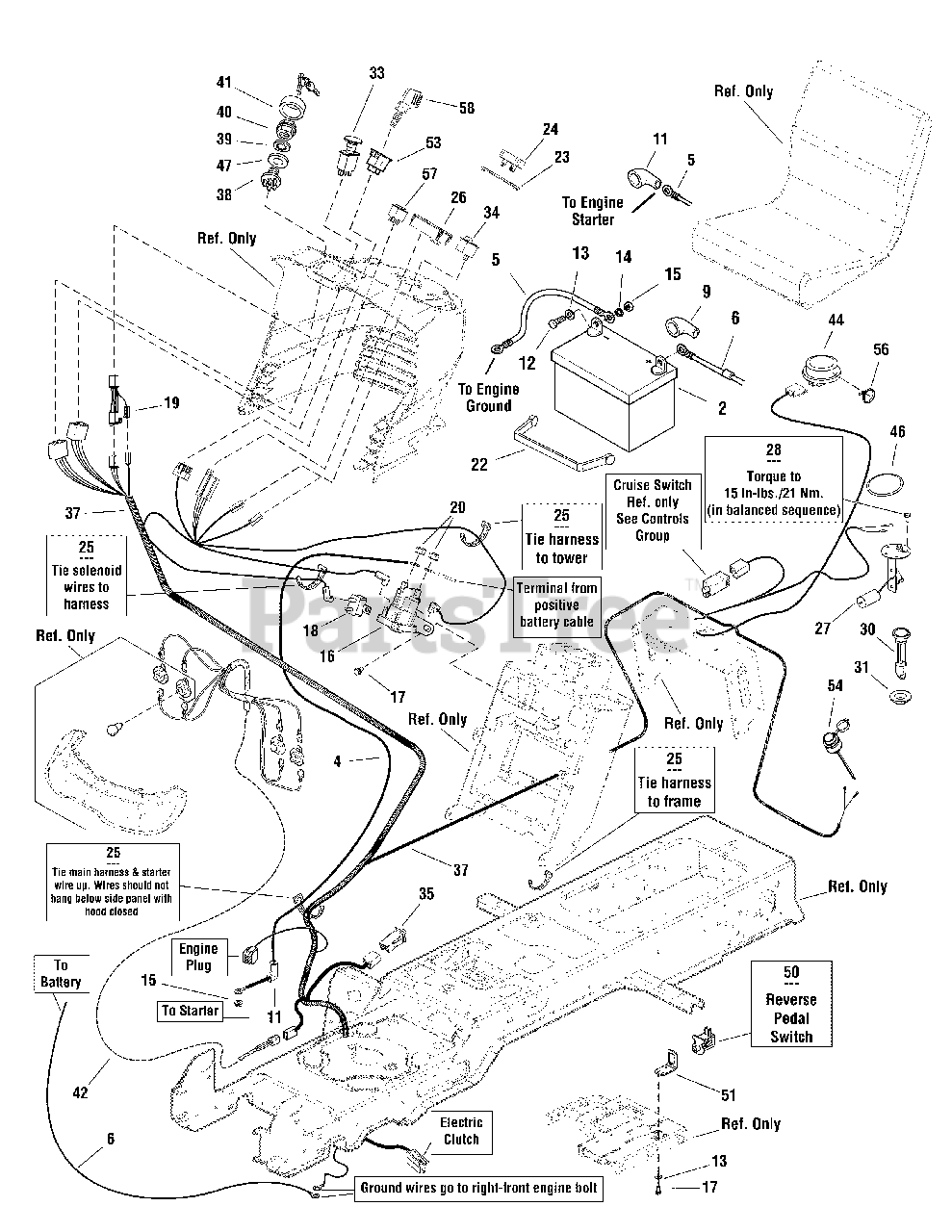

MF 2700 (2691239-00) - Massey Ferguson 52" Lawn Tractor, 24hp Electrical Group Parts Diagram

52" Lawn Tractor, 24hp

Electrical Group Parts Diagram

  • Title

2

BATTERY, 12 Volt

Note: (Not a servicable part)

$

$

Not available

4

Simplicity 1603618

CABLE, #6 x 8" Long, Ring Terminals
(Superseded to 1603618SM)

$11.99

$

In Stock, only 3 left!

0

5

Simplicity 1721830

CABLE, #6 x 25" Long, Ring Terminals
(Superseded to 1721830SM)

$19.99

$

Usually ships in 2-12 days

0

6

Simplicity 1713163

CABLE, #6 x 26" Long, Ring Terminals
(Superseded to 1713163SM)

$24.99

$

Usually ships in 2-12 days

0

9

Simplicity 1677296

BOOT, Insulator Battery Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

11

Simplicity 1713535

BOOT, Insulator Battery Terminal
(Superseded to 1713535SM)

$5.99

$

In Stock, only 1 left!

0

12

Simplicity 2823341

SCREW, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 2821319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 2816964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 2816622

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1728963

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

17

Simplicity 1925003

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 1665238

CIRCUIT BREAKER
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 20+

0

19

Simplicity 1739717

HARNESS, Jumper
(Superseded to 1739717YP)

$50.99

$

Usually ships in 2-12 days

0

20

Simplicity 2860750

NUT, Locking, KEPS, 5/16-24
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

22

Simplicity 1722009

STRAP, Battery
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

23

Simplicity 1725524

PLUG, Dash
(Superseded to 1725524SM)

Note: 22HP Models

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1731184

HOURMETER, WIth Alarms
(Superseded to 1731184SM)

Note: 22HP Models

$64.99

$

In Stock, only 1 left!

0

25

Simplicity 2825094

TIE, Cable
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

26

Simplicity 1725074

INSTRUMENT PANEL
(Superseded to 1725074SM)

Note: 24HP Models

$290.99

$

Usually ships in 2-12 days

0

27

Simplicity 1737523

SENDER, Fuel
(Superseded to 1737523YP)

Note: 24HP Models

$75.99

$

Usually ships in 2-12 days

0

28

Simplicity 2860665

SCREW, Pan Head, #10-32 x 1/2
(Superseded to 2860665SM)

Note: 24HP Models

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 1722300

GAUGE, Fuel
(Superseded to 1722300SM)

Note: 22HP Models

$34.99

$

Usually ships in 2-12 days

0

31

Simplicity 1722337

GROMMET
(Superseded to 1722337SM)

Note: 22HP Models

$8.99

$

In Stock, only 1 left!

0

33

Simplicity 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

34

Simplicity 1716951

SWITCH, Headlight
(Superseded to 1716951SM)

$21.99

$

In Stock, Qty 6

0

35

Simplicity 1732006

SWITCH, Pedal
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

37

Simplicity 1739708

HARNESS, Main
(Superseded to 1739708YP)

$199.99

$

Usually ships in 2-12 days

0

38

Simplicity 1716061

SWITCH, Ignition, Use Key #1737836YP
(Superseded to 1686734SM)

Note: 24HP Models

$32.99

$

In Stock, Qty 20+

0

38

Simplicity 1737853

SWITCH, Ignition, Use Key #1737836YP
(Superseded to 1737853YP)

Note: 22HP Models

$35.99

$

In Stock, Qty 20+

0

39

Simplicity 1960547

LOCKWASHER, 5/8
(Superseded to 1960547SM)

$4.49

$

In Stock, only 4 left!

0

40

Simplicity 1717549

NUT, Hex Flange, 5/8-32
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

41

Simplicity 1717550

COVER, Switch
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 16

0

42

Simplicity 1722669

HARNESS, Headlight
(Superseded to 1722669SM)

$40.99

$

Usually ships in 2-12 days

0

44

Simplicity 1718981

SWITCH, Seat
(Superseded to 1718981SM)

$21.99

$

In Stock, only 1 left!

0

46

Simplicity 1722309

PLUG, 3"
(Superseded to 1722309SM)

Note: 24HP Models

$5.99

$

In Stock, Qty 12

0

47

Simplicity 2101025

WASHER, Shim
(Superseded to 2101025SM)

$4.49

$

Usually ships in 2-12 days

0

50

Simplicity 1704379

SWITCH, Snap
(Superseded to 1732004)

$8.99

$

In Stock, Qty 20+

0

51

Simplicity 1726810A

MOUNTING BRACKET, Switch
(Superseded to 1726810ASM)

$12.99

$

Usually ships in 2-12 days

0

53

Simplicity 1726556

MODULE, No Mow
(Superseded to 1726556SM)

$

$

Not available

54

Simplicity 1725302

OUTLET, 12 Volt
(Superseded to 1725302SM)

$26.99

$

Usually ships in 2-12 days

0

56

Simplicity 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

57

Simplicity 1716329

SWITCH, EHOC
(Superseded to 1716329SM)

$47.99

$

In Stock, Qty 14

0

58

Simplicity 1726557SM

KEY, RMO, Plastic Yellow

$5.49

$

In Stock, Qty 20+

0
