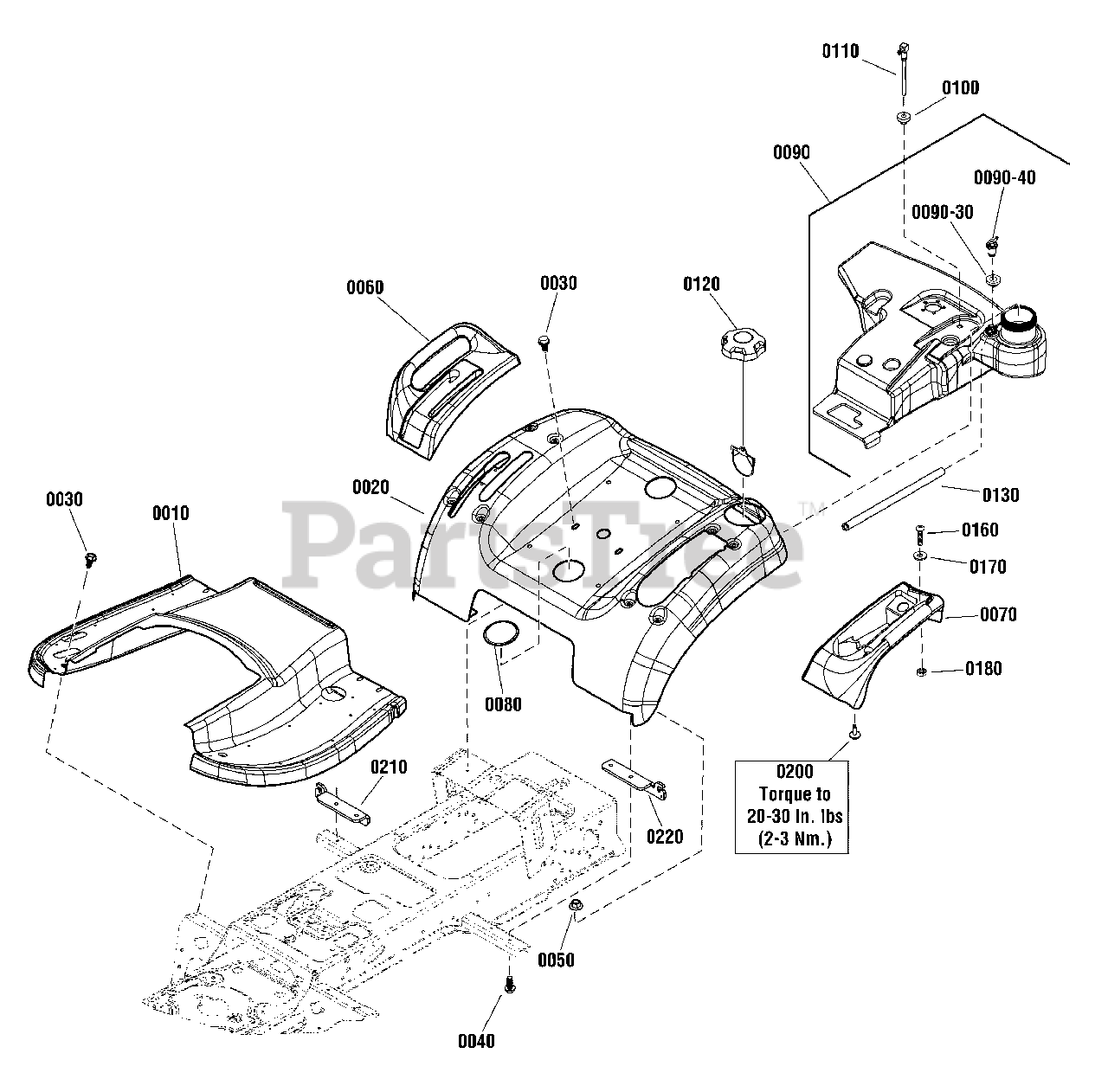

MF 2600 (2691364-00) - Massey Ferguson 50" Lawn Tractor, 23hp Seat Deck Group Parts Diagram

50" Lawn Tractor, 23hp

Seat Deck Group Parts Diagram

  • Title

0010

Simplicity 1722105DSM

TUNNEL

$201.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1722106DSM

DECK, Seat

$512.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1930601SM

SCREW, Hex Washer Head, Taptite,5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0040

Simplicity 1930595SM

SCREW, Hex Flange, Whiz Lock 5/16 - 1 1/4

$3.99

$

In Stock, Qty 5

0

0050

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 1687790YP

POD, RH

$103.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1687789YP

POD, LH

$103.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1722309SM

PLUG, Hole

$5.99

$

In Stock, Qty 11

0

0090

Simplicity 1751622YP

TANK, Fuel

$365.99

$

Usually ships in 2-12 days

0

0090-30

Simplicity 799624

GROMMET

$8.99

$

In Stock, Qty 15

0

0090-40

Simplicity 7104638YP

REMOTE VENT ASSEMBLY

$

$

Not available

0100

Simplicity 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0110

Simplicity 1757609YP

TUBE, Fuel Pickup

$19.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1759036YP

FUEL CAP
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 6

0

0130

Simplicity 708734

VAPOR HOSE

$13.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5023499SM

WASHER, #10 SAE

$3.49

$

Usually ships in 2-12 days

0

0180

Simplicity 1960591SM

NUT, Hex KEPS, #10-24

$3.49

$

In Stock, Qty 8

0

0190

Simplicity 1701011SM

TIE, Self Lock

Note: (Not Shown)

$5.49

$

In Stock, only 2 left!

0

0200

Simplicity 706369

SCREW, Hex Washer Head, 1/4-10 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1727102ASM

HANGER, RH

$30.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1727103ASM

HANGER, LH

$24.99

$

Usually ships in 2-12 days

0
